I NSTALLATION AND W IRING
FC5A MicroSmart PID Module User’s Manual FC9Y-B1283 3-3
Terminal Connection
Caution
• Make sure that the operating conditions and environments are within the specified
values.
• Be sure to connect the grounding wire to a proper ground, otherwise electrical
shocks may be caused.
• Do not touch live terminals, otherwise electrical shocks may be caused.
• Do not touch terminals immediately after power is turned off, otherwise electrical
shocks may be caused.

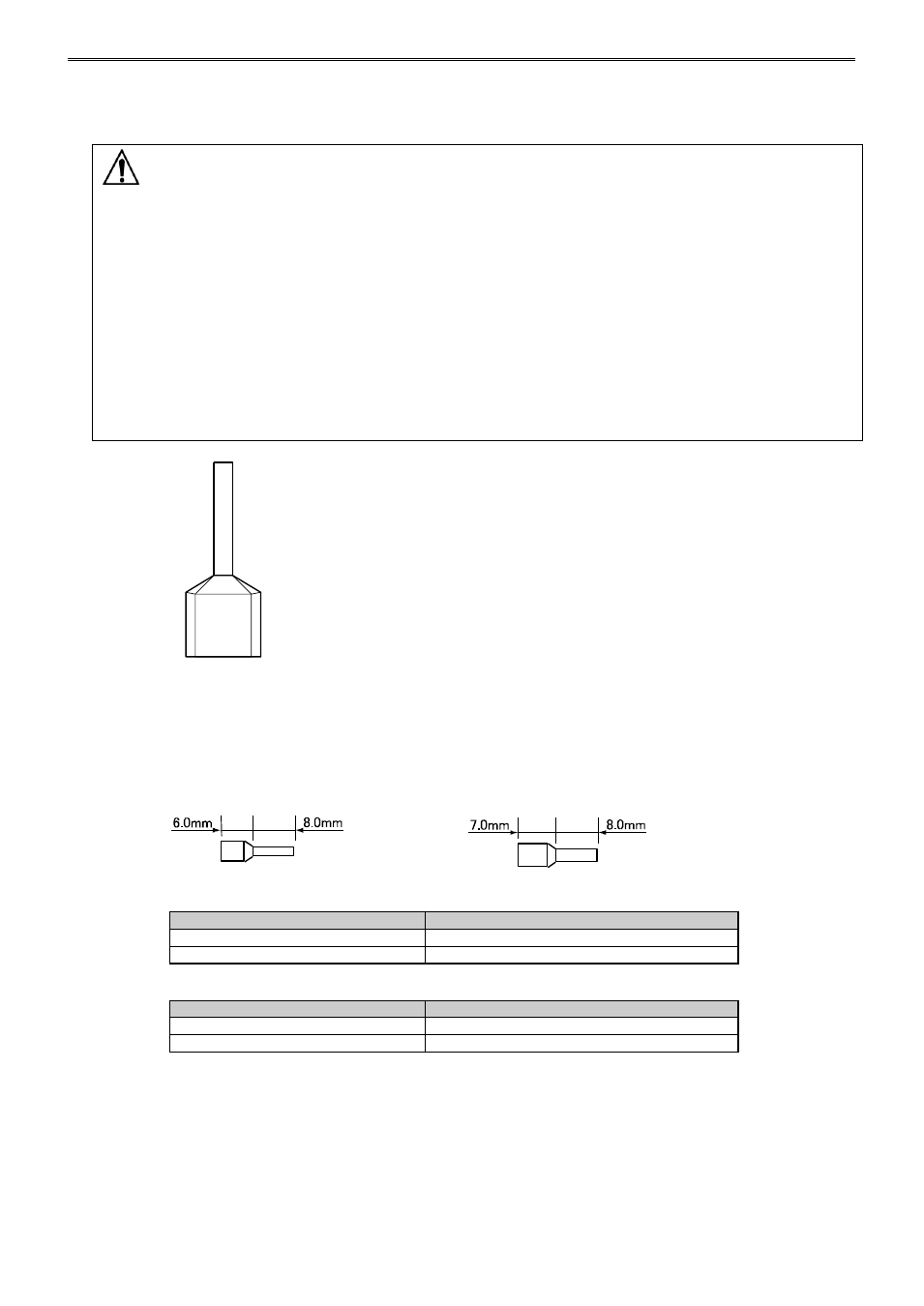

• When using ferrules, insert a wire to the bottom of the ferrule and crimp the ferrule.
• When connecting a stranded wire or two solid wires to single-pole terminal block, be
sure to use a ferrule. Otherwise the wire may slip off the terminal block.
To cramp the following ferrules, use the specified crimping tool (CRIMPFOX ZA 3).
For 1-cable connection For 2-cable connection
For 1-cable connection
Phoenix Type Cable Size
AI 1-8 RD UL1007AWG18
AI 0.5-8 WH UL1015AWG22
For 2-cable connection
Phoenix Type Cable Size
AI-TWIN2x0.75-8 GY UL1007AWG18
AI-TWIN2x0.5-8 WH UL1015AWG22
Note: The above ferrules, crimping tool, and screwdriver are made by Phoenix Contact and are available from Phoenix
Contact.
Ferrule for
Terminal block
