2 How to Install Accessories Inside Your PC Workstation
Installing Mass Storage Devices
Installing a Drive in a Front-Access Shelf
These instructions explain how to install a drive (such as a flexible disk
drive, a CD-ROM drive, CD-RW drive, or a tape drive) in one of the
front-access drive shelves. You should also refer to the manual supplied
with the drive for any additional installation instructions.
Before Installing an
IDE Device Refer to the drive’s installation guide to see if you must set jumpers or if
there is a special installation procedure to follow.
Before Installing a
SCSI Device If you are installing a SCSI device, refer to the section “Before Installing
a SCSI Hard Disk” on page 40 before using the following instructions.
1 Disconnect the computer’s power cord and any telecommunications
cable.
2 Remove the computer’s cover (see page 25).
3 Slide out the power supply to provide better access to the disk drive
cables (see page 29).
4 If installing a drive in a 5.25-inch wide shelf, remove the drive tray
and put it in a safe place.
5 Slide the drive into the shelf.
6 Secure the drive in position using the screws provided with the drive.

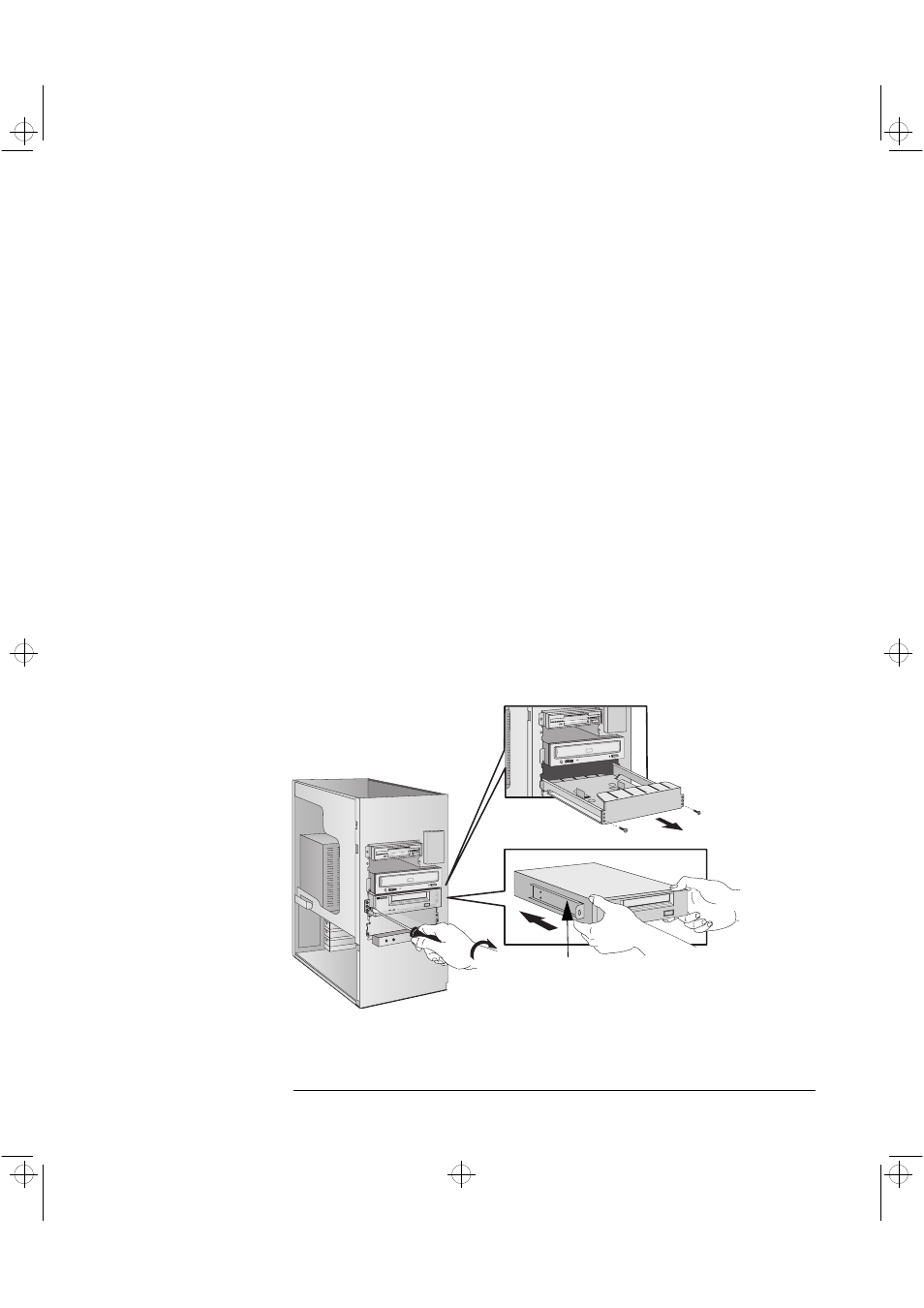

Remove the
drive tray if
installing a
5.25-inch
drive
Slide the drive
into position
Mounting Rails
