2 How to Install Accessories Inside Your PC Workstation
Removing and Replacing the Cover
Replacing the Cover
1 Ensure that you have installed all your accessories and that all
internal cables are properly connected and safely routed.
2 Ensure that the two latches on the front sides of the cover are lifted
up, and that the lock is unlocked.

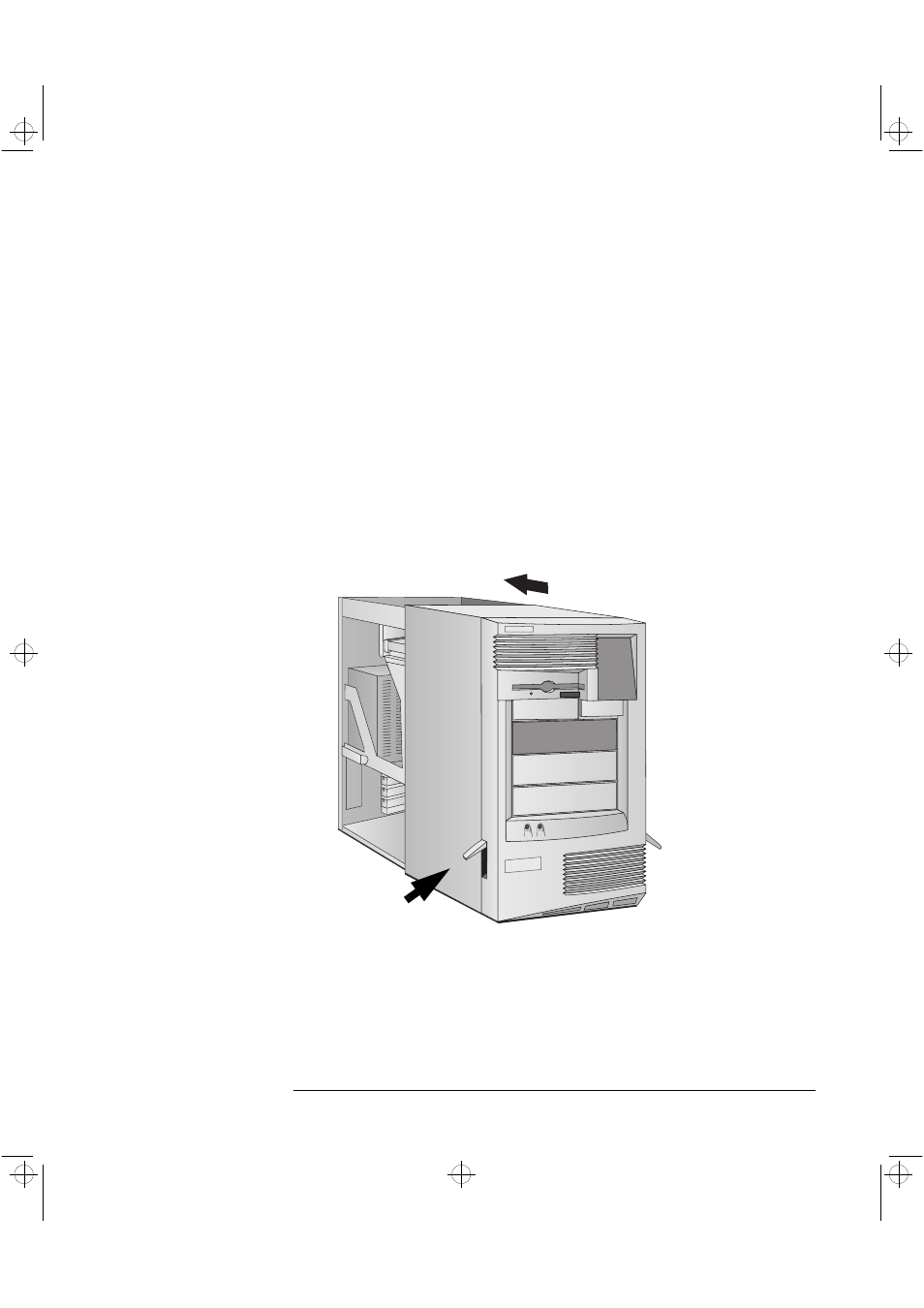

3 Slide the cover onto the computer, making sure that the two guides
at the bottom of the case slide into the two rails at the base of the
computer. Firmly slide the cover backwards into position.
Press here on both sides
of the PC’s cover.
