HP XU User Manual
Page 60
2 How to Install Accessories Inside Your PC Workstation
Installing Mass Storage Devices
44
English

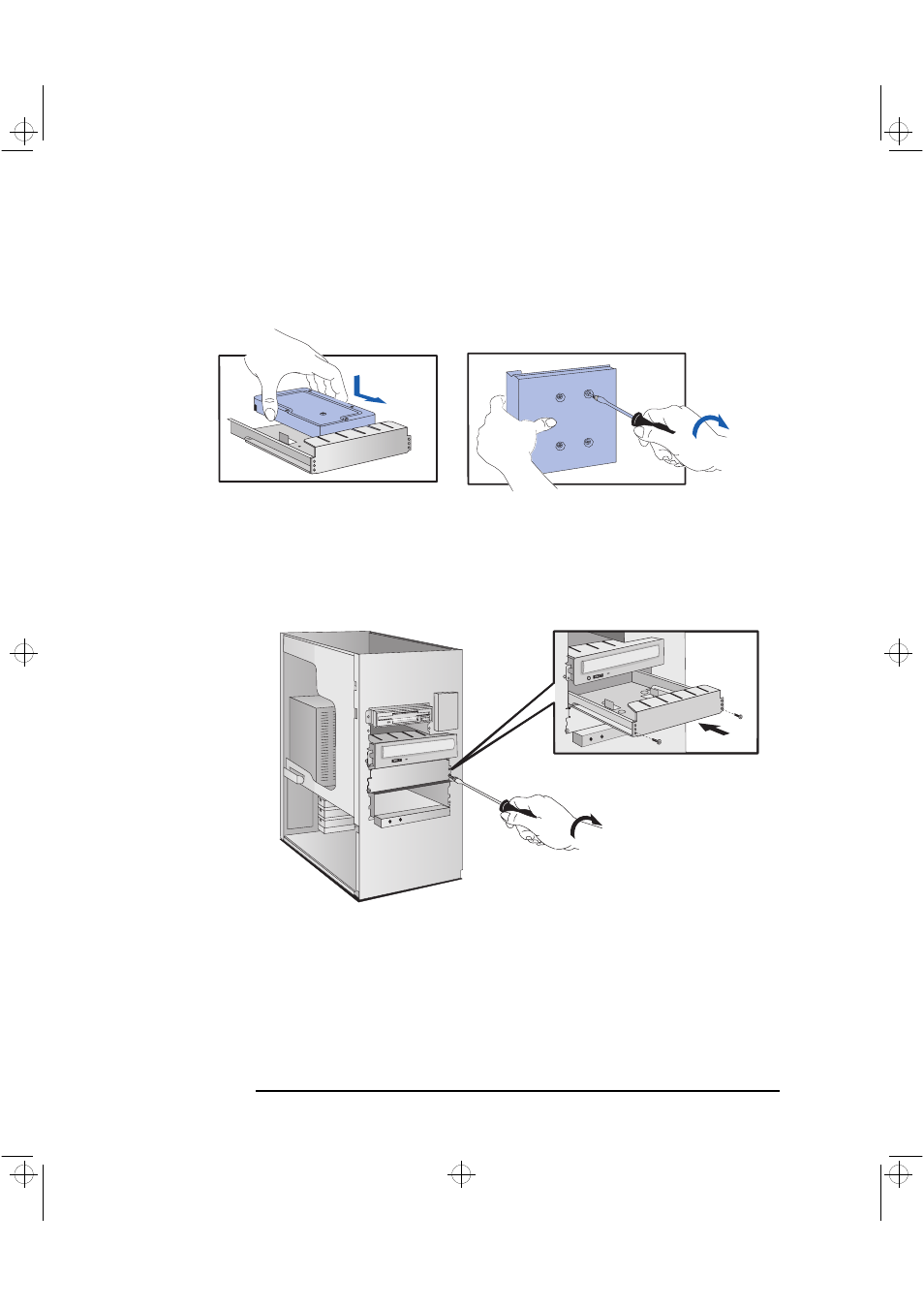

7 Mount the drive on the tray as shown below.
8 Slide the drive tray into the drive shelf and secure it.
Set the drive on
the tray
Fix the drive to
the tray
Slide the drive tray
into the drive shelf
crystal.bk : cryst-2.fb4 Page 44 Monday, March 23, 1998 4:09 AM
