RIGOL Chapter 2 Front Panel Operations
2-34 DG1000Z User’s Guide
8. To Enable the Output: Press Output1 and the backlight turns on. The
fundamental waveform, 2th and 4th order of harmonics will be outputted from
the [CH1] connector according to the current configuration.
9. To Observe the Output Waveform: Connet the CH1 of the DG1000Z to an
oscilloscope using BNC connect cable. The observed waveform from the
oscilloscope is shown in the figure below.

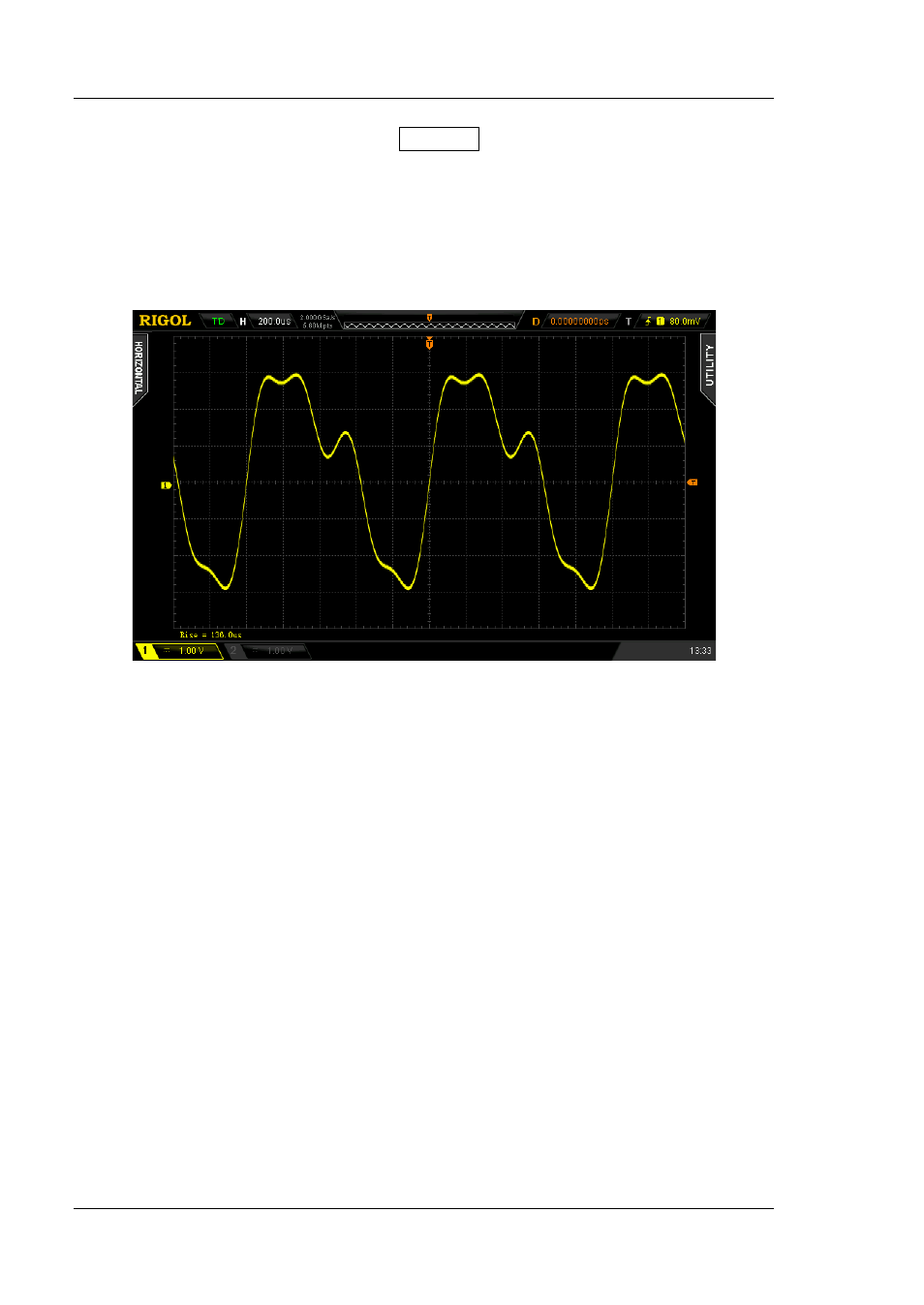

Figure 2-6 Harmonic
