Using your Eicon 1530 38
4. To change the protocol setting, select a new protocol from the drop-down menu.

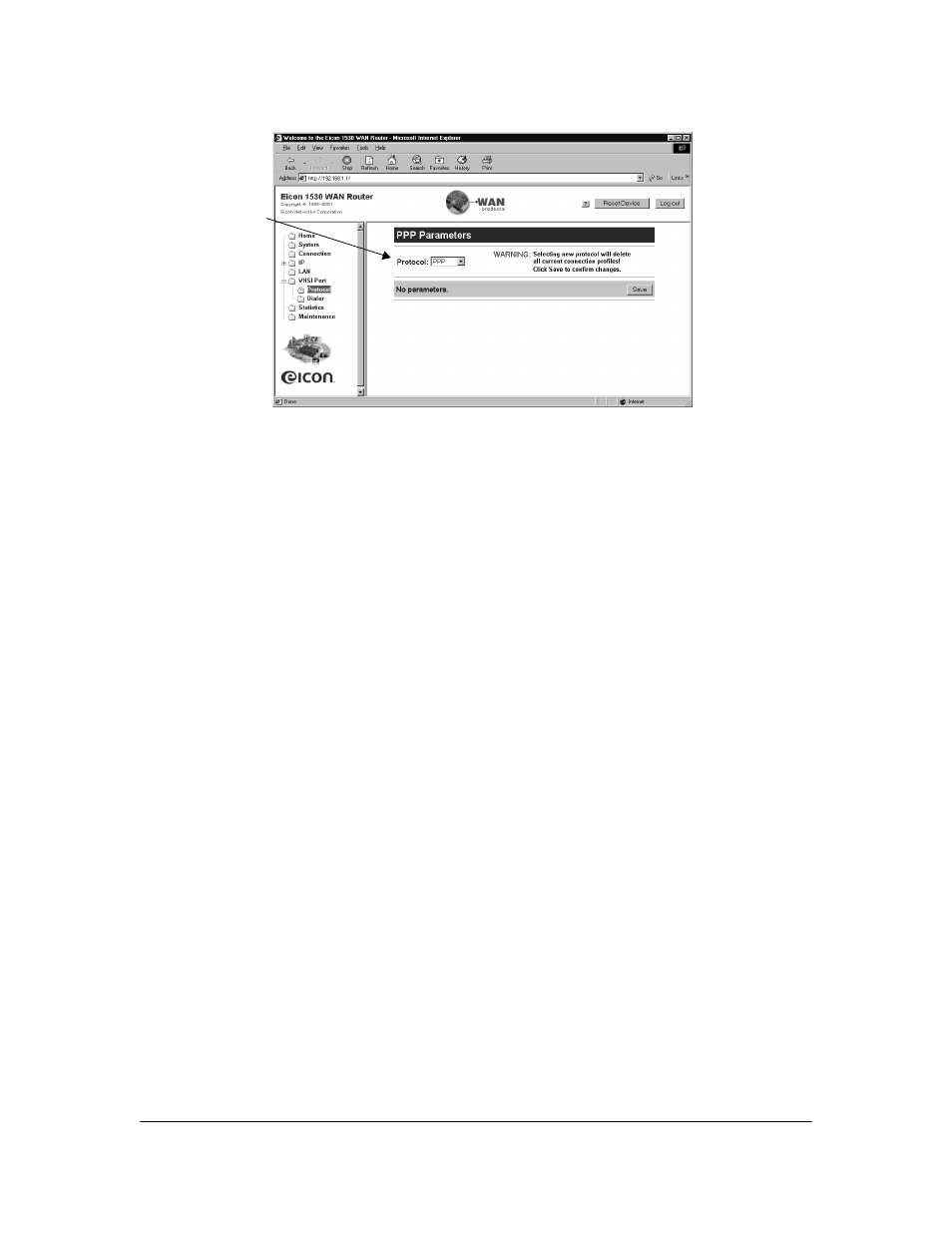

In the following example, the protocol was changed from ‘X.25’ to ‘PPP’.
Note: The ‘Protocol’ page may or may not contain general protocol settings, depending on the protocol
chosen. For example, when the protocol is set to X.25, the protocol page lists several parameters that
can be modified. But when the protocol is set to PPP, no parameters are available.
5. Click the ‘Save’ button to save this setting. You may have to scroll down in order to locate
the button.
If you change your mind and do not want to save your changes, click on any other link (such
as the ‘Home’ link). In doing so, your choice for protocol will be ignored.
Note: Once you click ‘Save’, your connection profile settings are erased. To save your configuration
information before changing the protocol, see
Saving and Resetting Configuration Settings on
page 36.
6. For your settings to take effect, click the ‘Reset’ button at the top of the window. However,
you may wish to modify other VHSI settings first, as well as create connection profiles (see
Creating and Editing Profiles on page 39 for more information).
‘Protocol’ is
now set to
PPP
