Selecting an Interface Cable

105

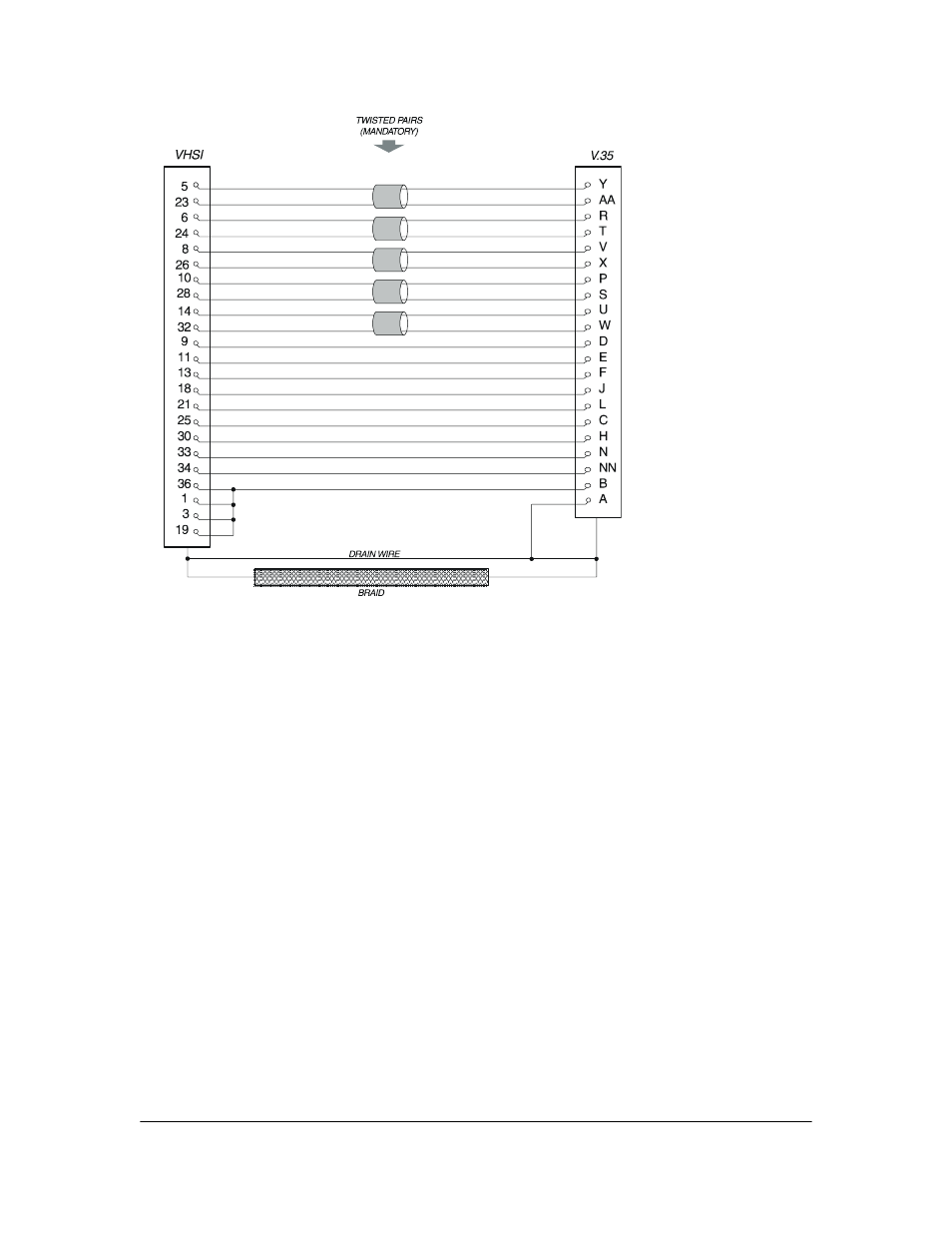

The wiring diagram below shows the connections required to construct a VHSI-V.35 cable.
