Selecting an Interface Cable

103

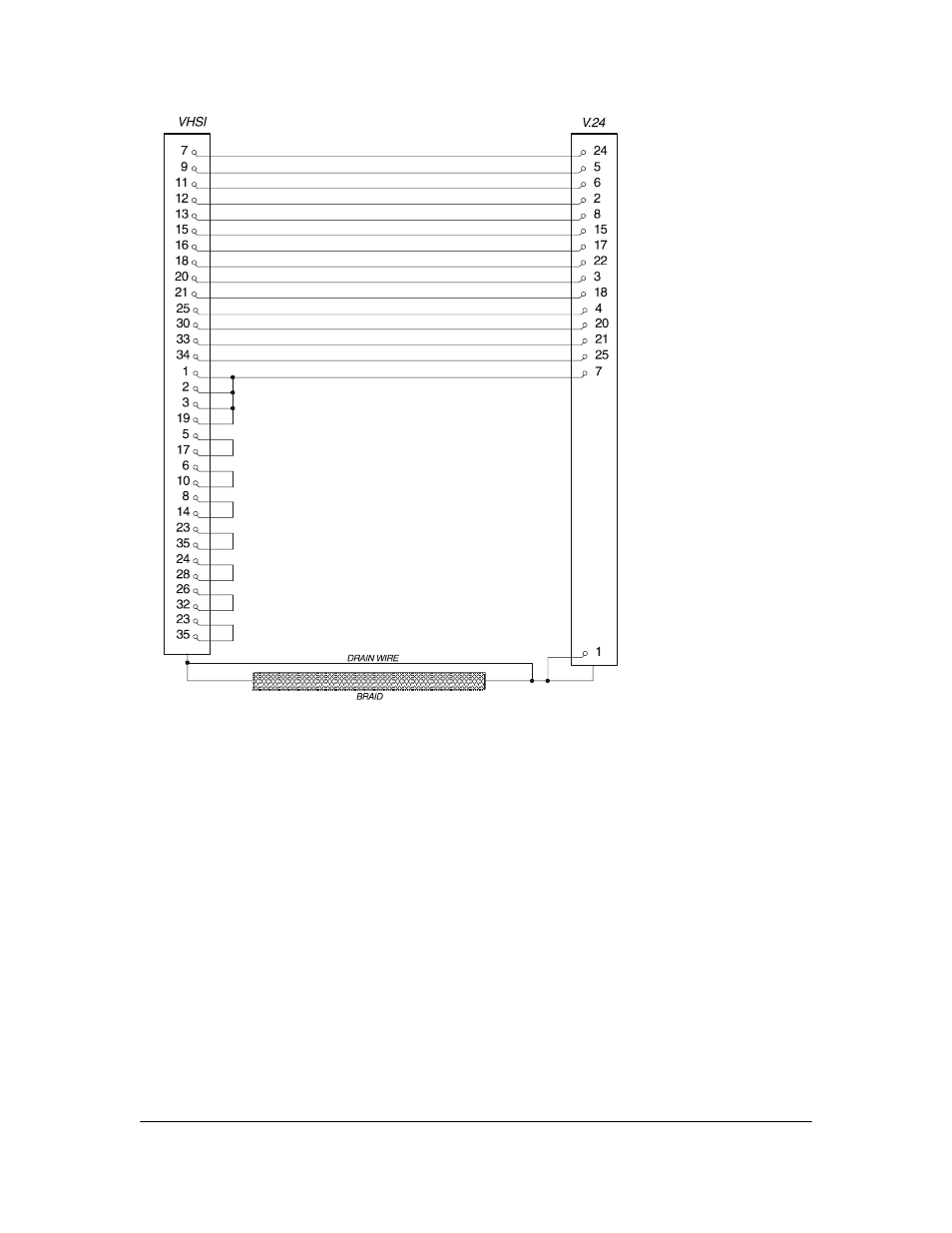

The wiring diagram below shows the connections required to construct a VHSI-V.24 cable.
