Using your Eicon 1530 30
Resetting the Device via the Reset Button

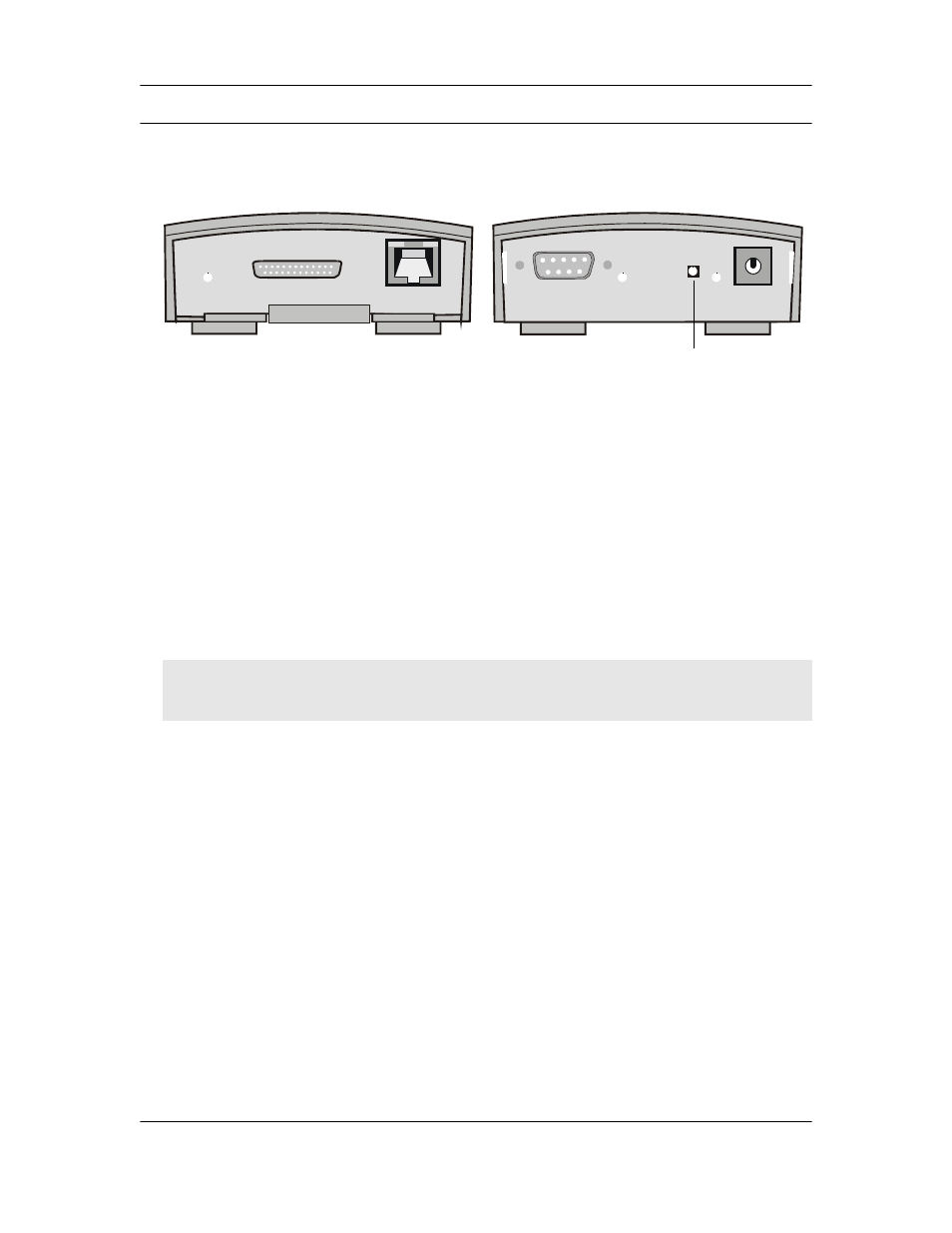

The Reset button for the Eicon 1530 is shown below.
Normal Reset
If you press the Reset button once quickly, you will do a ‘normal’ reset. This reboots the
device, and your settings are left intact.
You can also do a normal reset using the ‘Reset’ button at the top of the browser window when
you are using the web interface.
Reset Settings to Factory Defaults
Warning: Resetting to factory defaults erases all configuration settings.
To reset to factory defaults, hold down the ‘Reset’ button for at least 15 seconds. The AUX light
will turn on, then will go off after 15 seconds, indicating the reset is complete.
You can also reset to factory defaults using the Web-based configuration interface (see Saving
and Resetting Configuration Settings on page 36) as well as the Reset Factory command (see
General Commands on page 108 for more information).
Entering Boot Monitor Mode
If you hold down the reset button for five seconds and less than 15 seconds, you will enter Boot
Monitor mode, which is used for troubleshooting purposes only. Press the ‘Reset’ button once
more to return the device back to normal operation.
Reset
button
Front of Device Back of Device
Note: This procedure will return the default IP address of the Eicon 1530 to 192.168.1.1. If you changed
the IP address of the Eicon 1530 from this default setting, you will need to use the default IP address
192.168.1.1 to access the configuration menu.
