Configuration and Operation
Page 32 Operating Instructions for Powador 30.0-72.0 TL3_EN
EN EN

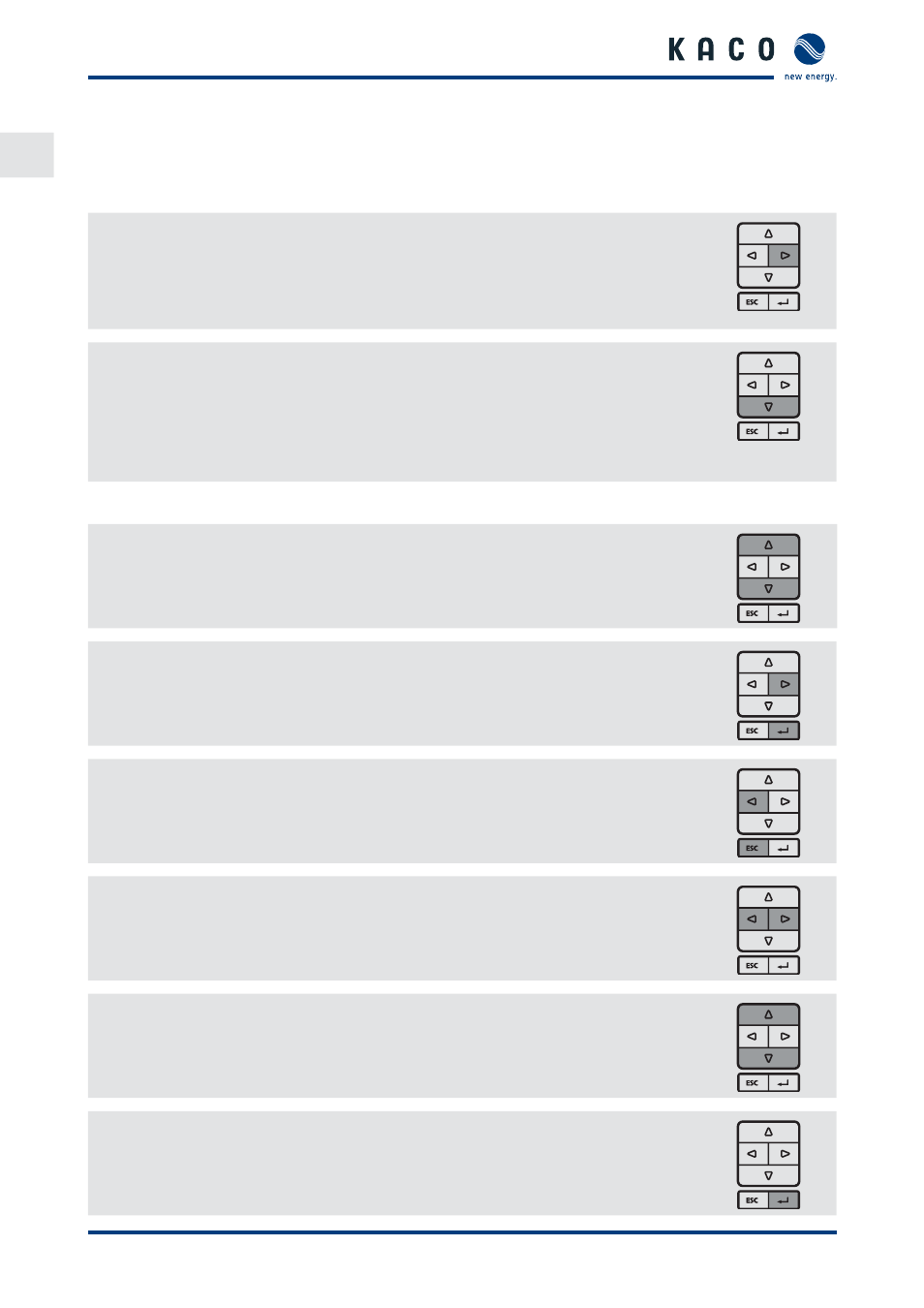

8.1.3 Control buttons
The inverter is operated using the 4-way button and the OK and ESC buttons.
8.1.3.1 Desktop
Opening the menu
↻ The inverter is operating.
↻ The LCD is showing the desktop.
 Press the right arrow button.
» The menu opens up over the desktop from left to right.
Displaying the daily output
↻ The inverter is operating.
↻ The LCD is showing the desktop.
 Press the down arrow button.
» The LCD displays the daily yield in a diagram.
 To return to the desktop, press any button.
8.1.3.2 Inverter menu
Selecting a menu option
↻ You have left the desktop. The inverter displays the menu.
 Use the up and down arrow buttons.
Opening a menu item or a setting
 Use the right arrow button and the OK button.
Jump to the next higher menu level/discard changes
 Press the left arrow button or the ESC button.
Selecting an option
 Use the right and left arrow buttons.
Changing an option/the value of an input fi eld
 Use the up and down arrow buttons.
Saving changed settings
 Press the OK button.
