SMA SSM16-11 User Manual
Page 39
SMA Solar Technology AG
6 Electrical Connection
Installation Guide
SSM16-24-IA-IEN105120
39

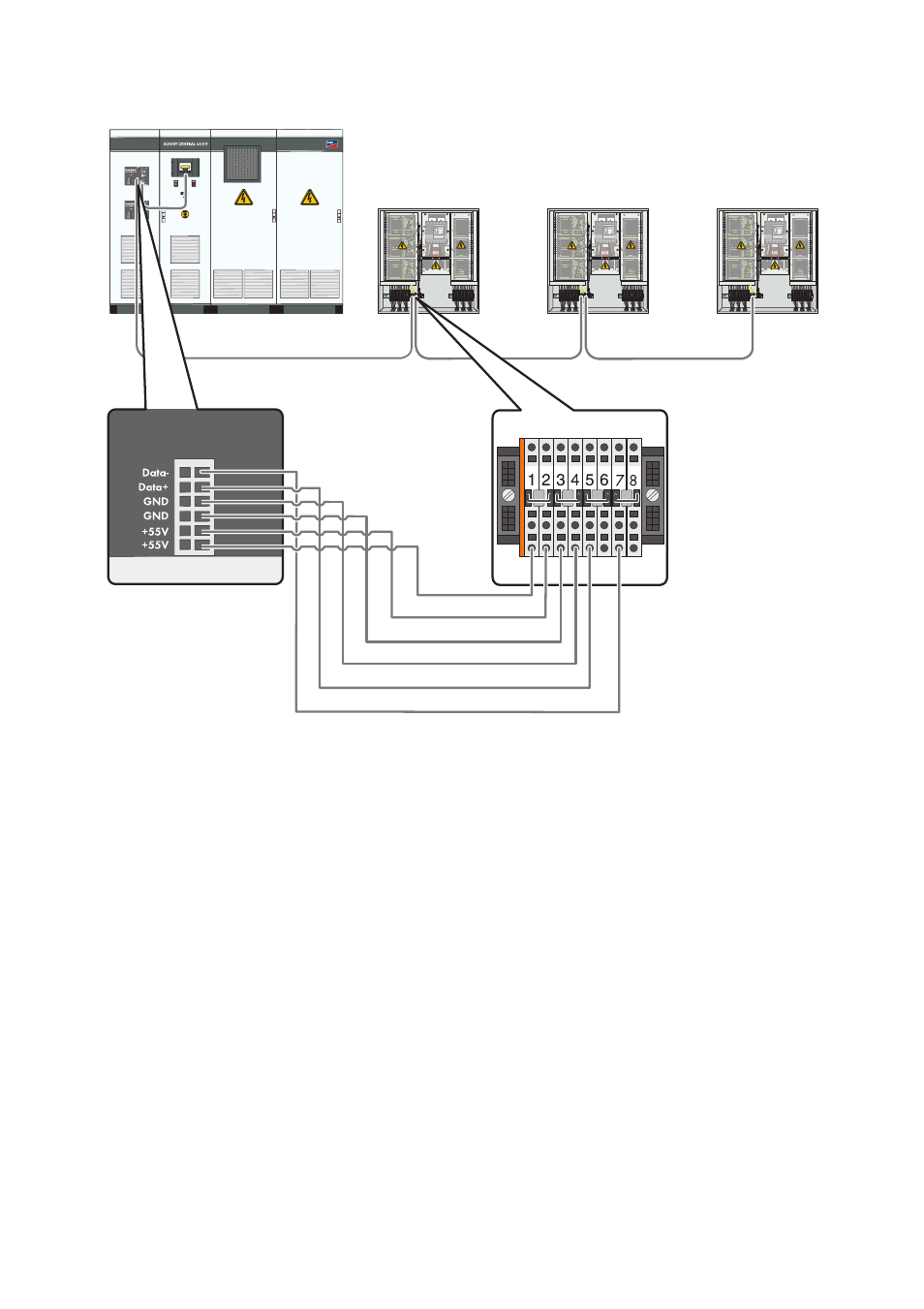

Figure 15: Connection of the data cables between the Sunny Central in the HE-11 series and the
Sunny String‑Monitors
1. Guide the data cable into the Sunny Central (see the installation guide for the Sunny Central in
question).
2. Strip 8 mm from each wire in the data cable.
3. Remove the sticker on the connection area of the hub.
4. Connect the wires of the data cable to the connection terminals on the hub in accordance with
the Sunny Central circuit diagram. Observe the terminal allocation of the data cable.
