2 mounting the sunny string-monitor, Mounting the sunny string-monitor – SMA SSM16-11 User Manual
Page 27
SMA Solar Technology AG
5 Assembly
Installation Guide
SSM16-24-IA-IEN105120
27
5.2.2 Mounting the Sunny String-Monitor
Required Material:
• 4 screws with a diameter of 8 mm. Consider the wall properties when choosing the screws.
• 4 washers
• 4 screw anchors. Consider the wall properties when choosing the screw anchors.

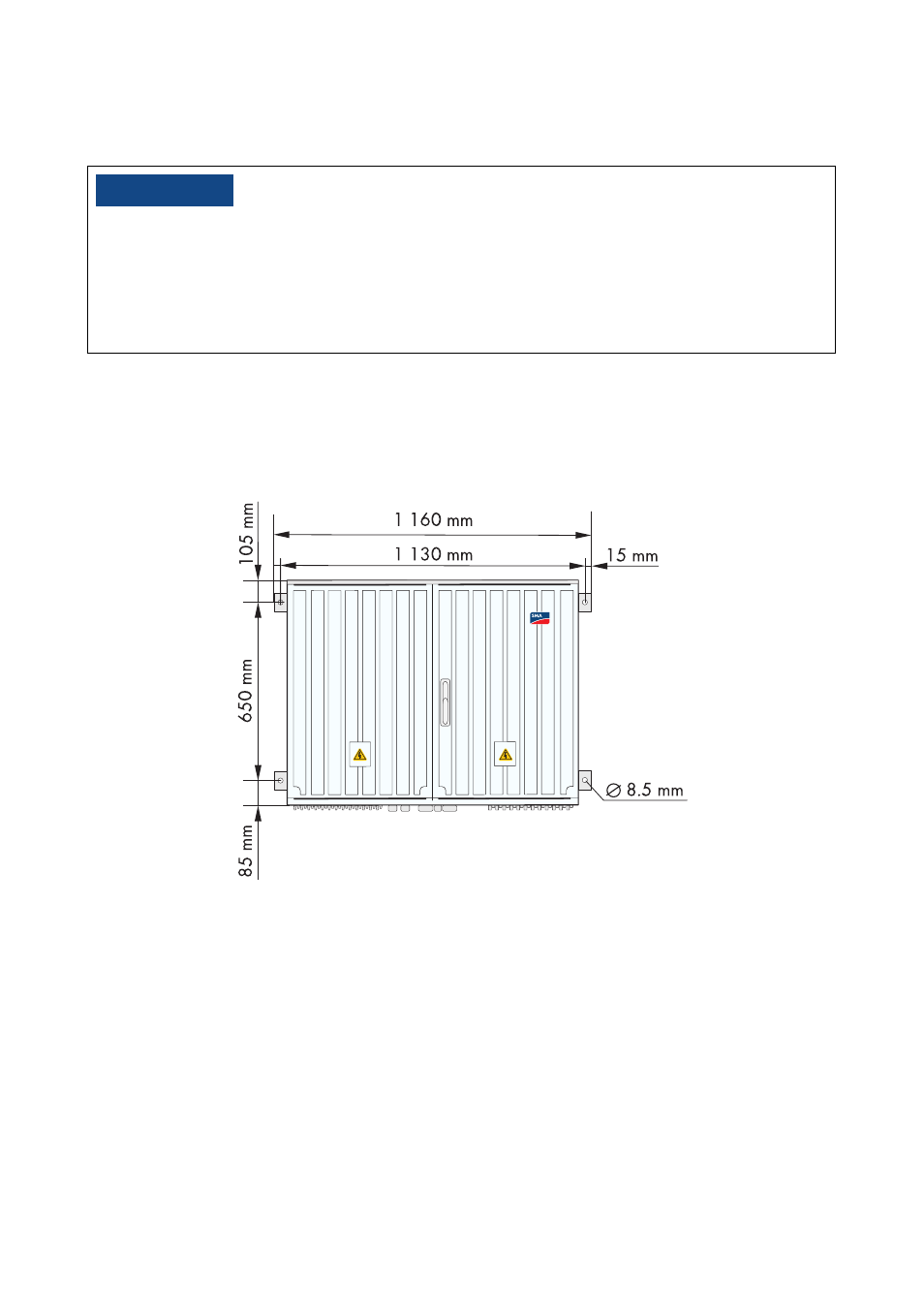

Figure 8: SSM 16-11 dimensions
/05*$&
Damage to the cable glands and plug connections due to improper transport and
installation.
The cable glands and plug connections protrude from the enclosure.
• When transporting and mounting the Sunny String-Monitor, ensure that the cable glands and
plug connections are not damaged.
