Programming: Multiple Axis Machining
12.2 The PLANE Function: Tilting the Working Plane (Software Option 1)
12
396
TNC 320 | User's Manual
HEIDENHAIN Conversational Programming | 3/2014

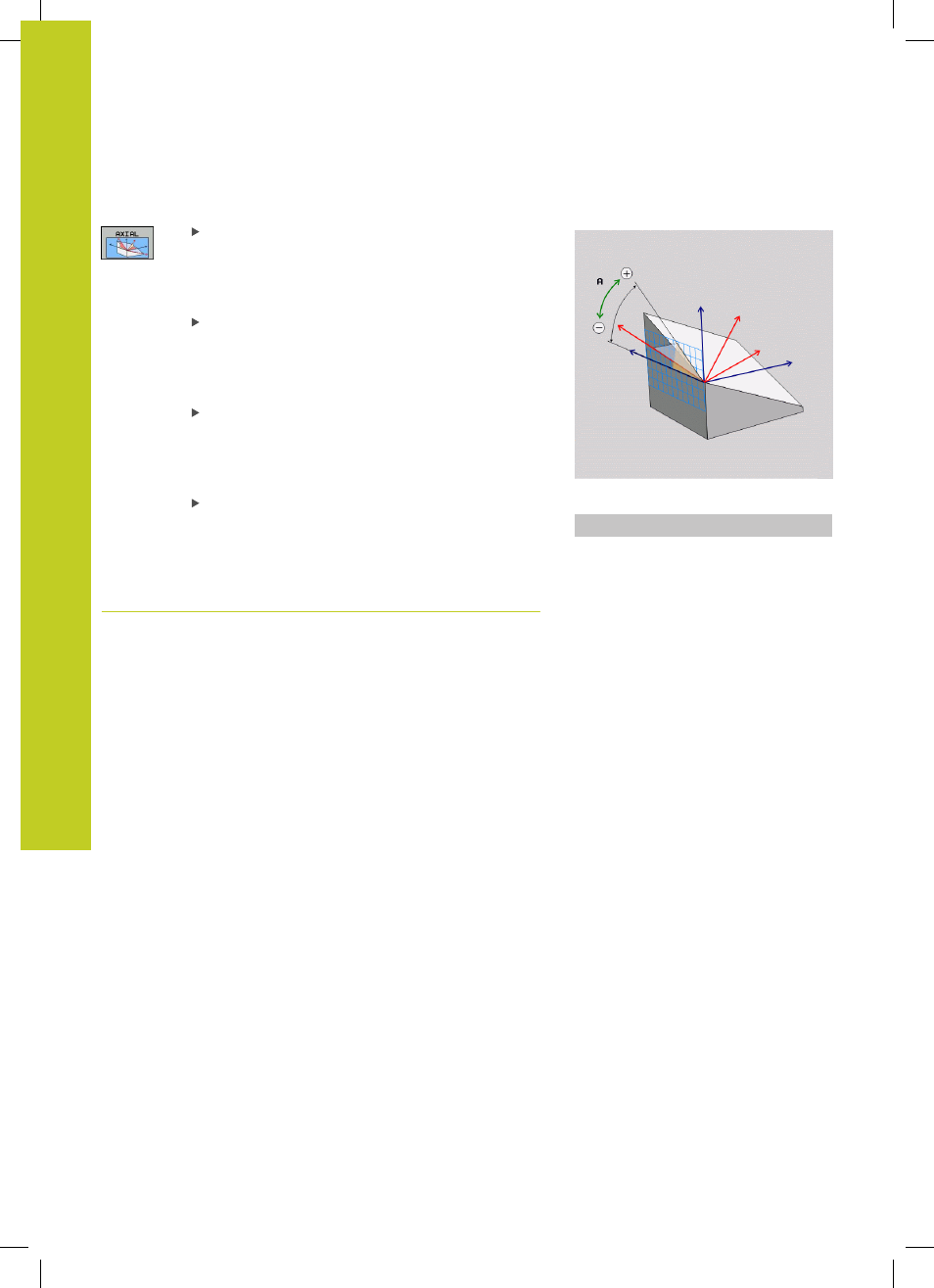

Input parameters
Axis angle A?: Axis angle to which the A axis
is to be tilted. If entered incrementally, it is the
angle by which the A axis is to be tilted from its
current position. Input range: –99999.9999° to
+99999.9999°
Axis angle B?: Axis angle
to which the B axis
is to be tilted. If entered incrementally, it is the
angle by which the B axis is to be tilted from its
current position. Input range: –99999.9999° to
+99999.9999°
Axis angle C?: Axis angle
to which the C axis
is to be tilted. If entered incrementally, it is the
angle by which the C axis is to be tilted from its
current position. Input range: –99999.9999° to
+99999.9999°
Continue with the positioning properties, see
"Specifying the positioning behavior of the PLANE
function", page 397
Abbreviations used
Abbreviation Meaning
AXIAL In the axial direction
NC block
5 PLANE AXIAL B-45 .....
