Programming: Special functions
11.6 Freely definable tables
11
374
TNC 320 | User's Manual
HEIDENHAIN Conversational Programming | 3/2014

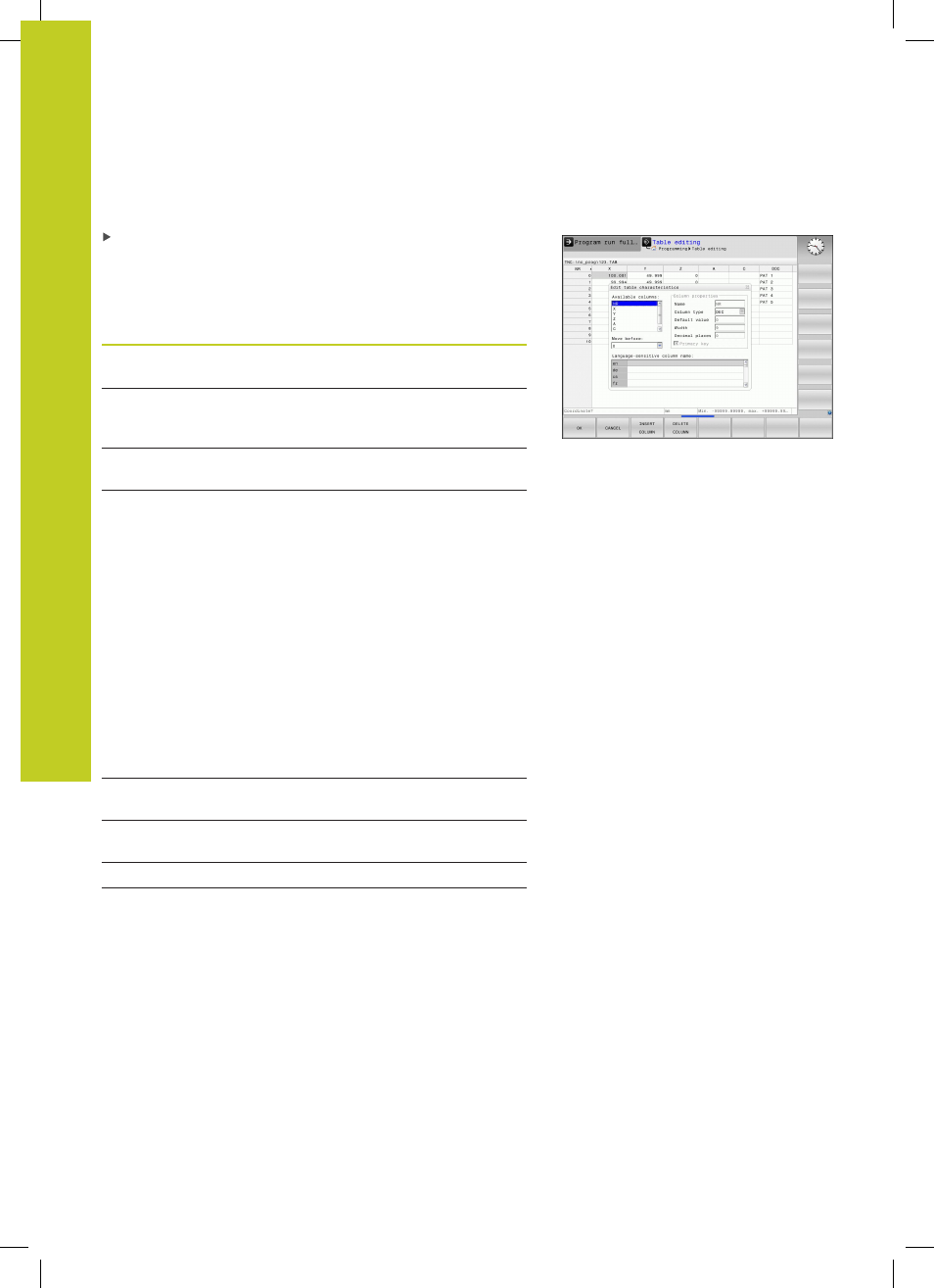

Editing the table format
Press the EDIT FORMAT soft key (2nd soft-key level): The TNC
opens the editor form, in which the table structure is shown.
The meanings of the structure commands (header entries) are
shown in the following table.
Structure
command Meaning
Available
columns:
List of all columns contained in the
table
Move before: The entry highlighted in Available
columns is moved in front of this
column
Name Column name: Is displayed in the
header
Column type TEXT: Text entry
SIGN: Sign + or -
BIN: Binary number
DEC: Decimal, positive, complete
number (cardinal number)
HEX: Hexadecimal number
INT: Complete number
LENGTH: Length (is converted in inch
programs)
FEED: Feed rate (mm/min or 0.1 inch/
min)
IFEED: Feed rate (mm/min or inch/min)
FLOAT: Floating-point number
BOOL: Logical value
INDEX: Index
TSTAMP: Fixed format for date and time
Default value Default value for the fields in this
column
Width Width of the column (number of
characters)
Primary key First table column
Language-
sensitive column
name
Language-sensitive dialogs
