25

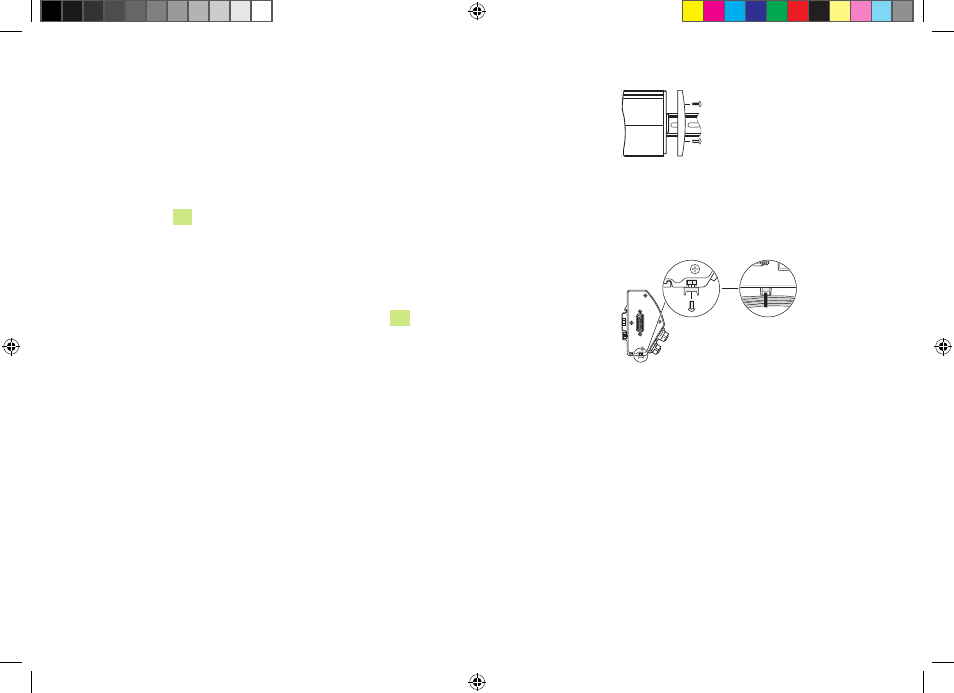

Installing right end cover
Left and right end cover kits are provided with each power supply module for covering

open module ends. The left end cover is mounted on the first power supply module in the

chain.
To install the right end cover:

X

X

Insert the right end cover into the right side of the last module in the chain

X

X

Insert end cover screws through the end cover mounting holes and into the end cover

screw holes 22 on the module

X

X

Using a cross-head screwdriver, tighten the screws

Installing cable mounting hardware
A cable mounting hardware kit is provided with each module for routing cables. Each kit

contains two sets of mounting hardware.

X

X

Insert the M3 hex nut into the cable mounting slot 23 on the bottom of the module

X

X

Insert the M3 screw through the cable tie holder and fasten to the M3 hex nut using a

cross-head screwdriver

X

X

Insert the cable tie through the cable tie holder and fasten cables
