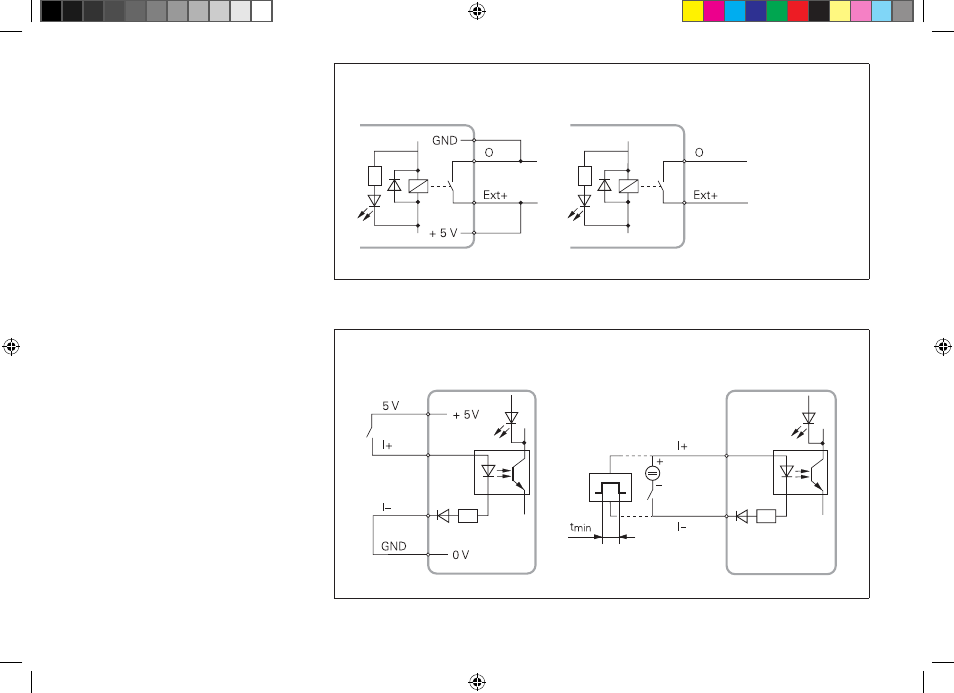

Relay outputs

Internal DC 5 V

External power

Specifications
U

L

† 30 V DC/AC

I

L

† 0.05 A

t

D

† 25 ms

Switching inputs

Internal DC 5 V

External power

Specifications
0 V † U

L

† 1.5 V

4.5 V † U

H

† 26 V

I

L

† 25 mA

t

min

‡ 100 ms
