5. Mounting
The following items are included with the product:
• MSE 1xxx module
• Installation Instructions
• Cable mounting hardware kit
• Female M8 connector, included with MSE1401 (ID 747507-02)
• Male M8 connector, included with MSE 1401 (ID 747507-02): Qty. 2
MSE 1000 modules are designed to be mounted on a standard 35 mm, DIN EN 50022
rail in an electrical cabinet or on a mounting stand (accessory). The individual modules are
plugged onto each other and fixed together with a lock creating a module chain.
In its basic configuration, the MSE 1000 consists of a power supply module and a base
module. A base module provides data interface connections for foot switch control and
network communications in addition to encoder connections. It can be expanded by
further modules as needed. In all, up to 250 axes or channels can be configured.

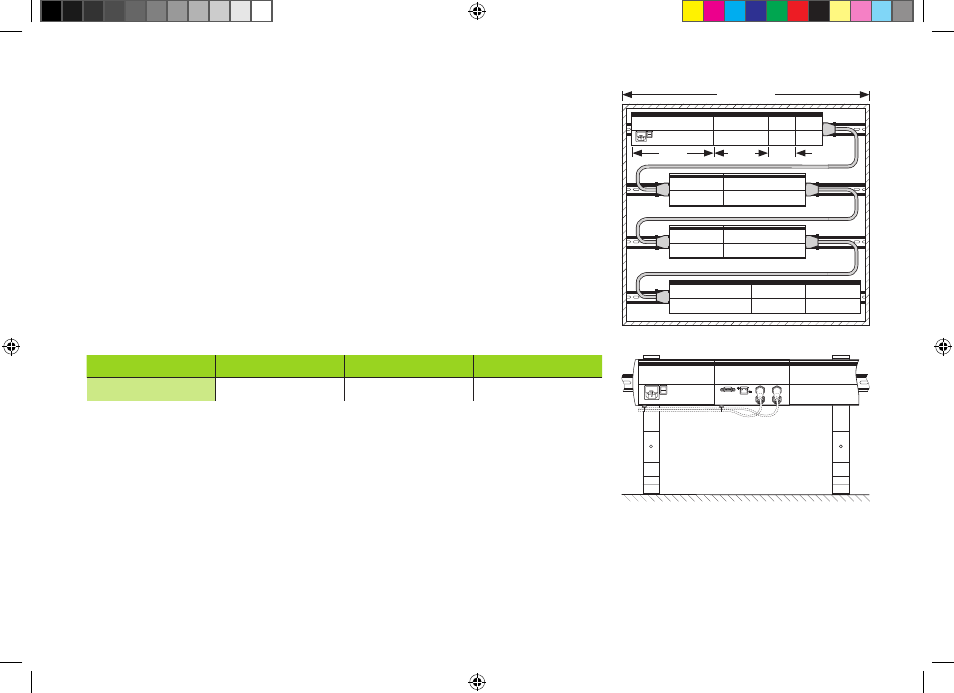

Module sizes Size 1 Size 2 Size 3
Width 53 mm 106 mm 159 mm
19” / 483 mm
Size 3 Size 2 Size 1
19”electrical cabinet mounting
Mounting stand (accessory)
