Mounting RAID in a Cabinet

RAID Instructions

2-5

g. Slide the two clip nuts onto each front channel as shown below.

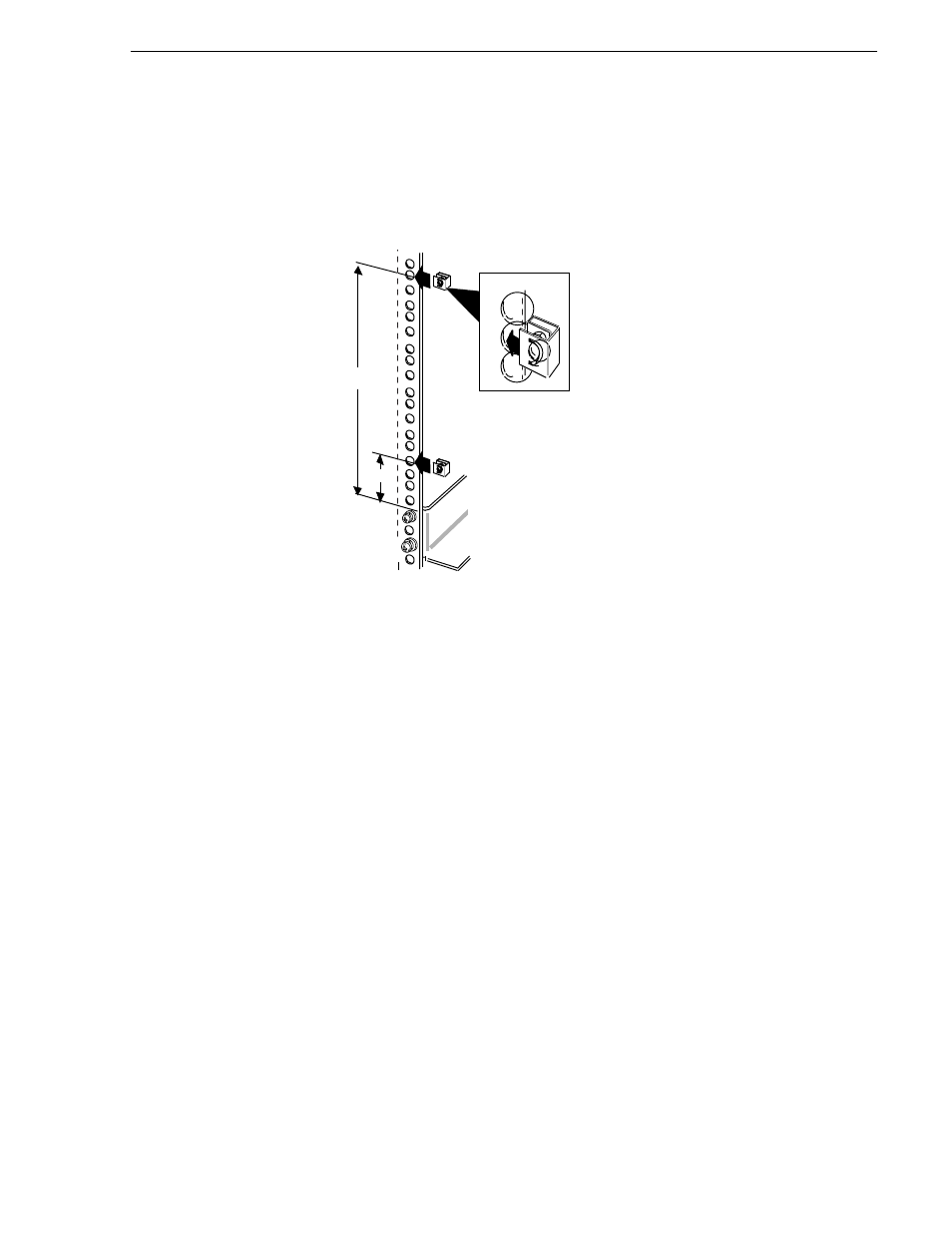

Attaching the clip nuts

You are now ready to install the chassis in the cabinet

Rail

Counting from the top of the rail, slide
clip nuts onto the 4th and 17th holes
of each front channel.
