Grass Valley UniConfi NVISION Series v.2.1 User Manual
Page 84
72
Connections Window
Connections Window

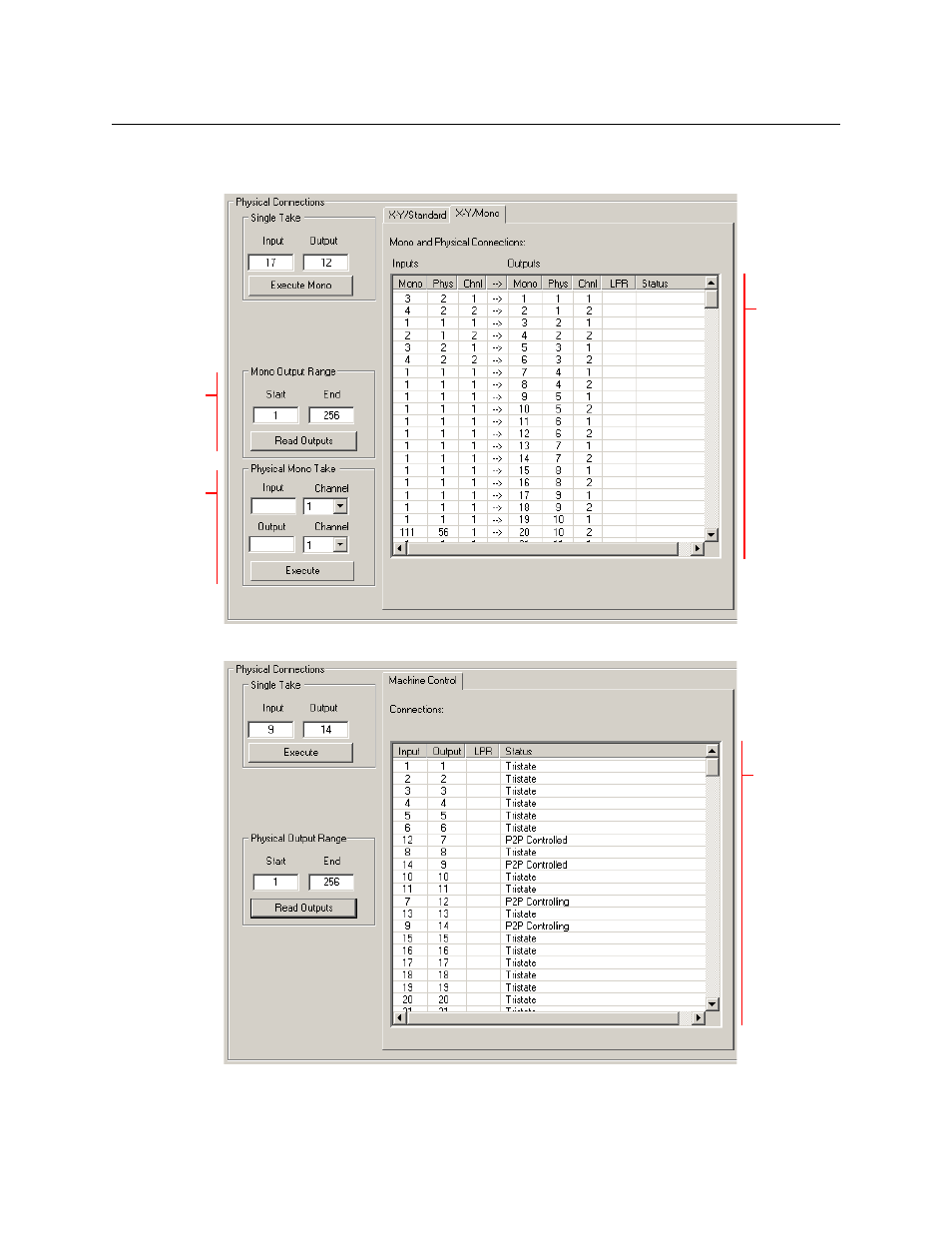

The window’s fields might differ slightly for other routers. For example, the audio routers
(NV7256 and NV7512) have an additional tab for an XY/mono view of the crosspoint list:
Routers that support machine control have a machine control tab:
The controls for machine control views are the same as for XY/standard views.
Mono
Output
Range
Mono
Take
Mono
Diagnostic
Crosspoint
List
Machine
Control
Diagnostic
Crosspoint
List
