84

CameraMan Installation and Operation Manual

Appendix J — CPT-2018-A3DS On-Screen Menus

User Mode Submenus Overview

Iris, Shutter, Gain Settings Overview

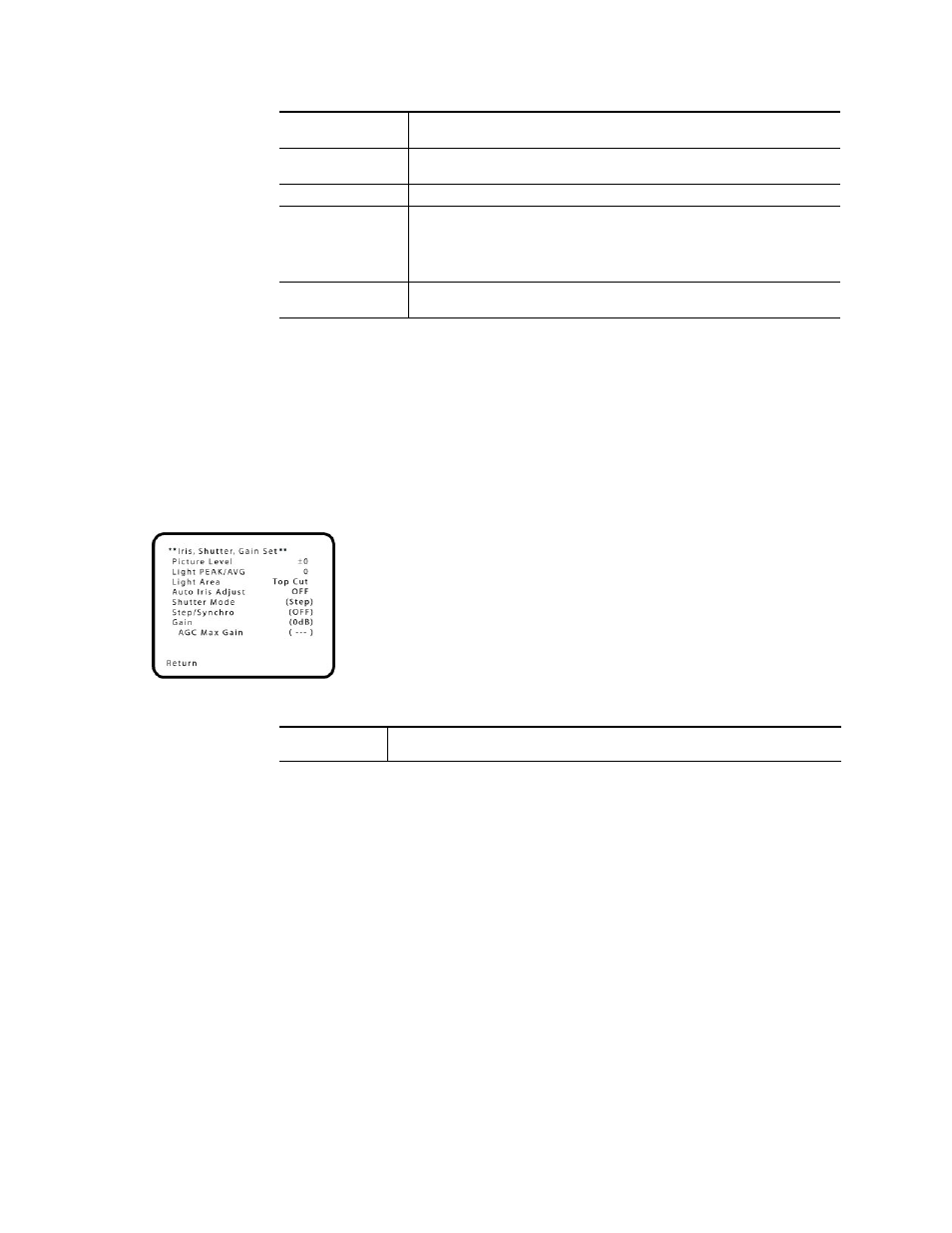

Figure 58. Iris, Shutter, Gain Setting Submenu

Baud Rate

(1200bps, 2400bps, 4800bps, 9600bps) Select a communication speed in controlling the
camera from the computer.

Component

This enables RGB, Y/Pr/Pb or Y/C to be selected as the component signals which are to be
output from the I/F REMOTE connector.

Aspect Ratio

Aspect ratio can be selected from 16:9 or 4:3.

Fan SW

OFF: Select this setting to stop the fan when its operating sound is found to be bothersome
in a studio or other such environment.
Auto: The temperature is detected automatically, and the fan starts operating when the tem-
perature exceeds approx. 95

o

F (35

o

C). Under normal circumstances, the “Auto” setting is

used.

Language

English: Menu screen is displayed in English.
Japanese: Menu screen is displayed in Japanese.

Table 31. Iris, Shutter, Gain Settings

Picture Level

(-50 to +50) Convergence level of AUTO IRIS, AUTO GAIN UP, ELC
can be adjusted.
