DB25 Pinouts
340

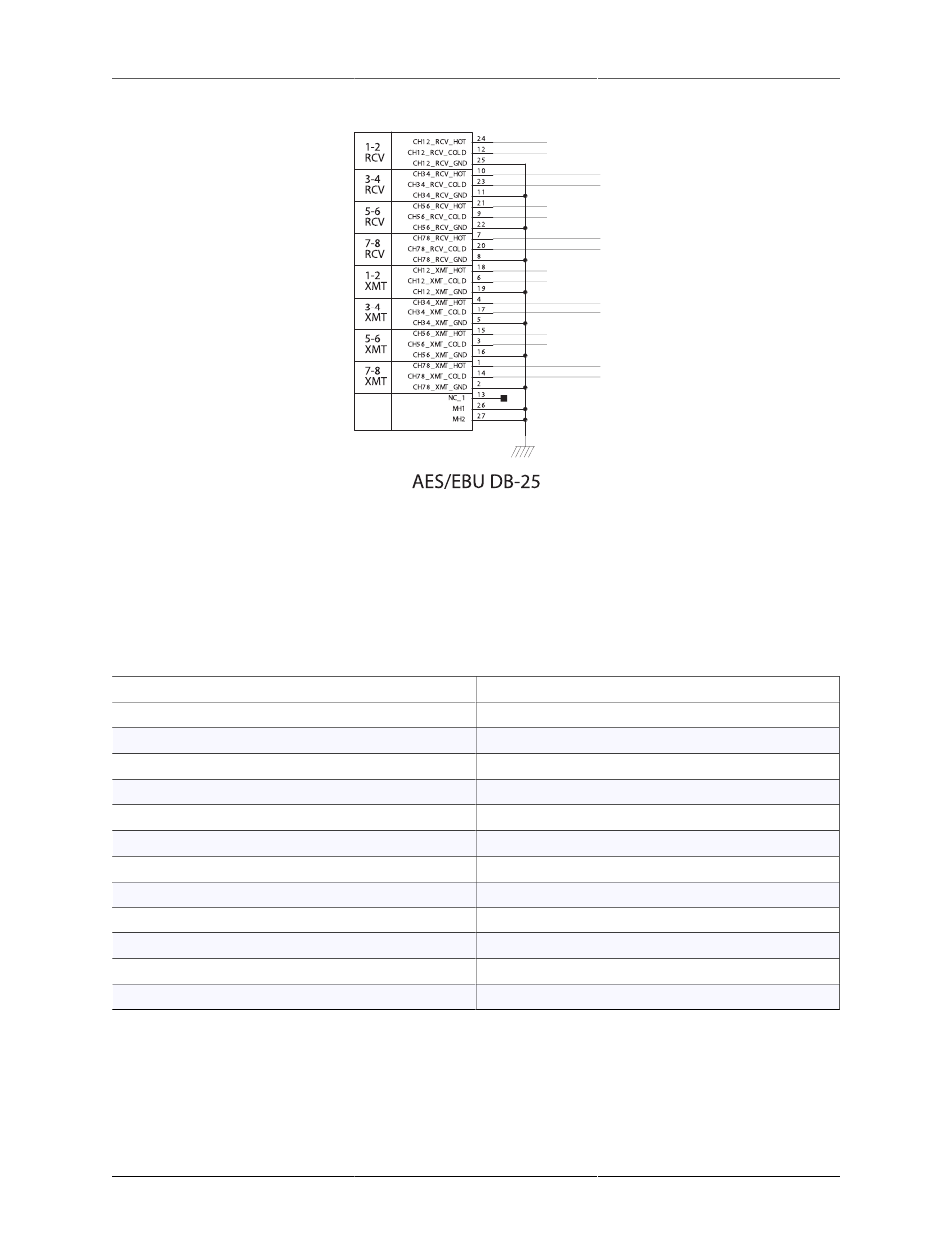

Figure G.2: AES I/O DB25 pinouts
Wiring pinout for XLR:
• HOT: Pin 2
• COLD: Pin 3
• GND: Pin 1
Table G.1. AES crossover cable pinout
DB25 #1 DB25 #2
24 18
12 6
25 19
10 4
23 17
11 5
21 15
9 3
22 16
7 1
20 14
8 2
