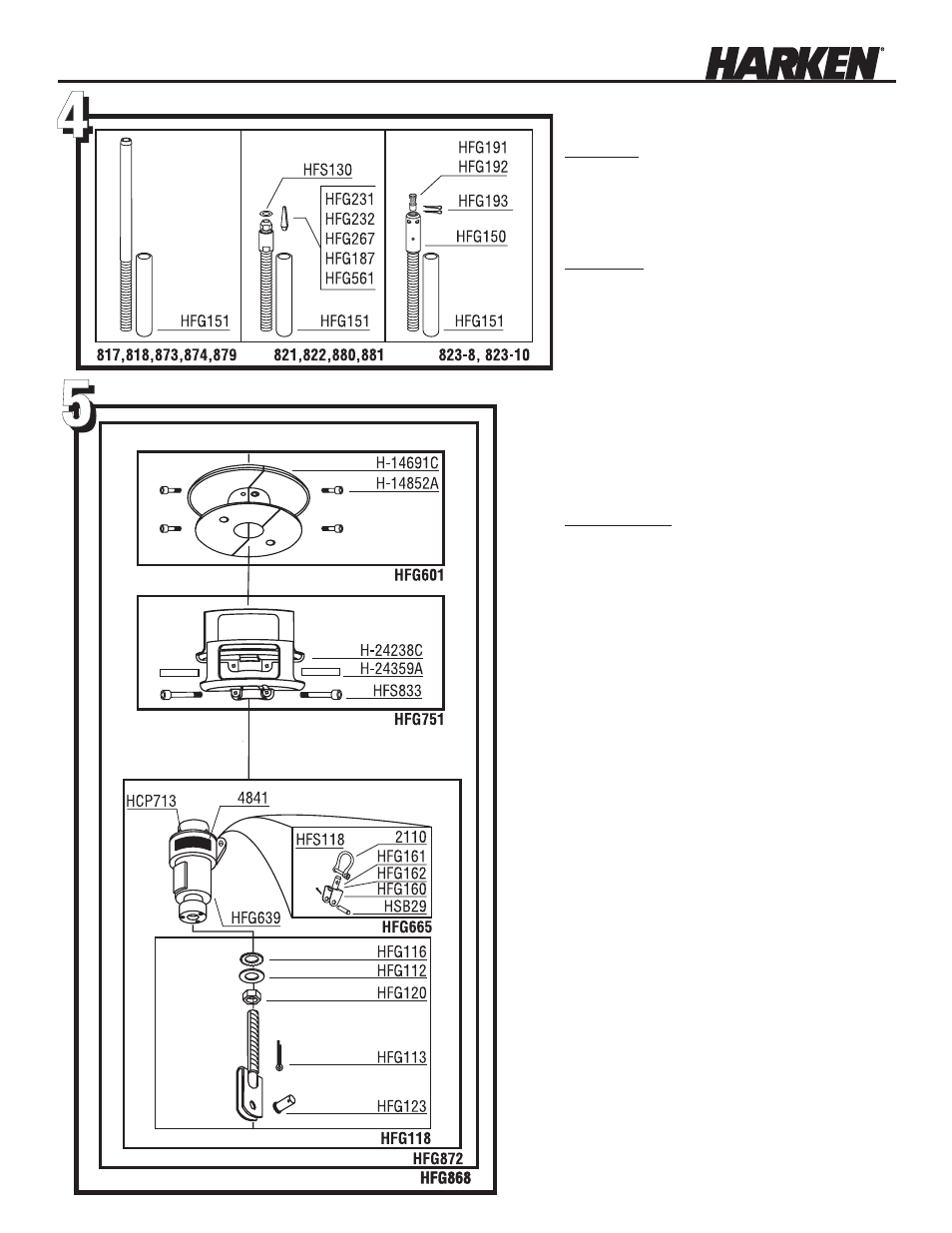

4
- Studs & Components
Swage Studs
HFG151
Stud-Cap -
1
/
2
" ID x 4" Red
• 817
Stud -
1
/
4
" Swage
• 818
Stud -
9
/
32
" Swage
• 873
Stud - 6 mm Swage
• 874
Stud - 7 mm Swage
• 879
Stud - 8 mm Swage Unit 1
Sta-Lok Studs
HFG151
Stud-Cap -
1
/
2
" ID x 4" Red
• 821
Stud -
1
/
4
" Sta-Lok
HFG231
Wedge -
1
/
4
" Sta-Lok
HFS130
Washer -
3
/
8
" .068 x .813 x .406 18-8
• 822
Stud -
9
/
32
" (7 mm) Sta-Lok
HFG232
Wedge -
9
/
32
" (7 mm) Sta-Lok
HFG267
Wedge - 7 mm Dyform
HFS130
Washer -
3
/
8
" .068 x .813 x .406 18-8
• 880
Stud - 6 mm Sta-Lok
HFG187
Wedge - 6 mm Sta-Lok
HFS130
Washer -
3
/
8
" .068 x .813 x .406 18-8
• 881
Stud - 8 mm Sta-Lok Unit 1
HFG561
Wedge
5
/
16
" (8 mm) Sta-Lok
HFS130
Washer -
3
/
8
" .068 x .813 x .406 18-8
Rod Adapter Studs
HFG151
Stud-Cap -
1
/
2
" ID x 4" Red
• 823 -8
Stud -8 Rod Adpt w/Nosepiece
HFG150
Stud - Main Body
HFG191
Nosepiece -8
HFS193
Cotter Pin -
3
/
32
" x 1" 18-8
• 823 -10
Stud -10 Rod Adpt w/Nosepiece
HFG150
Stud - Main Body
HFG192
Nosepiece -10
HFG193
Cotter Pin -
3
/
32
" x 1" 18-8
5
- Drum Assembly & Components
HFG868
Drum Assembly - Complete
• HFG601
Spool Assembly - Complete
H-14691C Spool Assembly Half
H-14852A Fastener - M6 x 1.00-6G 316
(order 4)
• HFG751
Guard Assembly
• H-24238C Line Guard
(order 2)
• H-24359A Mylar Guard Clamp Shim
(order 2)
• HFS833
Fastener - M8 x 1.25 GC Screw
(order 2)
• HFG872
Hub - w/Lower Toggle
HFG118
Lower Toggle
HFG112
Flat Washer - Lower Toggle
HFG113
Cotter Pin
HFG116
Lockwasher - Toggle
HFG120
Lock Nut
HFG123
Clevis Pin - Lower Toggle
HFG639
Hub - w/o Lower Toggle
4841
Label - Tack Swivel
HCP713
SS Helicoil - M5 x 0.8 x 5
• HFG665
Tack Shackle Assembly
2110
Shackle - (6 mm)
1
/
4
" Bow
HFG160
Swivel Bracket
HFG161
Swivel Pin -
13
/
32
"
HFG162
Plastic Washer
HFS118
Pin -
1
/
16
" x .500 18-8 Cotter
HSB29
Clevis Pin -
1
/
4
" x 1.000"
