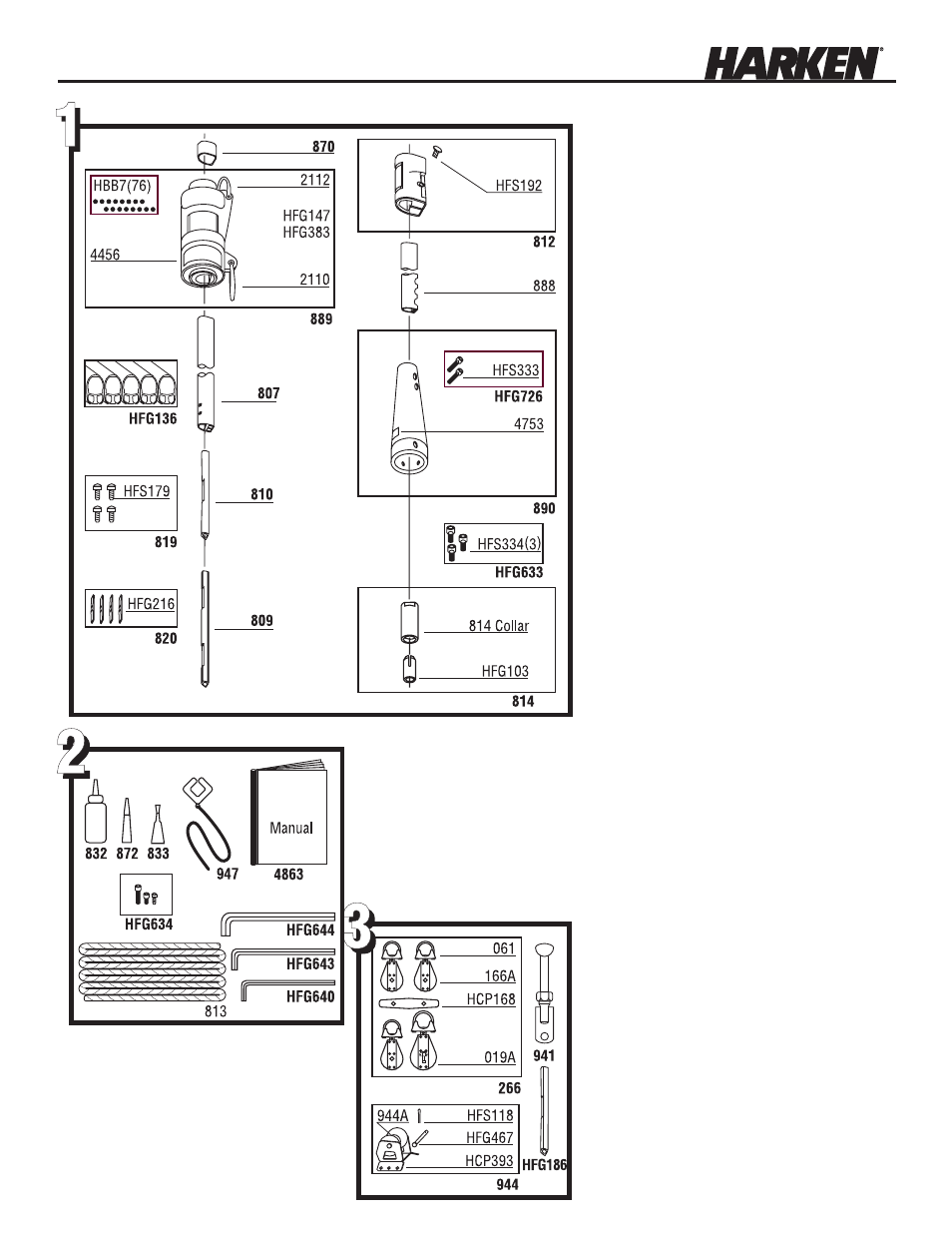

Harken 882 MKIII Jib Reefing & Furling - Manual (Page 75)

1
- Upper Assembly & Components
• 807 Extrusion - 7' Luff
• 809 Connector - 8.890" Bottom
• 810 Connector - 7"
• HFG186 Split Top Connector (Not Shown, Optional)
• 812 Feeder
HFS192 Fastener - 10-32 x 3 /
8
" 18-8 Stl Ov
• 814 Locking Collar - w/Insert
814Collar Locking Collar
HFG103 Plastic Insert
• 819 Connector Screw Set (30)
HFS179 Fastener - 8 /
32
" x .156" Stl Fi #6
• 820 Wedge Set (17)
HFG216 Connector Wedge
• 870 Trim Cap
• 888 Extrusion - 2' Luff
• 889 Halyard Swivel
4456 Label - 3 /
8
" x 2 1 /
8
"
2112 Shackle - (6 mm) 1 /
4
" Twist
2110 Shackle - (6 mm) 1 /
4
" Bow
HBB7 Ball Bearing - 3 /
8
" Torlon (order 76)
HFG147 Snap Ring - Small
HFG383 Snap Ring - Large
• 890 Torque Tube
4753 Label - Small Red Oval
HFG726 Set Torque Tube Clamp Screws (2)
HFS333 Fastener - M6 x 1.0 x 30 316 Sk Cap
• HFG136 Extrusion Set (6 Long, 1 Short)
807 Extrusion - 7' Luff
888 Extrusion - 2' Luff
• HFG633 Fastener Set - MKIII Torque Tube (3)
HFS334 Fastener - M5 x .8 x 10mm A4 Sk Cap
2
- Accessories
• 4113 Manual - Furling
• 813 Line - 5 /
16
" x 70'
• 832 Loctite - 1 Red
• 833 Loctite - Blue
• 872 Super Glue
• 947 Prefeeder - Phenolic w/Line
• HFG634 Fastener Set - Spare
• HFG640 Wrench - M4 Allen Short
• HFG643 Wrench - M5 Allen Long
• HFG644 Wrench - M6 Allen Short
3
- Optional Parts
• 266 Kit - Small Lead Block
019A Block - 2.25" Hex Stbd
061 Stanchion Mount Base
166A Block - Bullet Swivel
HCP168 Cleat - 4" Black
• 941 Isomat Adapter
• 944 Halyard Restrainer - Small
944A Sheave & SS Inner Race Only
HCP393 Bracket - Small Halyard Restrainer
HFG467 Clevis Pin - 1 /
4
" x 1.0625" 18-8
HFS118 Cotter Pin - 1 /
16
" x .500" 18-8
• HFG186 Split Top Connector
Parts List – MKIII Unit 1
