Assembly
November 2001 Unit 1 MKIII 21

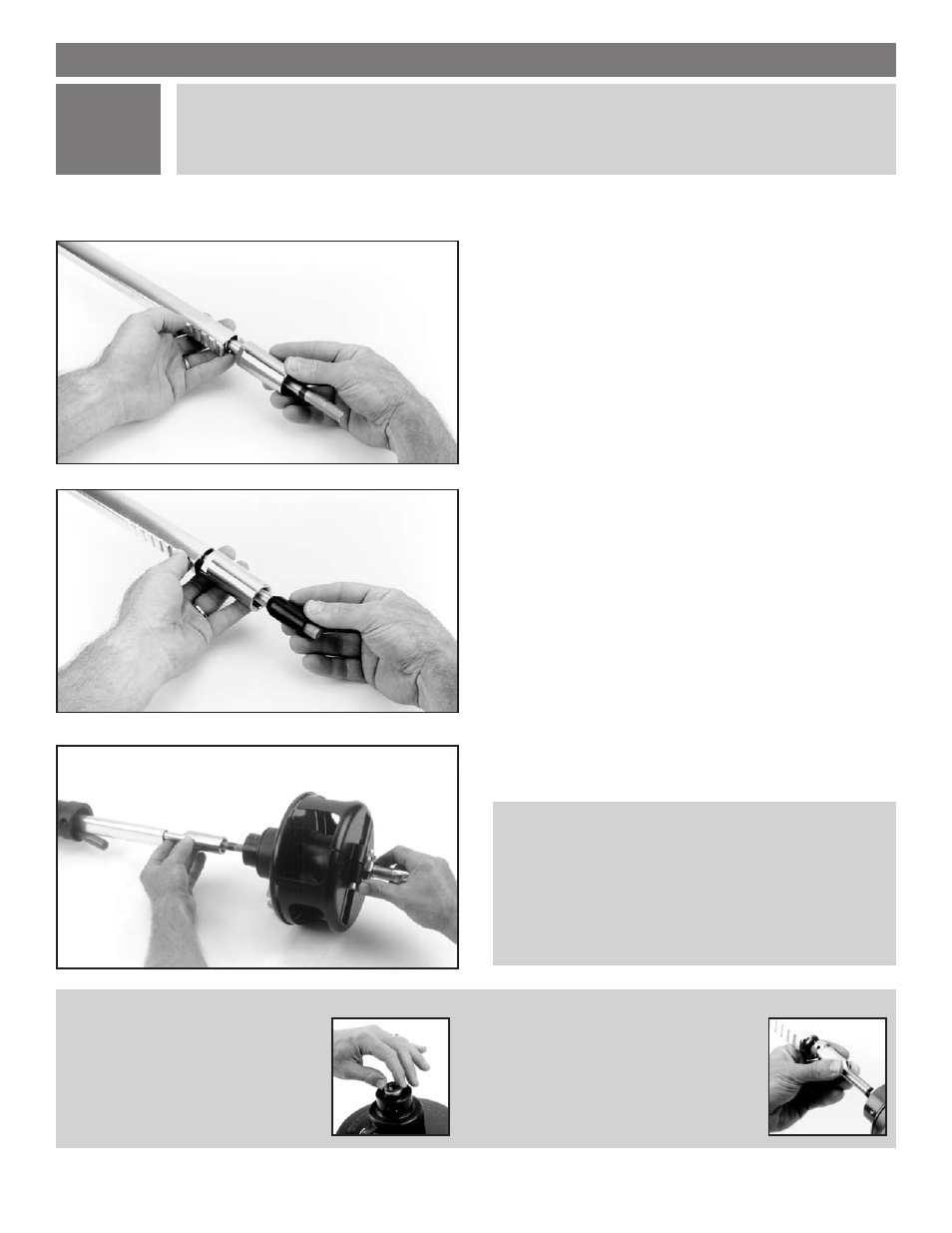

In this step, the drum is attached and the unit is readied for installation on the boat.
6
Norseman/Sta-Lok and Rod Instructions
Do NOT use the plastic locking cylinder.
Thread the locking collar onto the drum
assembly as far as it will go.
Thread the drum assembly onto the stay
until the colored mark on the threads
does not show.
Slip the locking collar onto the stay over the swage stud
with the threaded end of the collar down.
Slip the plastic locking cylinder onto the swage stud and
into the locking collar, split end first.
Thread the drum assembly onto the stay until the
colored mark on the threads does not show.
The coloring on the threads warns of insufficient
thread engagement. It is provided only for your con-
venience and may wear off. The only positive means
to insure proper thread engagement is to measure
the exposed threads. At no time should more than
2" (51 mm) of thread be exposed at either the
top or the bottom of the turnbuckle.
