10-6 L-C-R Output 8261
R-Type Revision R2005-2

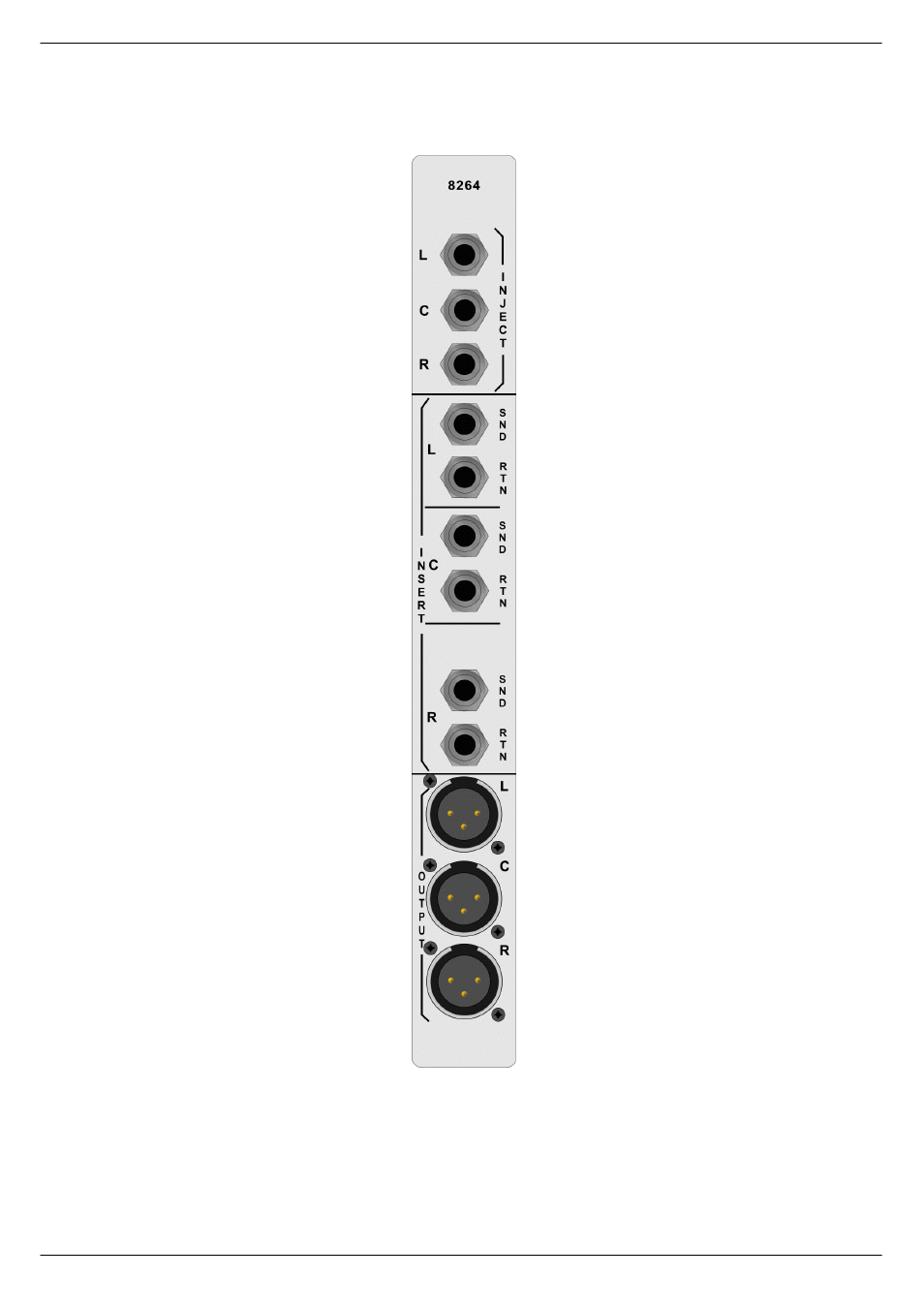

4315 /0&05#2XWSXW#;594#UHDU#SDQHO
Inputs and Outputs are electronically bal-
anced and connected via 3-pin XLRs and
follow the wiring convention:
PIN 1 = Screen
PIN 2 = In-phase signal (hot)
PIN 3 = Out-of-phase signal (cold)
The 0.25” TRS jack connectors use the wir-
ing convention:
TIP = In-phase signal (hot)
RING = Out-of-phase signal (cold)
SLEEVE = Screen
IMPORTANT NOTE: Pin 1 on XLR con-
nectors and the ‘sleeve’ connections on
the jack sockets are connected to the
FRAME. This is to ensure that the con-
sole can comply with the Electric Com-
patibility (EMC) directive.
INJECT
LEFT SEND
LEFT RETURN
CENTRE SEND
CENTRE RETURN
RIGHT SEND
RIGHT RETURN
LEFT OUTPUT
CENTRE OUTPUT
RIGHT OUTPUT
