Stereo Input Channel 8231 8-9
Revision R2005-2 R-Type

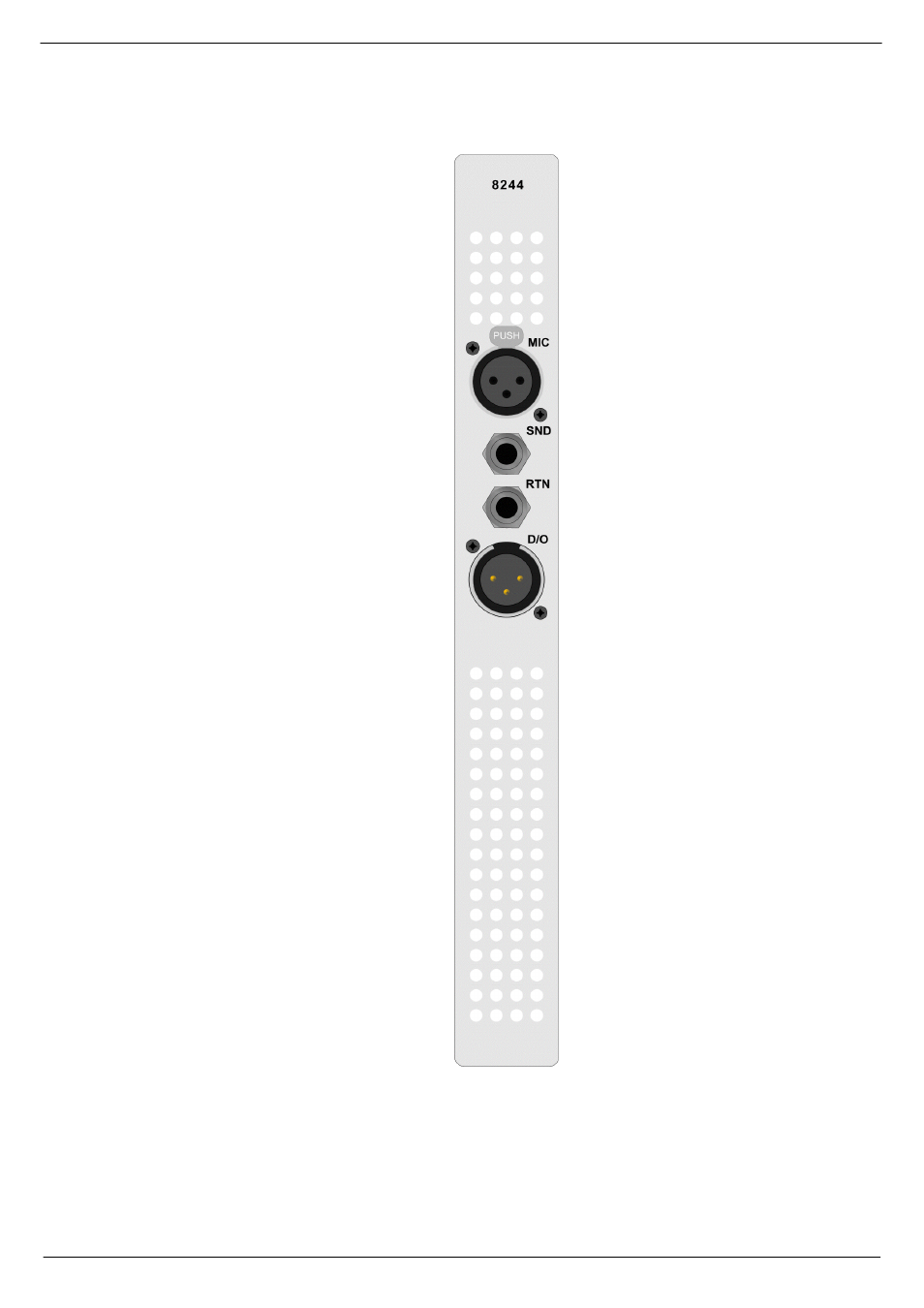

;15 6WHUHR#,QSXW#&KDQQHO#;564#0#UHDU#SDQHO
MICROPHONE INPUT
SEND
RETURN
DIRECT OUTPUT
Inputs and Outputs are electroni-
cally balanced and connected via
3-pin XLRs and follow the wiring
convention:
PIN 1 = Screen
PIN 2 = In-phase signal (hot)
PIN 3 = Out-of-phase signal (cold)
The 0.25” TRS jack connectors
use the wiring convention:
TIP = In-phase signal (hot)
RING = Out-of-phase signal (cold)
SLEEVE = Screen
IMPORTANT NOTE: Pin 1 on
XLR connectors and the
‘sleeve’ connections on the jack
sockets are connected to the
FRAME. This is to ensure that
the console can comply with
the Electric Compatibility (EMC)
directive.
