Cadac R-Type - Manual (Page 104)

11-6 Osc & Communications 8271
R-Type Revision R2005-2
441415; 72%#0,&#*DLQ
This rotary control adjusts the gain for a T/B microphone plugged into the XLR at the
top of the module.
441415< 7DON#WR#%XV#0#OHYHO#DGMXVW
When Talk to Bus is selected, you can adjust the level with this rotary control.
4414163 7DON#WR#%XV#0#SUH0VHOHFW
Press this locking push-button to select Talk to Bus. Each of the Output and Matrix
modules has its own ON/OFF switch to receive Talkback.
4414164 7DON#WR#/LQH#0#OHYHO#DGMXVW
When Talk to Line is selected, you can adjust the level with this rotary control.
4414165 7DON#WR#/LQH#0#SUH0VHOHFW
Press this locking push-button to select Talk to Line. Each of the Output and Matrix
modules has its own ON/OFF switch to receive Talkback.
2VF#)#&RPPXQLFDWLRQV#;5:4

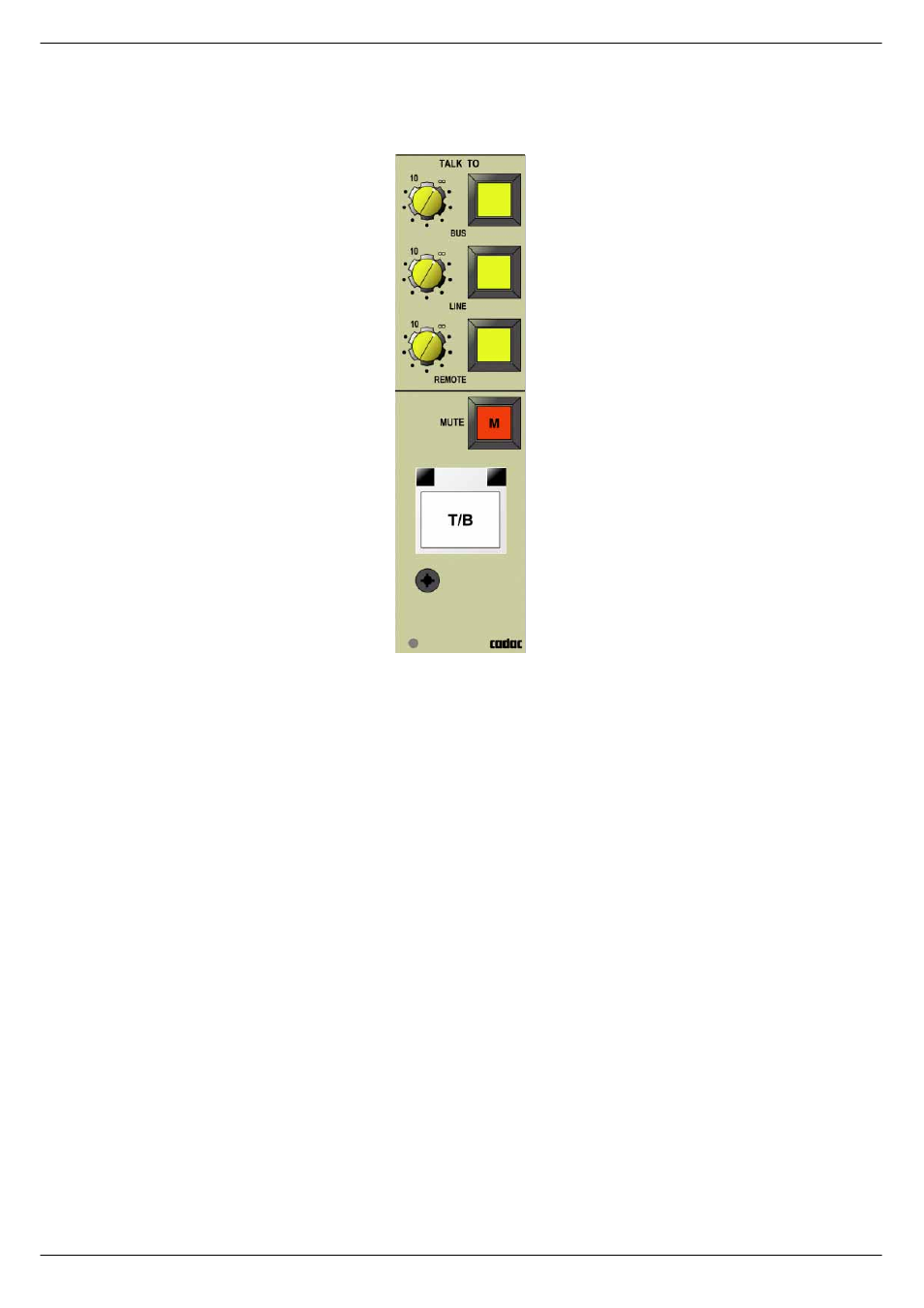

11.1.30 Talk to bus - select
11.1.32 Talk to Line - select
11.1.34 Talk to Remote - select
11.1.35 MUTE
11.1.36 T/B
11.1.29 Talk to bus - level adjust
11.1.31 Talk to Line - level adjust
11.1.33 Talk to remote - level adjust
