Mono Input Channel 8241

R-Type

Revision R2005-2

:16

0RQR#&KDQQHO#)DGHU#;5782;579#+PRWRU#IDGHU,

:1614

087(

The MUTE button is programmable and mutes all the post fader outputs.

:1615

/('#EDUJUDSK#PHWHU

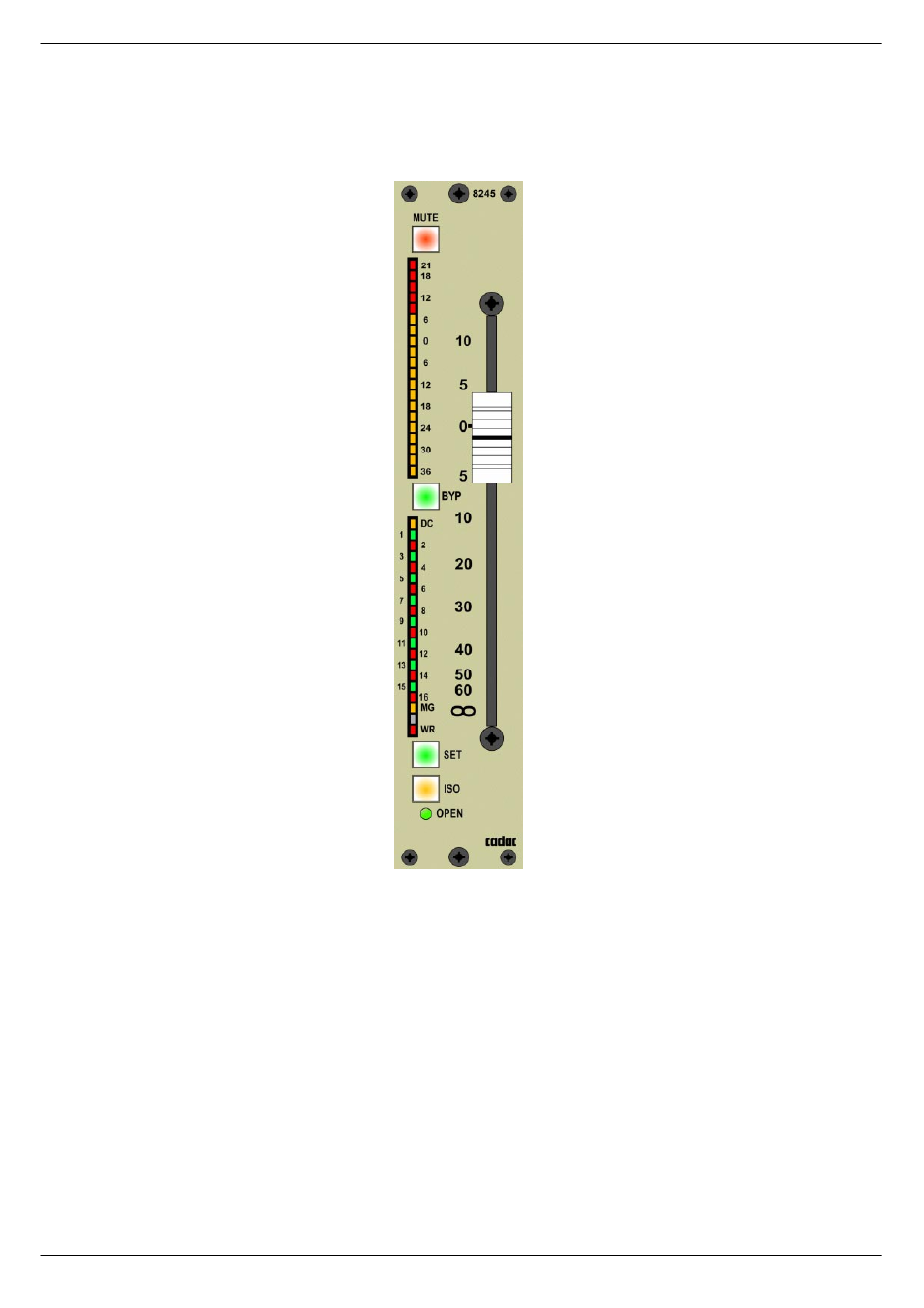

20-segment LED bargraph meter showing the channel level immediately pre-fader.

:1616

)DGHU

100 mm fader used to control the signal level.

7.3.3 Fader

7.3.1 MUTE

7.3.2 LED bargraph meter

7.3.4 Bypass

7.3.5 LED assignment indicators

7.3.6 SET

7.3.7 Isolate

7.3.8 Open
