Cadac R-Type - Manual (Page 44)

6-4 Central Control Module 8281
R-Type Revision R2005-2
916 )DGHU#&RQWURO#0RGXOH#+)&0,#
4 &KDQQHO#3)/#WR#$)/#0#21
Press this button to convert all channel Pre Fader Listen buttons to After Fader Lis-
ten. Left & Right signals appear in the LISTEN module in stereo.
5 &KDQQHO#SULRULW\#0#21
Press this button to enable any channel PFL or AFL selection to override other selec-
tions made in any GROUP, MATRIX OR L-C-R output section of the console.
6 +ROG
The R-Type’s PFL/LISTEN system can be set up to work in one of three ways:
1. HOLD is not ON - provides INTERCANCEL cancels any present PFLs or LIS-
TEN signals.
2. HOLD is ON - provides an additive function - each new PFL or LISTEN signal
mixes with the previous.
3. CHANNEL PRIORITY - an input PFL overrides an output LISTEN but does not
cancel it.
7 &OHDU
In any of the modes described in (c) above, the CLEAR buttons will illuminate if a
PFL or LISTEN is active and can be used to cancel the current selection.
8 6HW
Illuminated switches to SET the BYPASS or ISOLATE functions in all faders.
1
2 3
4
5
6
7
8

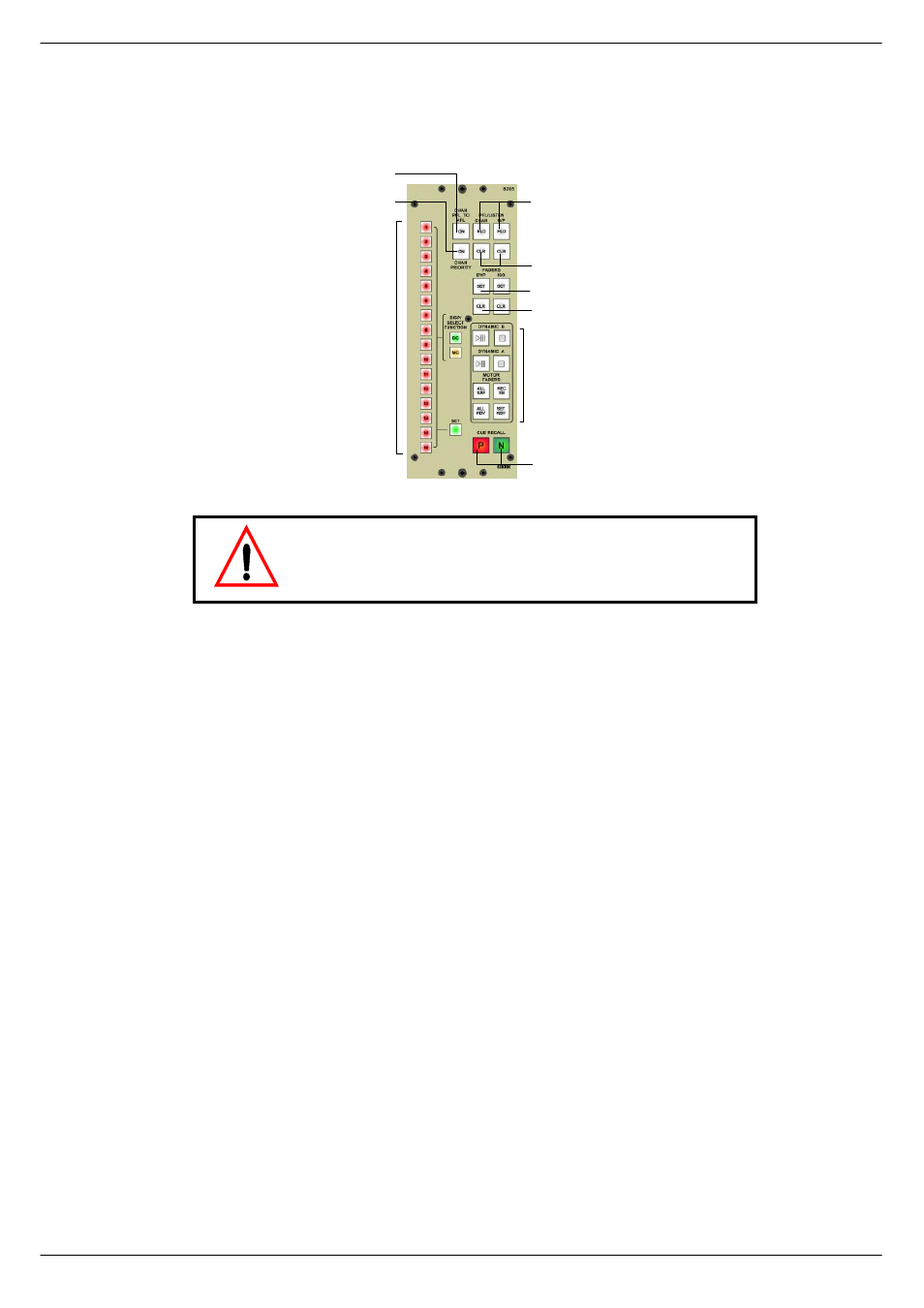

FIG 6-2. CCM Control Panel
see 6.3.1 Motor faders
CAUTION:
Do not plug two CCMs or FCMs into the same system, even if they are located in
different frames which are then bussed together. Although this should do no dam-
age to the system, the automation software will not work under these conditions.
