Outputs and Matrix 8251 9-9
Revision R2005-2 R-Type

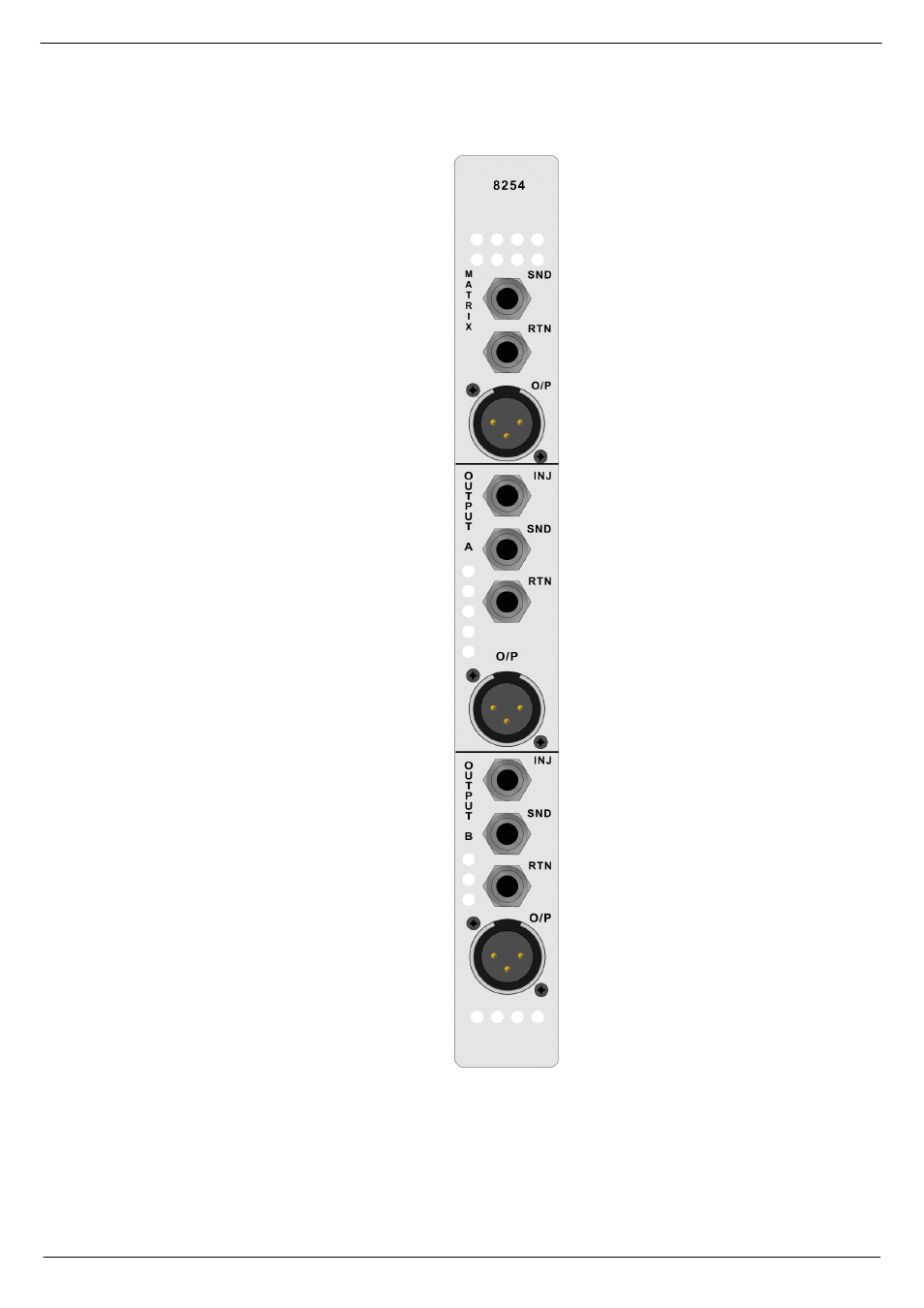

<15 2XWSXW#)#0DWUL[#;584#0#UHDU#SDQHO
SEND
RETURN
MATRIX OUTPUT
INJECT
SEND
RETURN
OUTPUT A
INJECT
SEND
RETURN
OUTPUT B
Inputs and Outputs are electronically bal-
anced and connected via 3-pin XLRs and
follow the wiring convention:
PIN 1 = Screen
PIN 2 = In-phase signal (hot)
PIN 3 = Out-of-phase signal (cold)
The 0.25” TRS jack connectors use the wir-
ing convention:
TIP = In-phase signal (hot)
RING = Out-of-phase signal (cold)
SLEEVE = Screen
IMPORTANT NOTE: Pin 1 on XLR connec-
tors and the ‘sleeve’ connections on the
jack sockets are connected to the
FRAME. This is to ensure that the con-
sole can comply with the Electric Com-
patibility (EMC) directive.
