Connecting the mixer frames

3-1

Revision R2005-2

R-Type

&RQQHFWLQJ#WKH#PL[HU#IUDPHV

614

6HWWLQJ#XS#WKH#WRXULQJ#FRQVROH

Each console frames is shipped in a flight-case to provide full protection against any
possible transit damage. The following procedure describes how to set up the con-
sole.

Select the 8U case containing the power supplies and remove the front and rear
covers. If using an 8U drawer case, note that this has only a front cover. On both
types of cases the wheels fitted with brakes are at the front.

Note the locating bars on the base of the console case. These are the guides for
locating the console case securely onto the 8U PSU or drawers case.

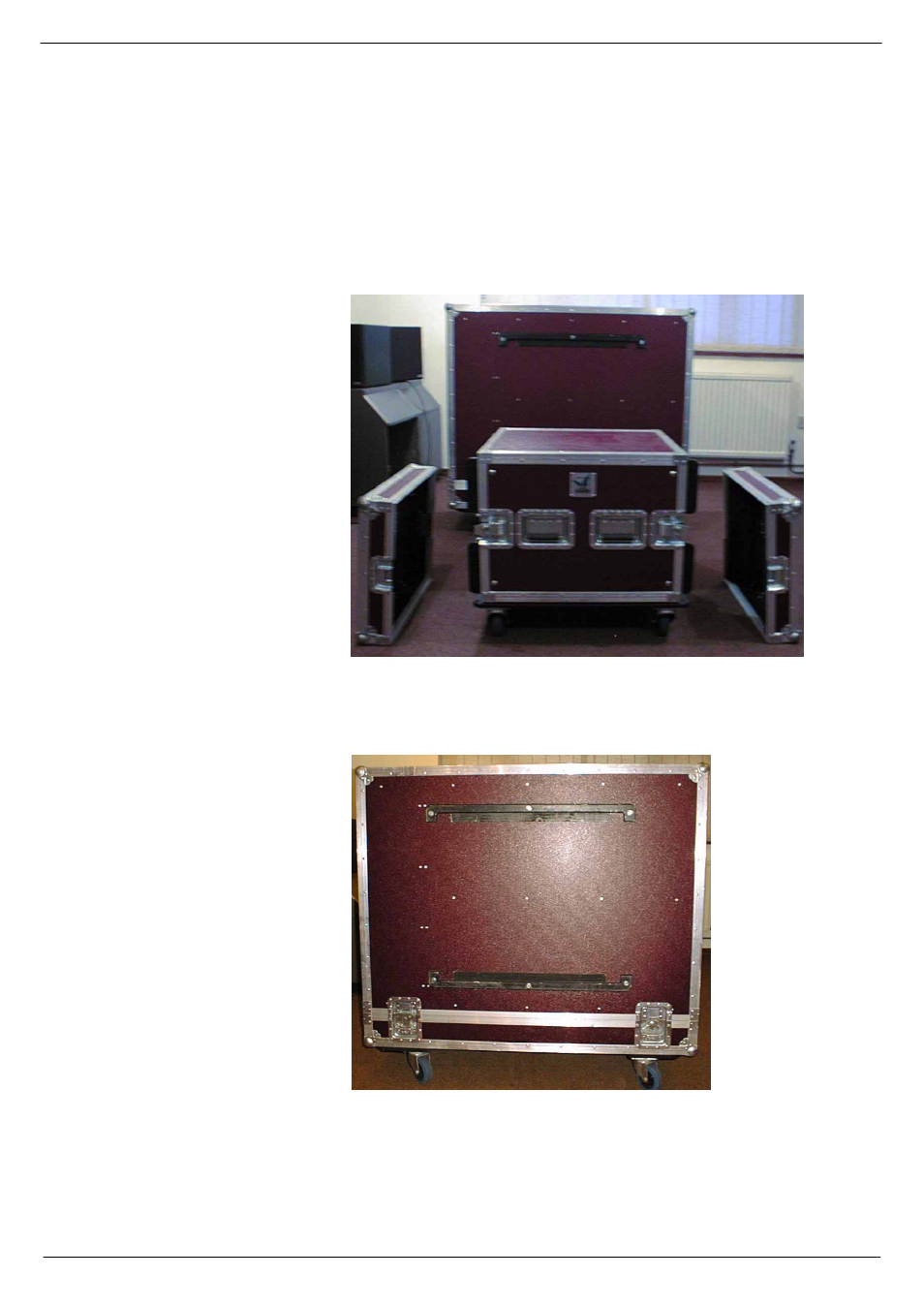

FIG 3-1. 8U case with front and
rear covers removed.

FIG 3-2. Detail, showing the locat-
ing bars on base of console case.
