Central Control Module 8281 6-5
Revision R2005-2 R-Type
9 &OHDU
Illuminated switches to CLEAR the BYPASS or ISOLATE functions in all faders.
: 3UHYLRXV#)#1H[W
The Scene Memory Automation system is stepped by pressing either the Previous or
Next button. These buttons are duplicated on the Central Control Module, see bullet
(q) in section 2.1.
; $VVLJQPHQW#EXWWRQV
The illuminated buttons 1 to 16, in conjunction with SET, DC and MG are used to
select and control:
1. The Muting state of each of the 16 “MUTE GROUPS”.
2. Assignment of the faders to a DC Master.
3. Assignment of the faders to a MUTE GROUP.
NOTE: See section 5.6 for operational description
91614 0RWRU#IDGHUV
When motor faders are fitted, this group of eight push-buttons may be used to control
two dynamic sequences A and B. Dynamic B is used only when an additional
dynamic is being played. Both dynamics can run simultaneously. The motor faders
can be set to safe and ready mode respectively. In safe mode, touching the fader
knob will have no impact on the recorded sequence. In ready mode, touching the
fader knob will cause the motor fader to toggle between ready and write mode. Thus,
editing of the recorded sequence (dynamic A only) goes on for as long as the fader
knob is actually touched and the fader remains in ready mode.
#####

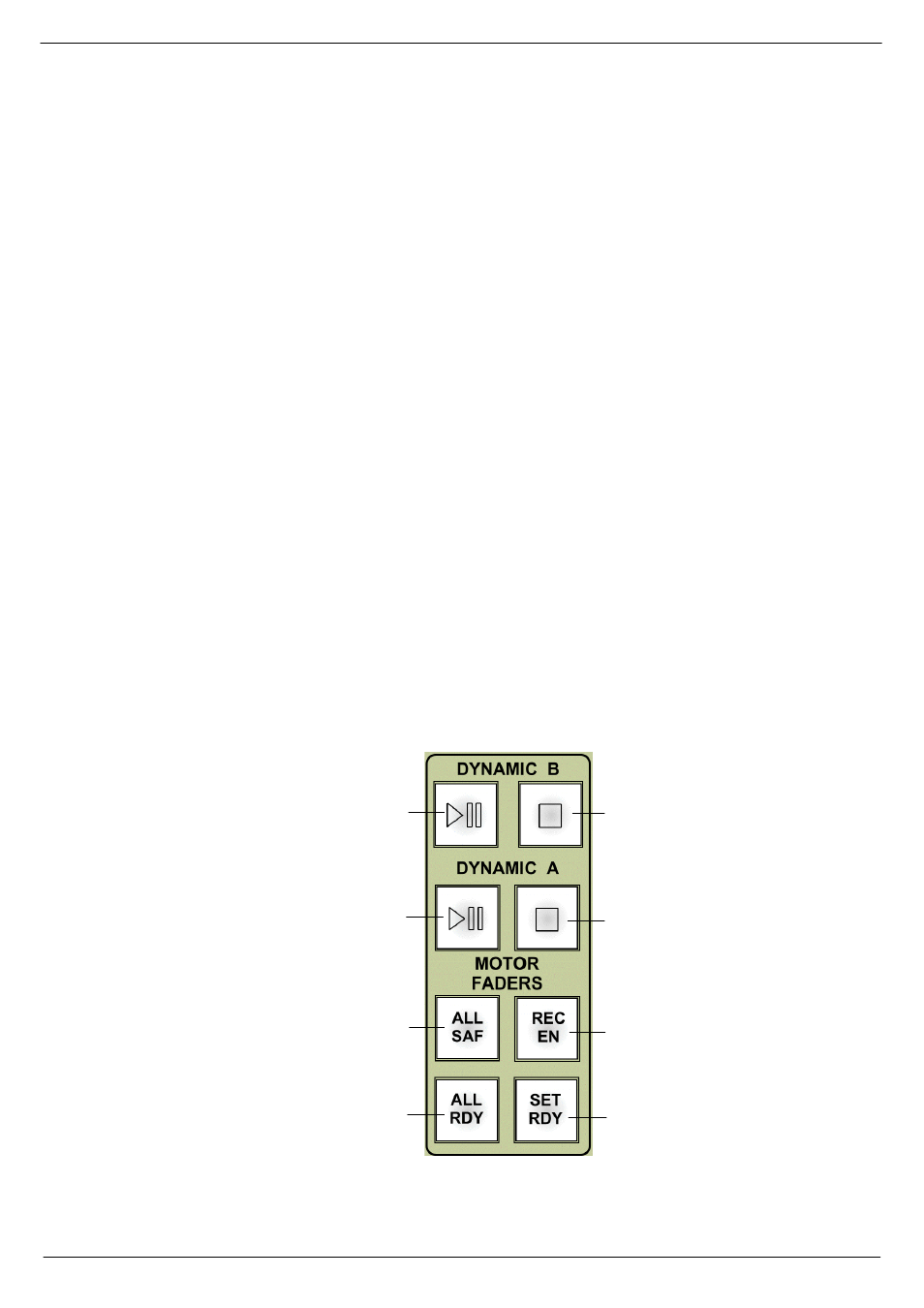

FIG 6-3. Keypad for controlling dynamics.
2
1
3
4
5 6
7
8
