Cadac R-Type User Manual
Page 70
8-4
Stereo Input Channel 8231
R-Type
Revision R2005-2
A level with the upper control and B level with the lower control.
Each pair has its own PRE/POST FADER and ON/OFF switch.
Switching between mono and stereo is performed and displayed in the CCM (Central
Control Module). See
for information how to do this.
;14145 +)#(4#%RRVW2&XW#)#)UHTXHQF\#FRQWURO#4.8+]#0#48.+]
This dual concentric control allows the centre frequency to be adjusted between
1K5Hz to 15 KHz by the bottom knob and the cut and boost to be adjusted by ±18dB
by the top knob. The top knob also has a centre detent which disables this section of
the equalizer.
8.1.12 HF EQ Boost/Cut & Frequency
control
8.1.13 HF Q-control
8.1.14 HMF EQ Boost/Cut & Frequency
control
8.1.15 HMF Q-control
8.1.16 LMF EQ Boost/Cut & Frequency
control
8.1.17 LMF Q-control
8.1.18 LF EQ Boost/Cut & Frequency con-
trol
8.1.20 EQ PRE INS
8.1.21 EQ IN/OUT
8.1.23 HP-filter frequency control
8.1.26 PAN Centre level
8.1.28 PAN Control
8.1.31 Stereo PAN to groups 13-16
8.1.33 Matrix 13-16
8.1.34 Insert
8.1.35 MUTE
8.1.19 LF Q-control
8.1.22 HP-filter IN/OUT
8.1.24 PAN Left-Centre-Right
8.1.25 PAN Centre IN/OUT
8.1.27 PAN Left-Right
8.1.29 Stereo
8.1.30Stereo PAN to groups 9-12
8.1.32 PFL

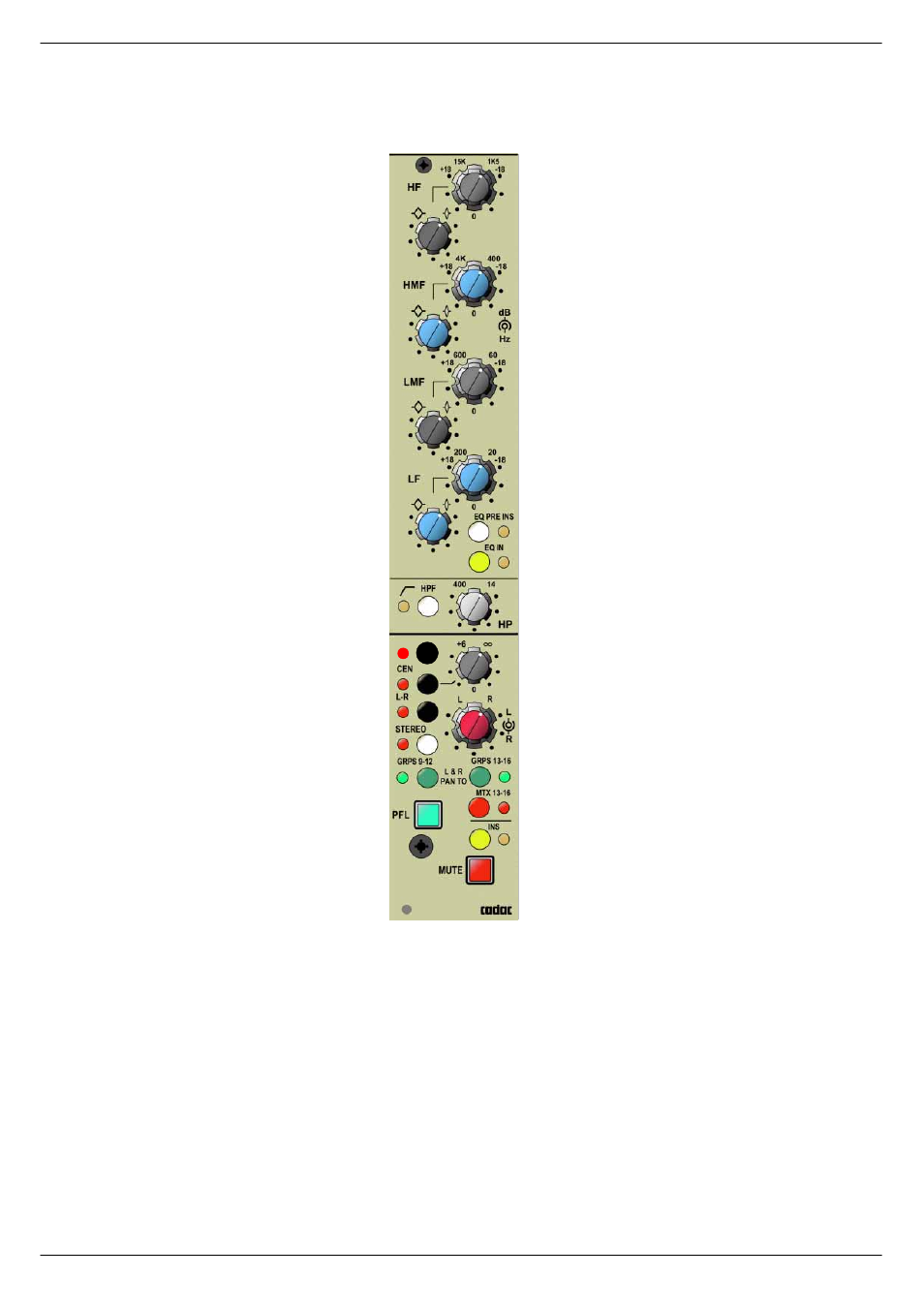

6WHUHR#,QSXW#&KDQQHO#;564#0#IURQW#SDQHO
