Cadac R-Type - Manual (Page 91)

L-C-R Output 8261 10-1
Revision R2005-2 R-Type
43 /0&05#2XWSXW#;594

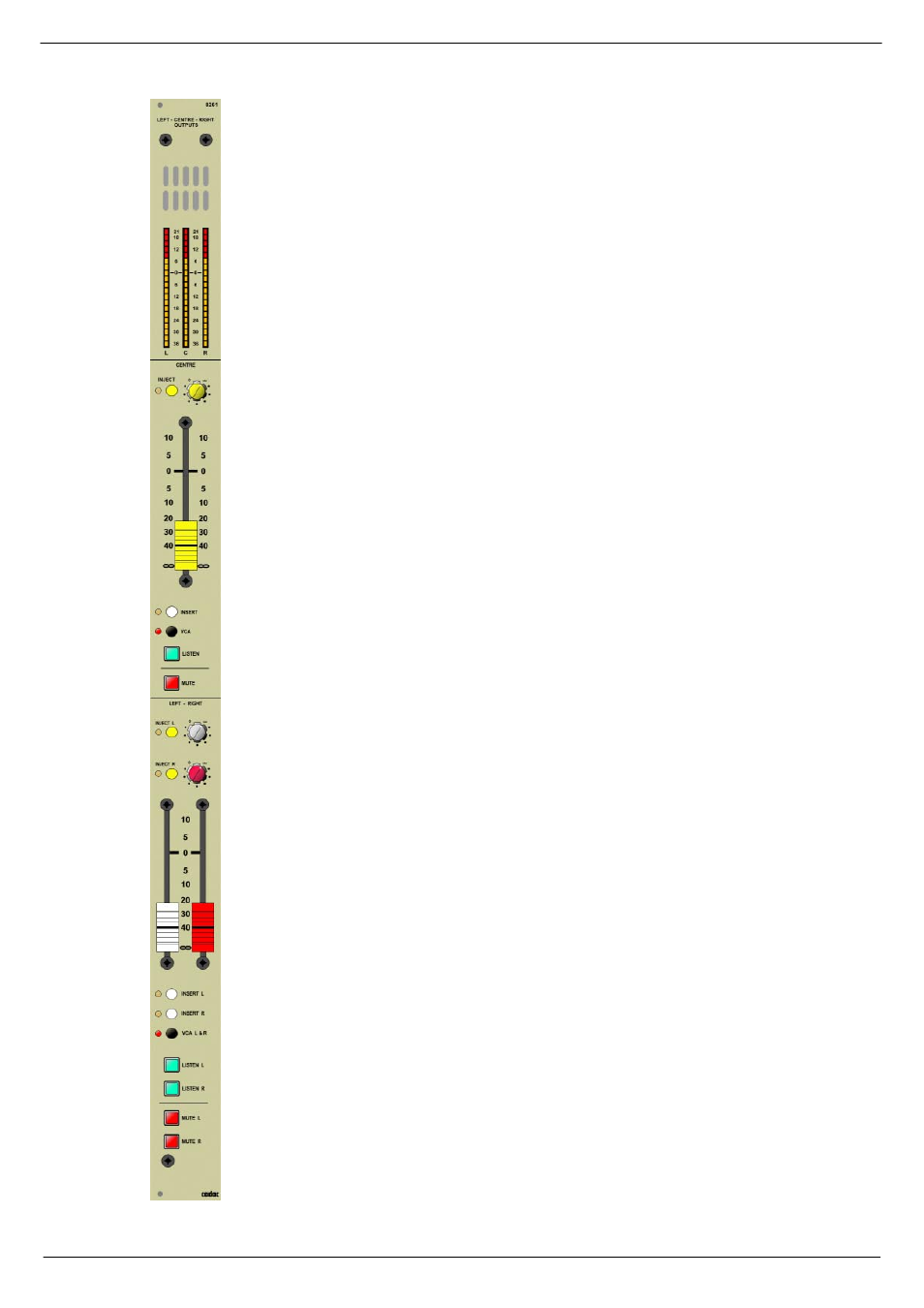

The inputs to the L-C-R busses come from either a channel or output. Post-fader
level meters display the Left-Centre-Right output signals; the meters are affected by
the MUTE switches. The module has separate functions for CENTRE and LEFT -
RIGHT e.g. Inject, Insert, VCA and Listen. The module functions each has an ON/
OFF switch; the Inject feature also has a level control. The Left and Right outputs
each has their own MUTE button.
Following pages describes the 8261 module in detail.
