Listen & Stereo Output 8305 12-7
Revision R2005-2 R-Type
4515 /LVWHQ#)#6WHUHR#2XWSXW#;638#0#UHDU#SDQHO
Inputs and Outputs are electronically balanced
and connected via 3-pin XLRs and follow the wir-
ing convention:
PIN 1 = Screen
PIN 2 = In-phase signal (hot)
PIN 3 = Out-of-phase signal (cold)
The 0.25” TRS jack connectors use the wiring
convention:
TIP = In-phase signal (hot)
RING = Out-of-phase signal (cold)
SLEEVE = Screen
IMPORTANT NOTE: Pin 1 on XLR connectors
and the ‘sleeve’ connections on the jack
sockets are connected to the FRAME. This is
to ensure that the console can comply with
the Electric Compatibility (EMC) directive.

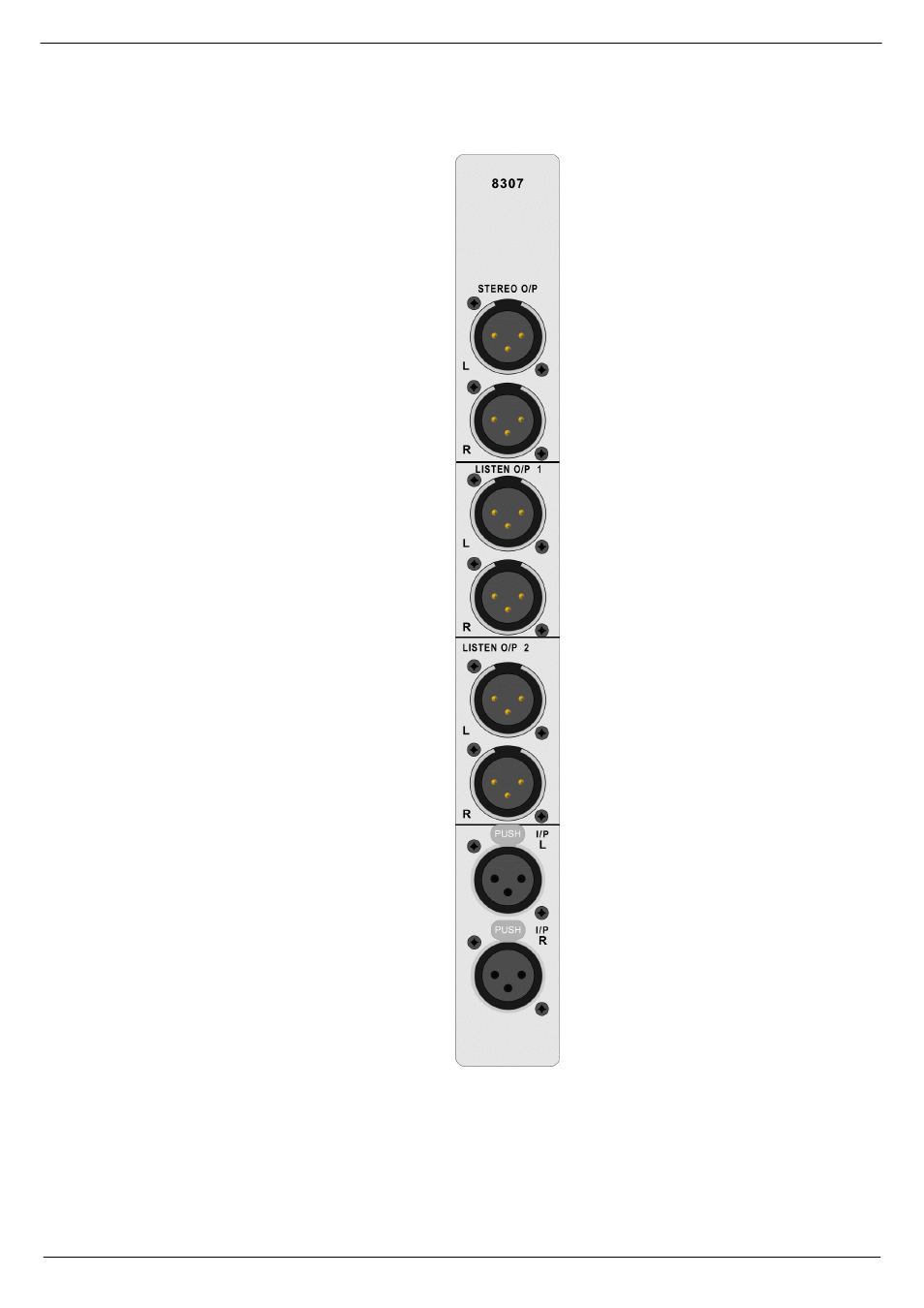

Stereo Output - Left and Right
Listen Output 1 - Left and Right
Listen Output 2 - Left and Right
Input - Left and Right
