Label position on the product – Avery Dennison ALS 306 User Manual

Page 46

4.2 C

ONFIGURATION

AND

MONITORING

ALS

306
309

Label position on the product

Prerequisites:

– The label length must be specified.
– The label stop position must be set.

Configuration in dispensing mode:

Use the two right buttons to set the start offset (see
“Online settings” on page 25).

Or use the function menu settings:

Call the

LABEL SETUP > Start Offset

function and set the

start offset.

– The label should be flush with the front edge of the

product:

Enter the distance between the product sensor and
the dispensing edge [52A].

– The label should be stuck at a distance from the

front edge of the product:

Increase the start offset by the distance [53A] to the
product’s front edge.

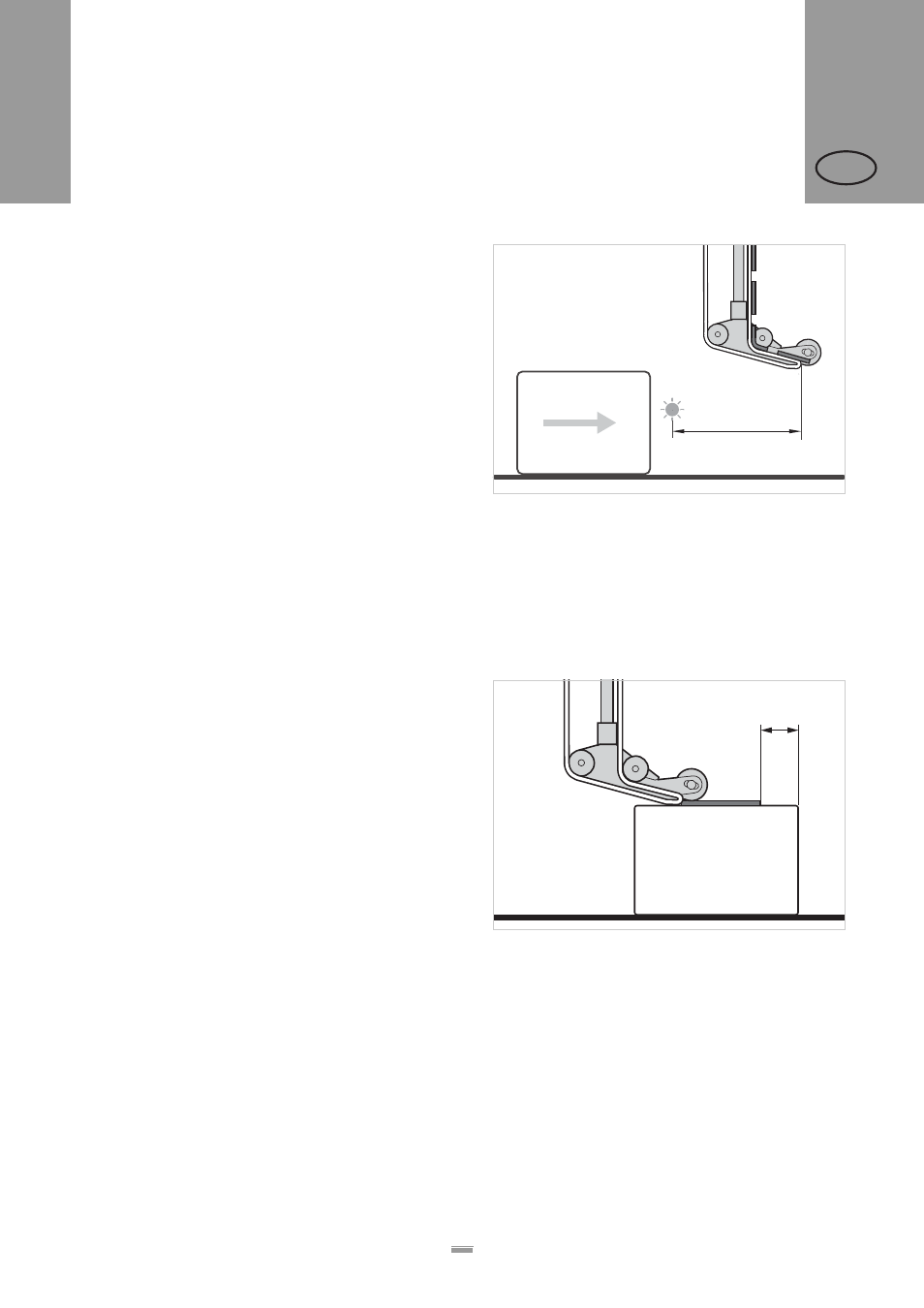

[52] Distance between the product sensor (left) and the

dispensing edge (right).

[53] Distance (A) between the label and the product’s front
