3.2.2 Inserting a label roll
WARNING!
Risk of injury due to moving and rapidly
rotating parts!
£ Before inserting the label roll, ensure that
the device is turned off at the main
switch.
£ Do not under any circumstances turn the
device on before the label web is
threaded in completely.
Removing spent backing paper
Assuming backing paper has gathered on the rewinder
[30A] :
£ Press the release button [30B].
– The tensioning mechanism of the rewinder is
slackened.
£ Remove the rewound backing paper.
Removing glue residue
£ If necessary, clean the following components:
– Dispensing plate
– Deflection rollers
– Drive rollers
– Pressure roller
£ Follow the directions provided in section
“Maintenance and cleaning” on page 52.
Inserting a new label roll
£ Push the material roll [31A] onto the unwinder as far
as it will go.
£ Rotate the rotary knob [31B] in a clockwise direction
until the label roll sits tightly.
£ Run the label web around the deflection roller and
the dancer arm roller [31C] as shown in the figure.

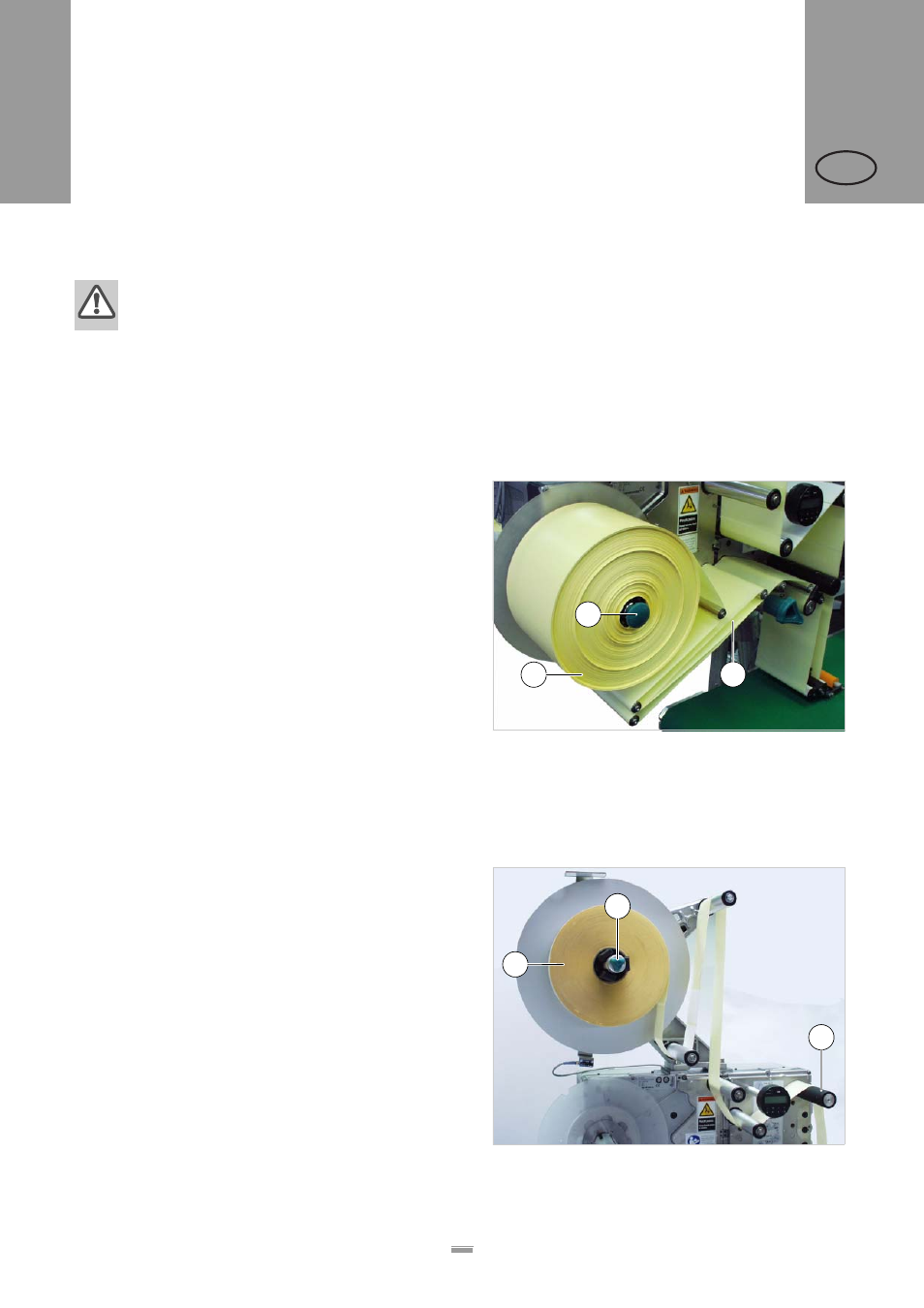

[30] A Rewound backing paper
B Release button
C Backing paper path
A
B
C
[31] Inserting the material roll.
C
B
A
