22
2 P
RODUCT DESCRIPTION
2.2 O
PTIONS
ALS
306
309
GB
Pneumatic dispensing edge
– The dispensing edge is pivoted in the dispensing
head. Compressed air presses the dispensing edge
onto the surface of the product.
– Allows compensation for height differences
between the products or on the product surface.
Outer diameter control sensor
The outer diameter control sensor (OD sensor) triggers
a warning, if the label roll outer diameter falls below a
certain, adjustable value.
Cable kit for internal outer diameter
control
Those cables are required to connect the sensors,
which are integrated in the unwinder, to the control unit
of the ALS 30x. If connected, the internal OD-control
can be used. For 2 unwinders, 2 cable kits are required.

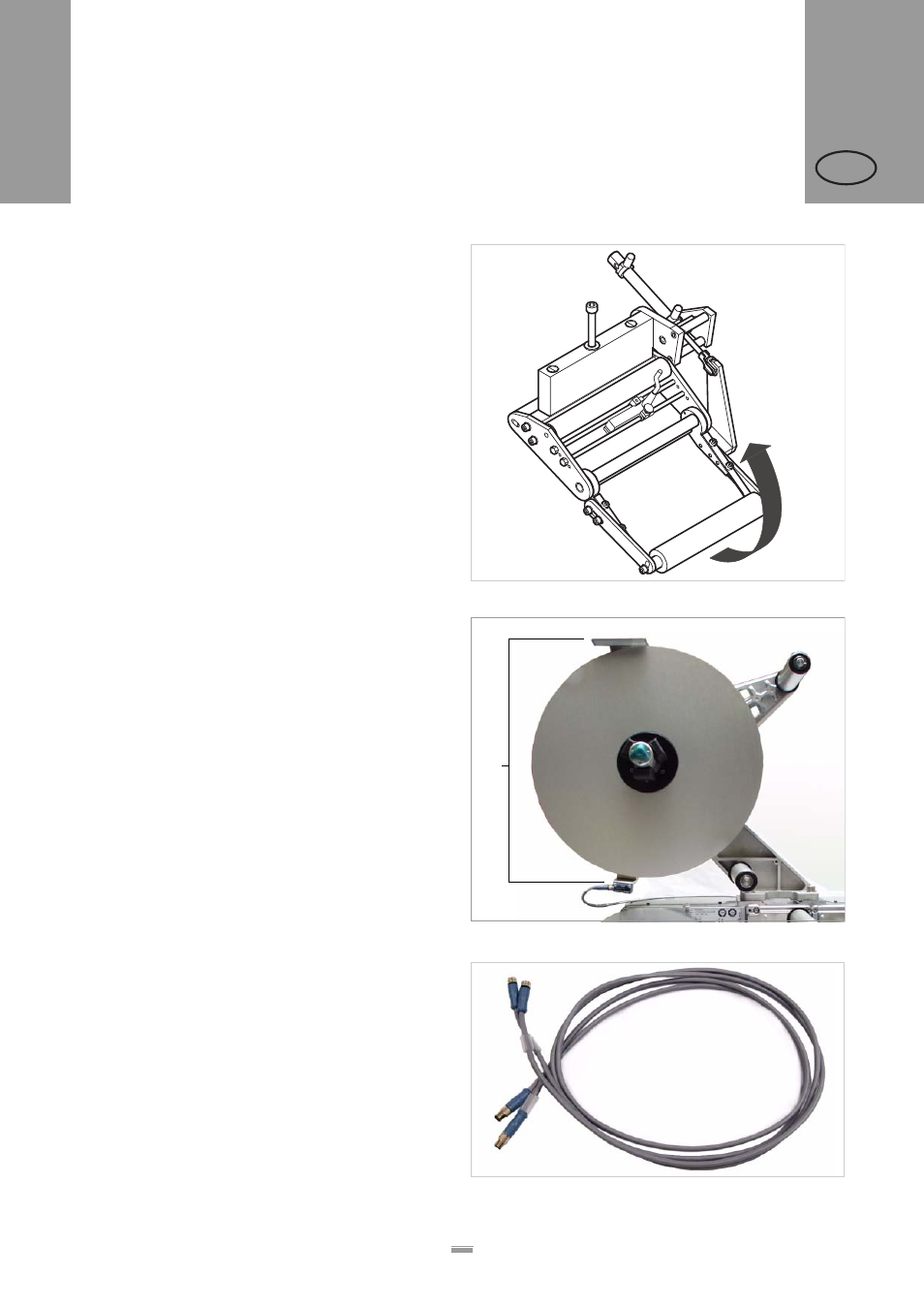

[13] Pneumatic dispensing edge
[14] OD sensor (A)
A
[15] Cable kit for internal outer diameter control
