4.1.1
Turning on the unit
£
Set the main switch [48A] of the unit to ‘I’ (On).
– The following messages are displayed during the
start process:
(machine type and firmware version)
(the machine’s RAM, as well as the CF card’s
memory, if a card is inserted)
– Once switched on, the ALS 30x is in dispensing
mode; in other words, triggering the product sensor
will cause a label to be dispensed.
– You can find more information on the dispensing
mode in the section “Dispensing mode” on page 24.
4.1.2
Starting label dispensing
Dispensing with a product sensor
Once switched on, the ALS 30x is in dispensing mode;
this means that triggering the product sensor will cause
a label to be dispensed.
Prerequisites:
– The label length must be specified.
– The product sensor must be connected.
– The sensors must be configured correctly
(PNP/NPN).
Dispensing without a product sensor
It is also possible to trigger the dispensing process
without a product sensor:
– The machine is in dispensing mode:
£
Press the
button.
– The machine is in configuration mode:
£
Press the
button briefly (less than two
seconds).
ALS306 RH:
V 1.33
Memory:
16 MB
Flashcard
48 MB
ONLINE
Label
0

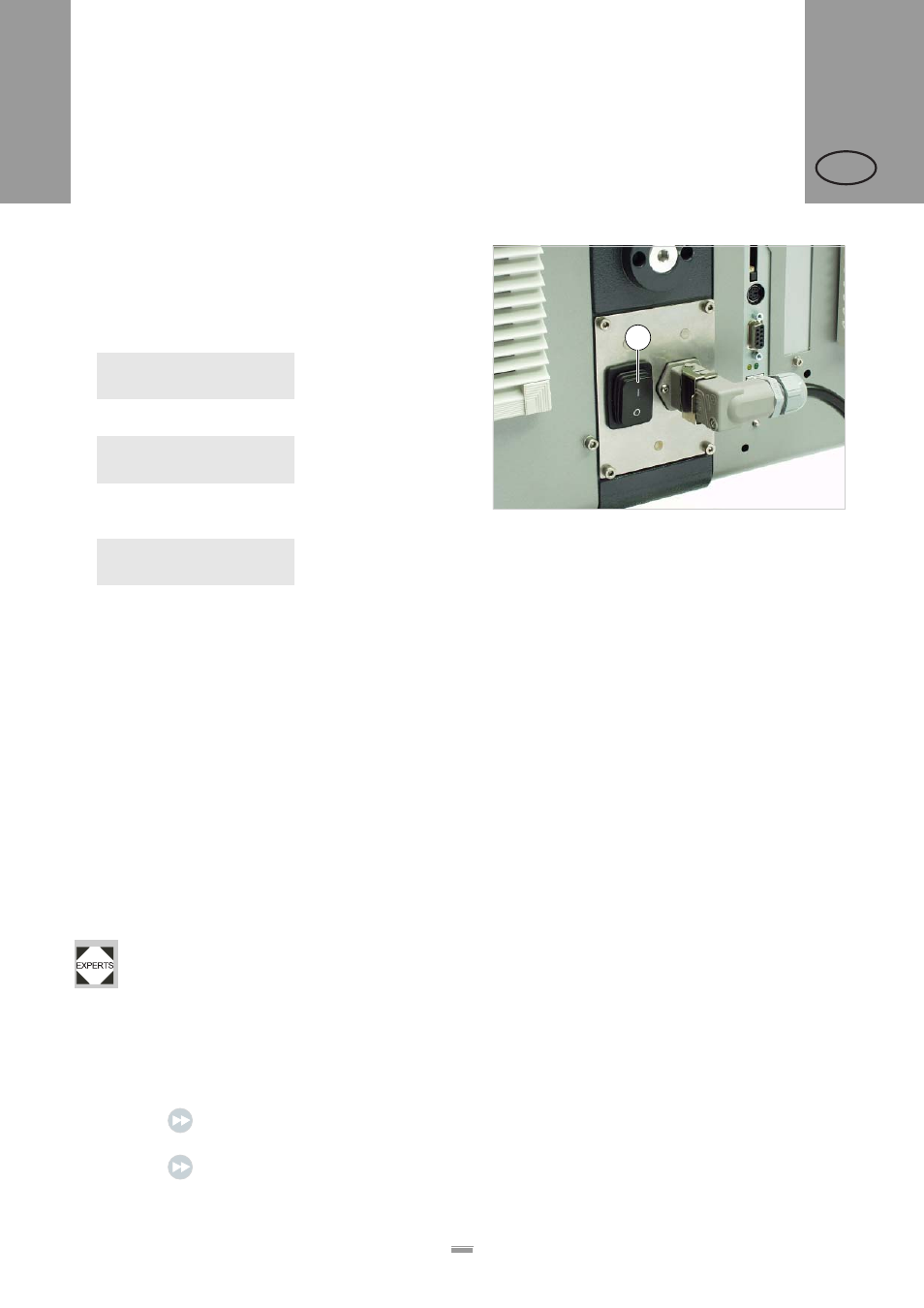

[48] Main switch (A) of the ALS 30x
