21
2 P
RODUCT DESCRIPTION
2.2 O
PTIONS
ALS
306
309
GB
External control panel
– An external control panel can be connected in
addition to the integrated control panel.
– An external control panel is useful if the standard
control panel is difficult to access due to the position
in which the unit is installed.
Fixed dispensing edge
– The dispensing edge has a fixed connection to the
brackets.
– To adjust the vertical position, lift/lower the entire
device.
– The slope angle can be adjusted by rotating the
brackets (see the service manual for further details).
Swivelling dispensing edge
– The position of the dispensing edge can be adjusted
vertically.
– The device need not be moved to adjust the position
of the dispensing edge; the device’s mounting need
not be dismantled.
Spring-loaded dispensing edge
– The dispensing edge is pivoted. A torsion spring in
the dispensing head presses the dispensing edge
downwards and onto the surface of the product.
– Allows compensation for height differences
between the products or on the product surface.

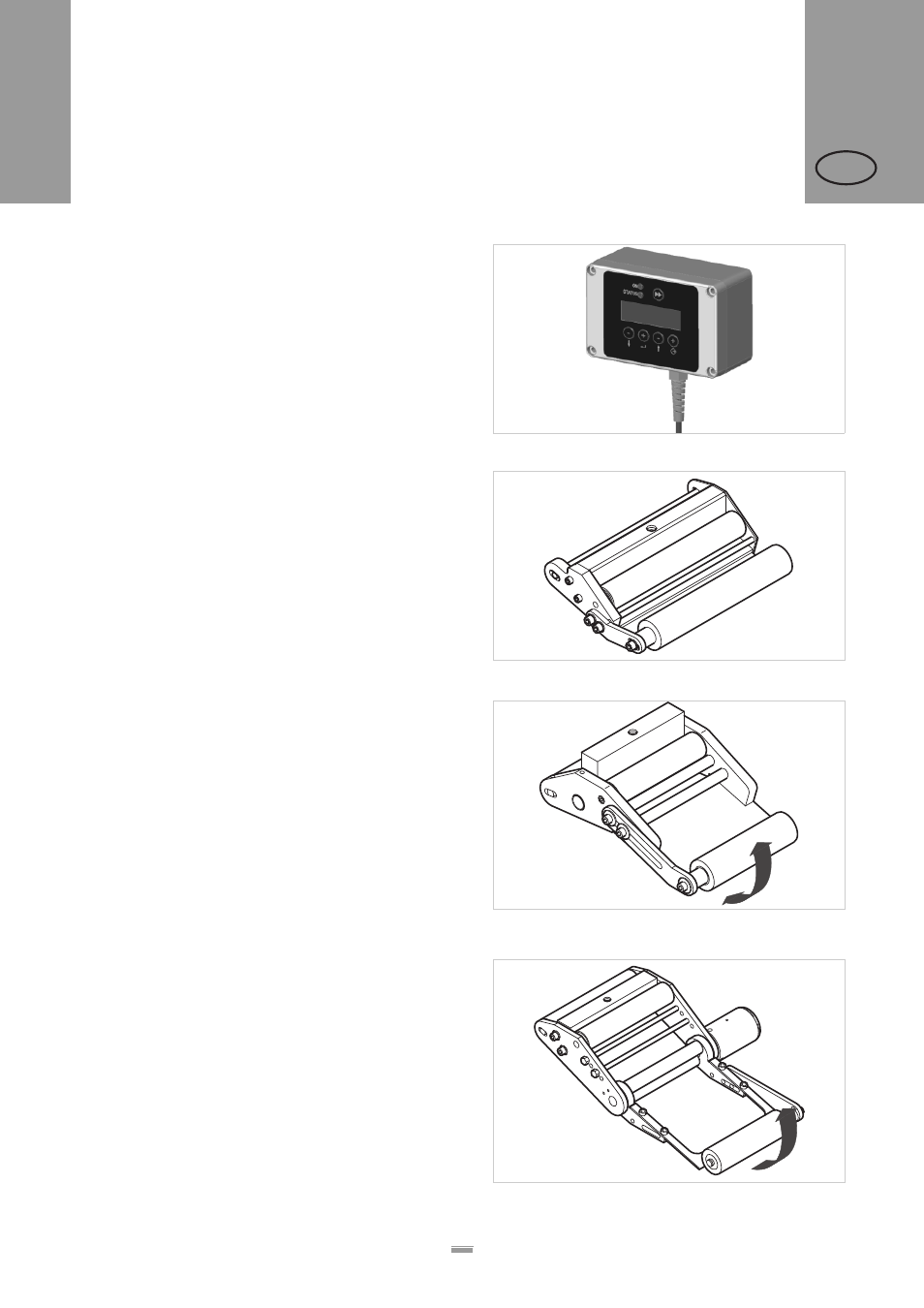

[9] External control panel
[10] Standard dispensing edge
[11] Swivelling dispensing edge
[12] Spring-loaded dispensing edge
2.2
OPTIONS
