39
3 B
EFORE OPERATION
3.2 I
NSERTING LABEL MATERIAL
ALS
306
309
GB
Threading the label web at the dispensing
edge
Fixed [35] and swivelling L-shape dispensing edges:
£ Unroll 2.5 m of label web and remove the labels from
it.
£ Pass the backing paper around the first deflection
roller [35A] and through the slot in the sensor [35B].
£ Feed the backing paper under the pressure roller
[35C] to the dispensing plate [35D].
£ Feed the backing paper around the dispensing plate
to the second deflection roller [35E].
Spring loaded [36] and pneumatic [37] L-shape dispen-
sing edges:
£ Additionally pass the backing paper between the
two slim deflection rollers at the joint [36A] [37A].

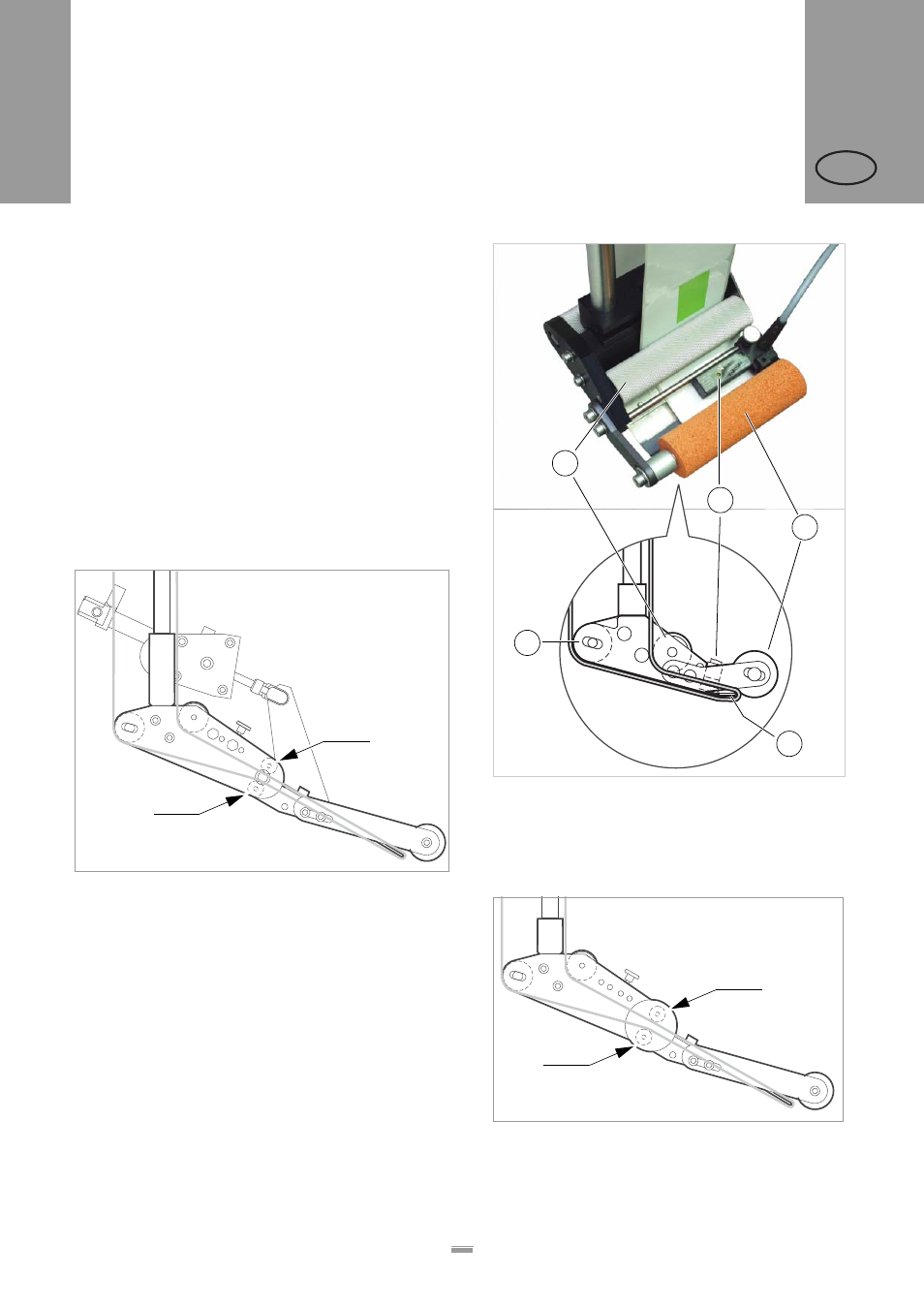

[37] Path of the label web at the pneumatic dispensing edge (option).
[35] Path of the label web at the dispensing edge.
A 1st deflection roller
B Label sensor
C Pressure roller
D Dispensing plate
E 2nd deflection roller
[36] Path of the label web at the spring loaded dispensing edge
(option).
C
A
B
D
E
A
A
A
A
