3 B
EFORE OPERATION
3.1 E
LECTRICAL CONNECTIONS
ALS
306
309
GB
3.1.1 Power supply connection
WARNING!
This machine operates using mains voltage!
Touching live electrical parts may expose
you to hazardous electrical currents and
may lead to burns.
£ Make sure that the machine is switched
off before you connect the power cable.
£ The mains connection of the machine
may only be done by authorised
specialists, who are aware of the risks
involved.
£ The power cable should not be more than
3 m long.
£ Only operate the device using the system
voltage indicated on the nameplate.
Connecting the power cable
The machine ships with a separate machine-side pow-
er connector.
The power cable must be produced by an
authorised specialist who is aware of the risks
involved.
For information about producing the power
cable refer to the Service Manual.
£ Make sure that the power switch [25A] is set to ‘O’
(off).
£ Connect the power cable [25B] to the machine.
£ Close the locking clip [25C].
Disconnecting the power cable
£ Make sure that the power switch [26A] is set to ‘O’
(off).
£ Open the locking clip [26B] .
£ Pull the connector off.

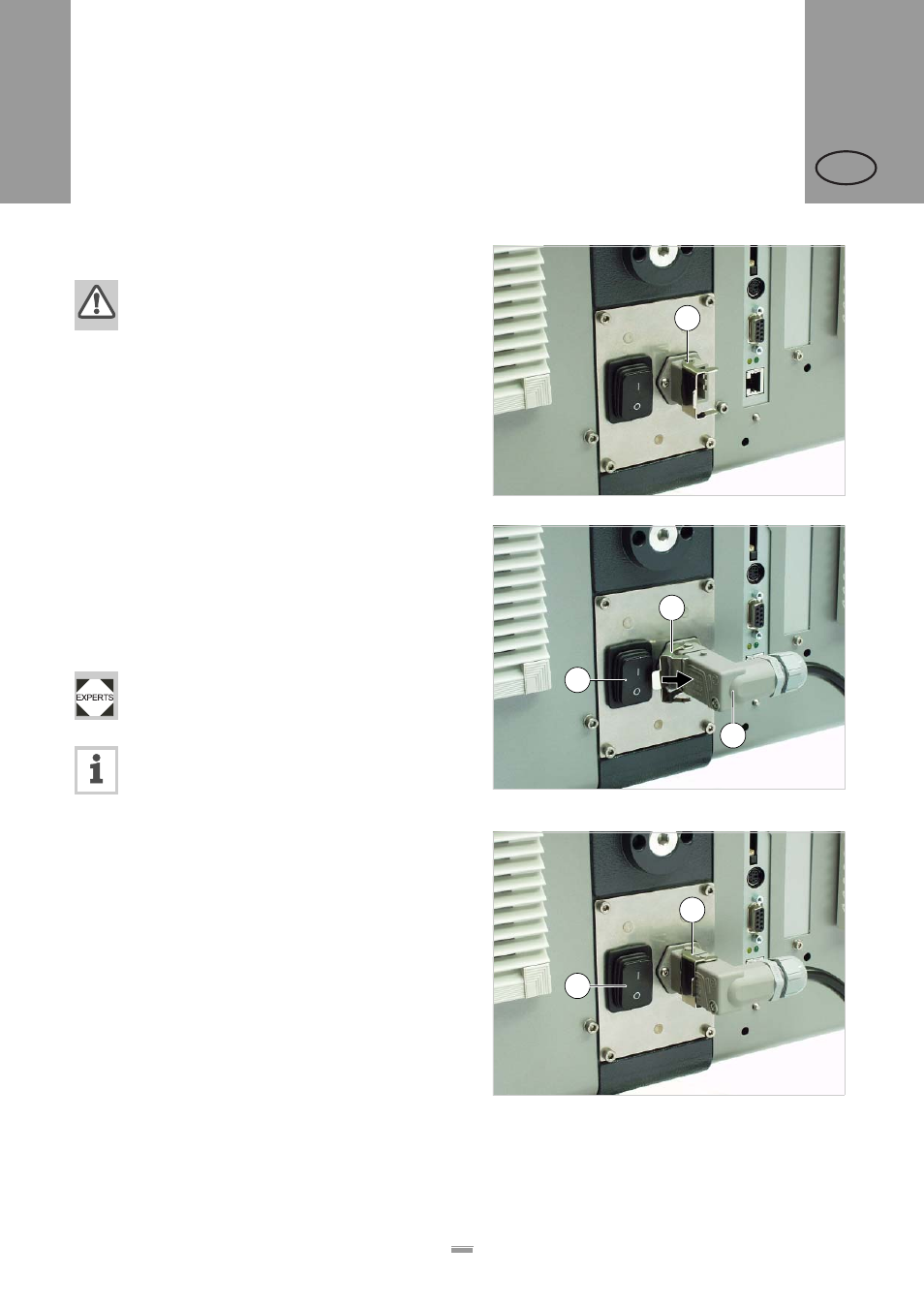

[24] Power supply (A) on the ALS 30x.
[25] Power cable (B) plugged in.
[26] Locking clip (B) closed.
A
C
B
A
B
A
