Figure 5-5, Installing the pim, Transition module – Artesyn MVME4100ET Single Board Computer Installation and Use (June 2014) User Manual
Page 86
Transition Module
MVME4100ET Single Board Computer Installation and Use (6806800K76F)
86
6. Insert the four short Phillips screws, provided with the PIM, through the holes on
the bottom side of the transition module into the PIM front bezel and rear
standoffs. Tighten the screws.

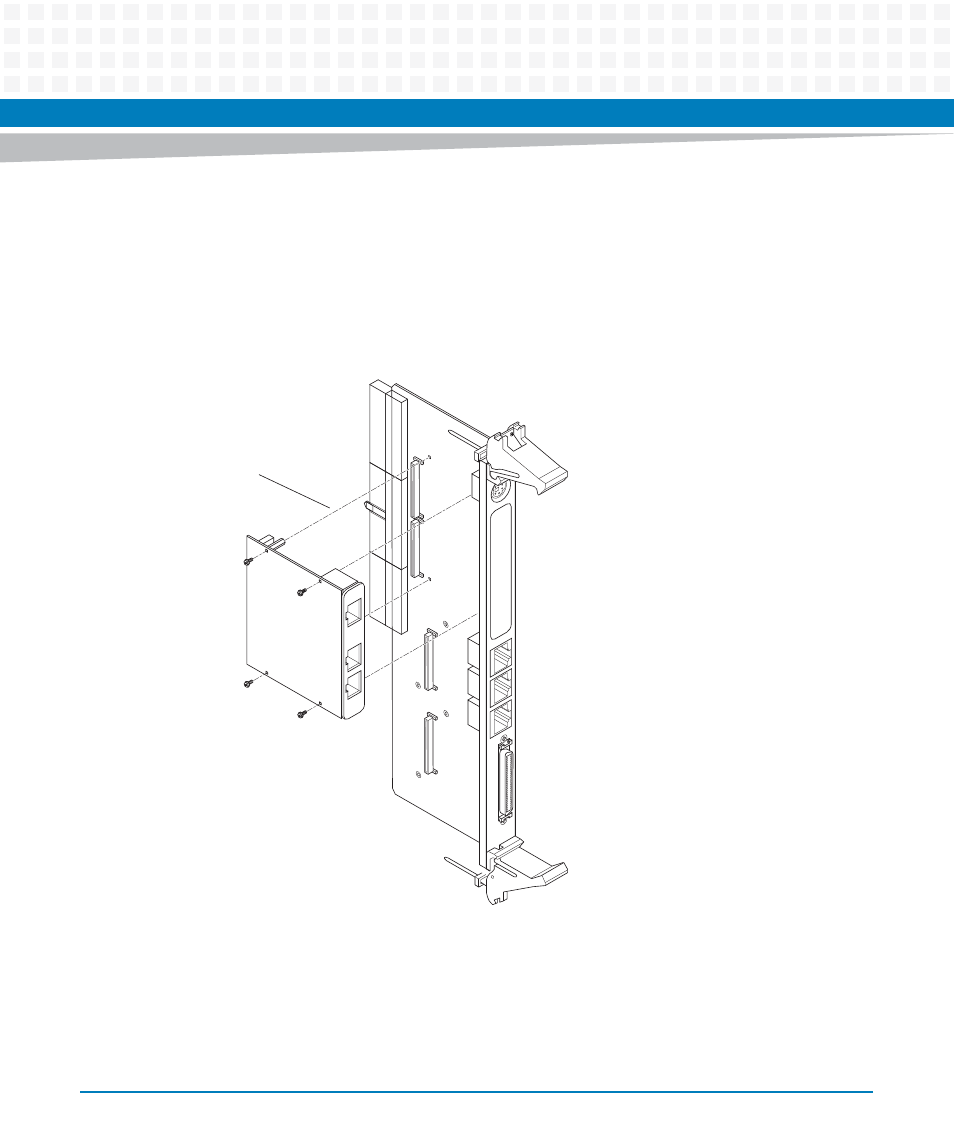

Refer to the following figure for proper screw/board alignment. The example below
may not accurately represent your
MVME721ET
.
Figure 5-5
Installing the PIM
PIM Alignment
