Hardware Preparation and Installation
MVME4100ET Single Board Computer Installation and Use (6806800K76F) 32
The MVME4100ET provides software control over most options. By setting bits in control
registers after installing the module in a system, you can modify its configuration. The
MVME4100ET control registers are described in the MVME4100ET Programmer’s Reference.
Prior to installing PMC modules on the MVME4100ET base board, ensure that all switches that
are user configurable are set properly. To do this, refer to
Figure 2-3 or the board itself, for the
location of specific switches and set the switches according to the following descriptions.

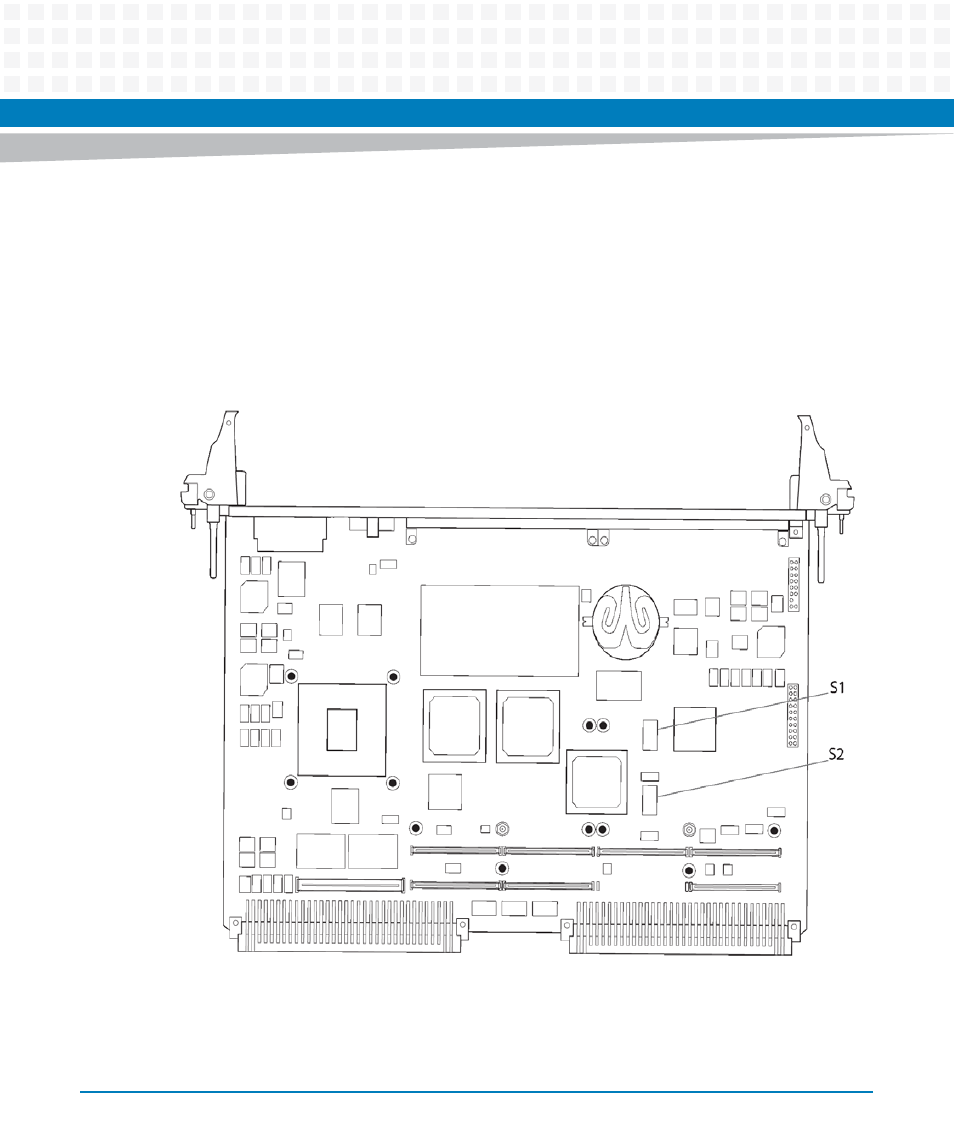

Figure 2-3 Switch Locations
