Hardware Preparation and Installation
MVME4100ET Single Board Computer Installation and Use (6806800K76F) 35
in the off position when installed in a 5-row chassis in order to get the correct address from the
P1 connector. This switch also includes the SCON control switches. More information regarding
GA address switch assignments can be found in the MVME4100ET Single Board Computer
Programmer’s Reference.

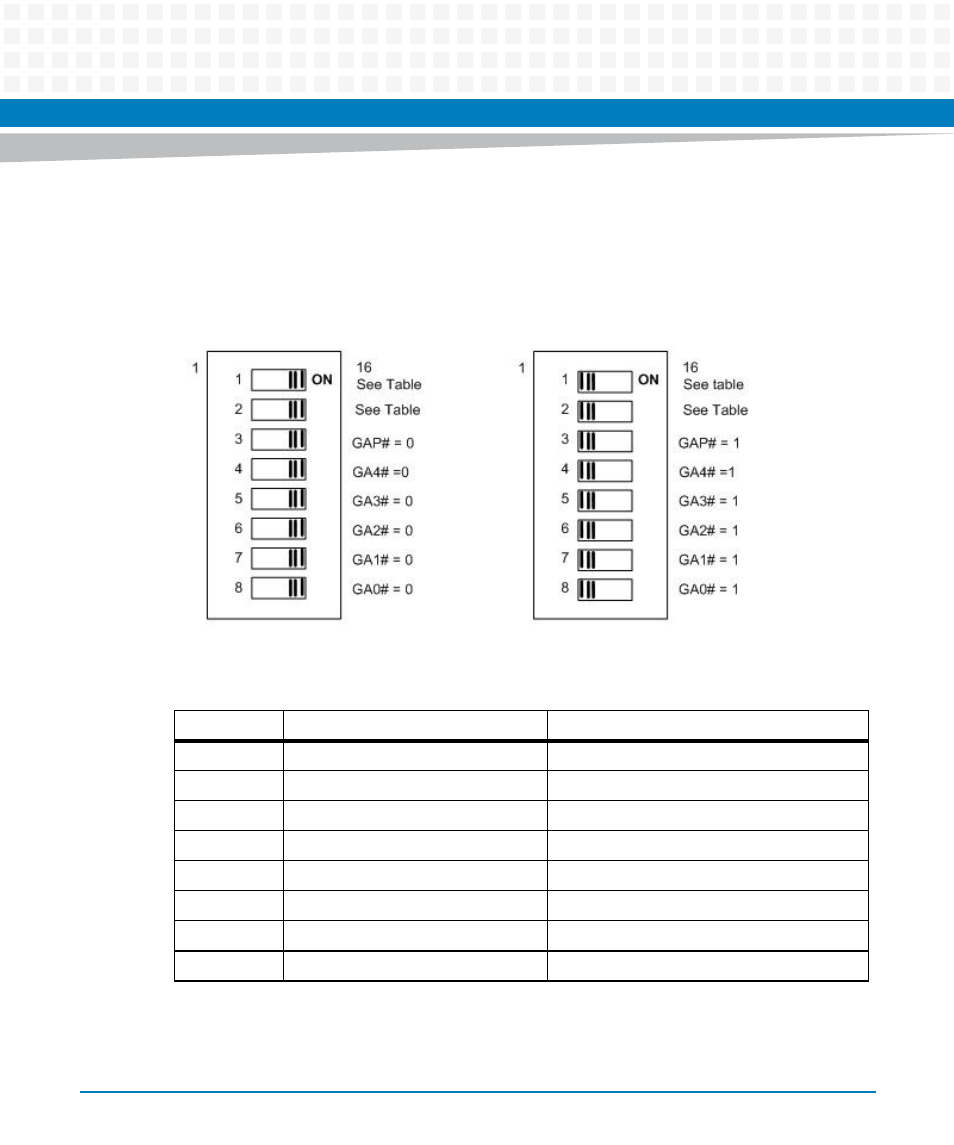

Figure 2-5 Geographical Address Switch Position
Table 2-6 Geographical Address Switch Settings
Position Function Default
S2-1 VME SCON Auto 1
1. The VME SCON MAN switch is OFF to select Auto-SCON mode. The switch is ON to select manual SCON mode which
works in conjunction with the VME SCON SEL switch.
Auto-SCON
S2-2 VME SCON SEL 2 Non-SCON
S2-3 GAP 1
S2-4 GA4 1
S2-5 GA3 1
S2-6 GA2 1
S2-7 GA1 1
S2-8 GA0 1
