Transition Module
MVME4100ET Single Board Computer Installation and Use (6806800K76F)
84
PMC I/O (PIM) connector J10 routes only power and ground from VME P2 connector. There are
no host I/O signals on this connector. The MVME4100ET routes PMC I/O from J14 of PMC Slot
1 to VME P2 rows A and C. The MVME721ET routes these signals (pin-for-pin) from VME P2 to
PMC I/O module connector J14.

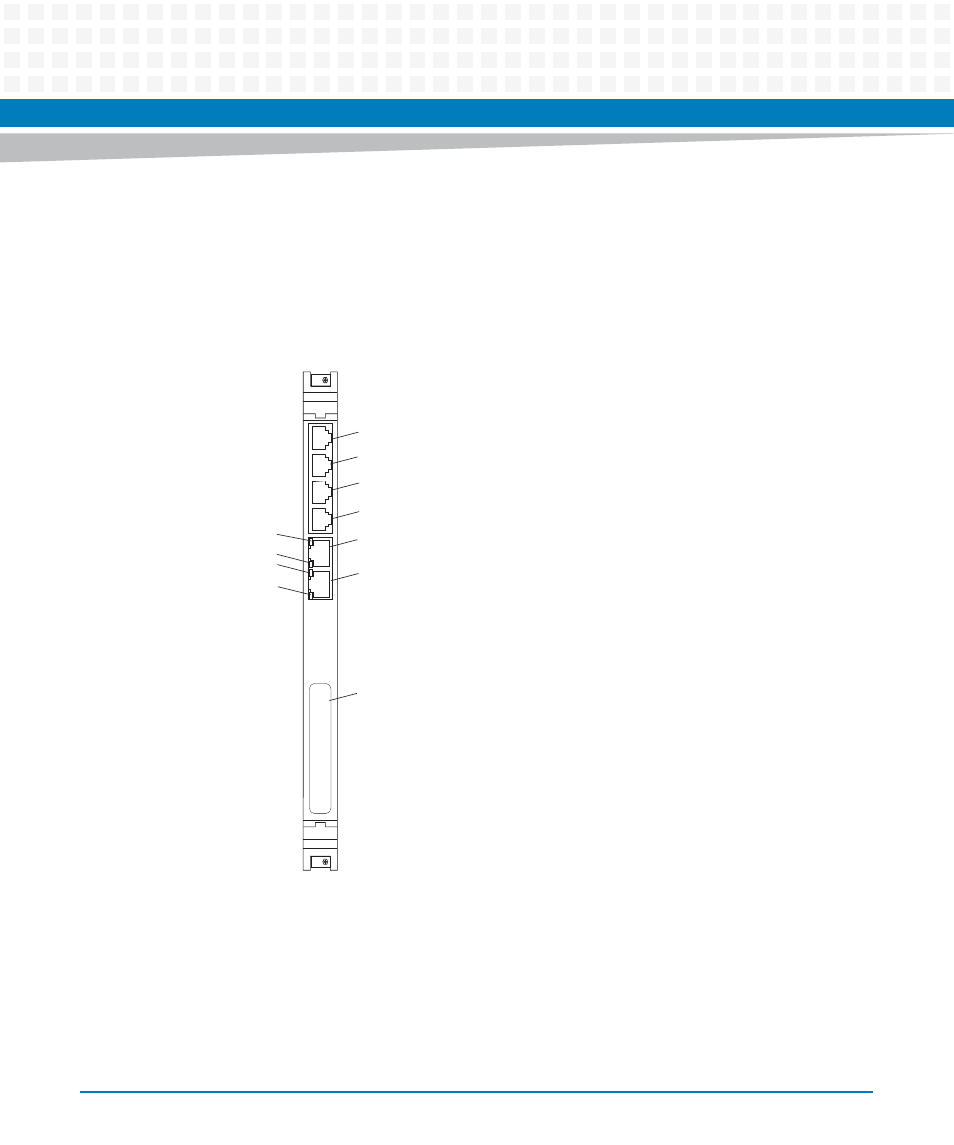

Figure 5-4
Rear Panel Connectors and LEDs
COM2
COM3
COM4
COM5
G Enet 1
SPEED
ACT
G Enet 2
SPEED
ACT
PMC Site
