Hardware Preparation and Installation

MVME4100ET Single Board Computer Installation and Use (6806800K76F)

33

The following sections describe the on-board switches and their configurations for the
MVME4100ET.

2.4.1

SMT Configuration Switch, S1

An 8-position SMT configuration switch is located on the MVME4100ET to control the flash
bank write-protect, select the flash boot image, and control the safe start ENV settings. The
default setting on all switch positions is OFF and is indicated by brackets in

Table 2-5

.

Board Malfunction
Switches marked as "reserved" might carry production-related functions and can cause the
board to malfunction if their setting is changed.
Do not change settings of switches marked as "reserved". The setting of switches which are
not marked as "reserved" has to be checked and changed before board installation.

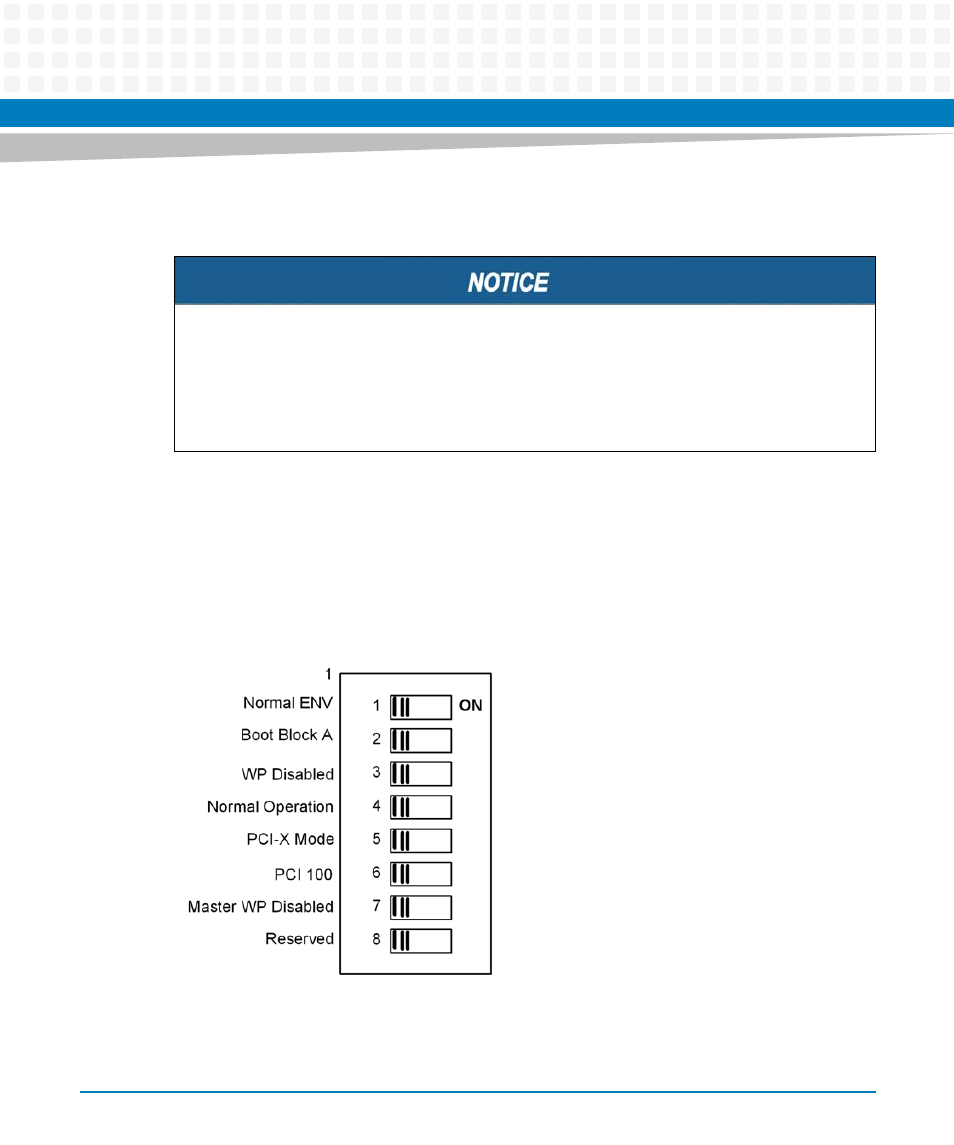

Figure 2-4

SMT Configuration Switch Position
