5.4

SEEPROM Address Switch, S1

A 4-position SMT configuration switch is located on the MVME721ET transition module to set
the device address of the RTM serial EEPROM device and to control its write protection (if SW4
is OFF, write is enabled). The switch settings are defined in the following table. To see the
switch location, refer to

Figure 5-1 on page 80

.

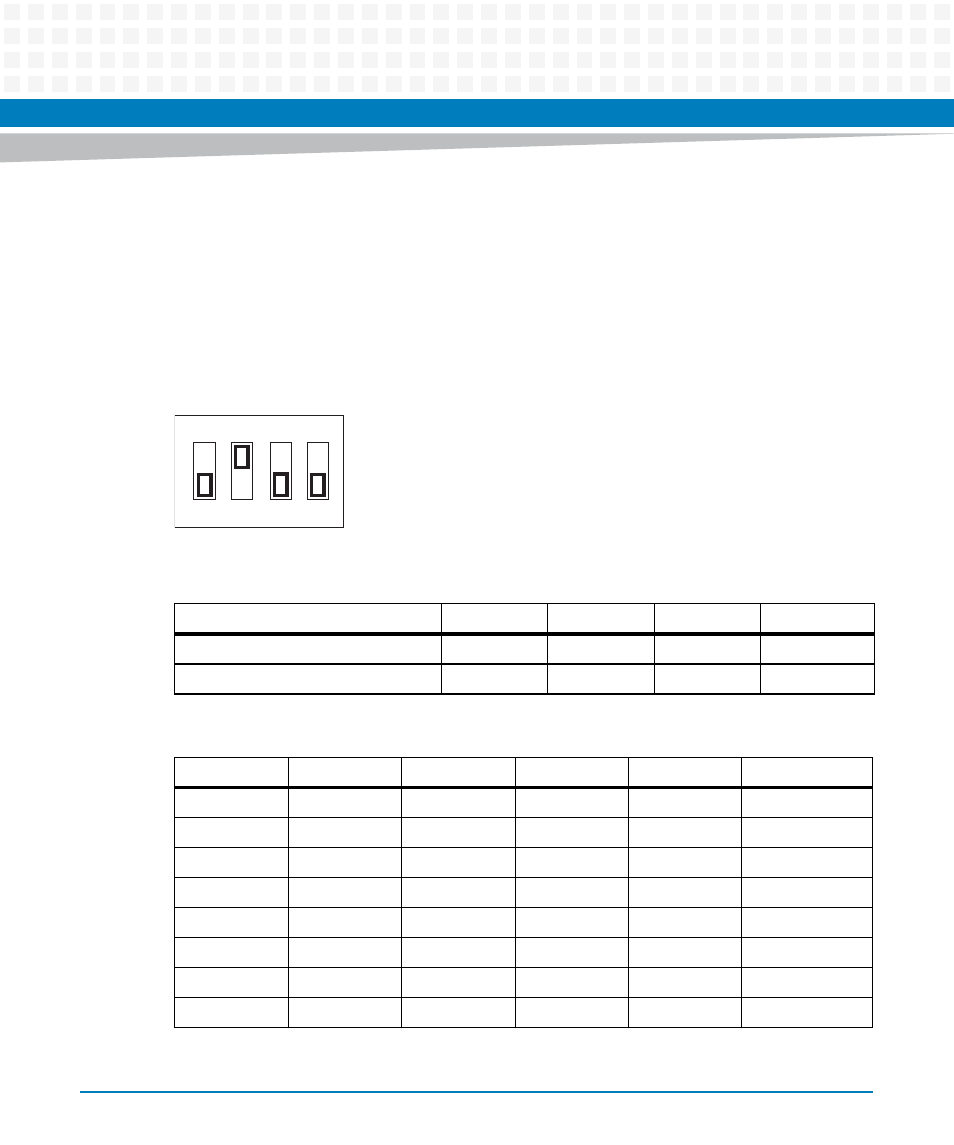

Figure 5-3

S1 Switch Positions

Table 5-2 SEEPROM Address Switch Assignments (RTM)

Position

SW4

SW3

SW2

SW1

Function

WP

A(2)

A(1)

A(0)

Default (OFF)

0

1

1

1

Table 5-3 Switch Settings and Device Addresses

SW4

SW3

SW2

SW1

A(2:0)

Device Address

OFF

ON

ON

ON

000

$A0

OFF

ON

ON

OFF

001

$A2

OFF

ON

OFF

ON

010

$A4

OFF

ON

OFF

OFF

011

$A6

OFF

OFF

ON

ON

100

$A8

OFF

OFF

ON

OFF

101

$AA (default)

OFF

OFF

OFF

ON

110

$AC

OFF

OFF

OFF

OFF

111

$AE

ON

1

2

3

4
