Hardware Preparation and Installation

MVME4100ET Single Board Computer Installation and Use (6806800K76F)

39

5. Insert the four short phillips-head screws (provided with the PMC) through the

holes on the bottom side of the

MVME4100ET

and the PMC front bezel and into rear

standoffs.

6. Tighten the screws. Refer to

Figure 2-6 on page 39

.

7. Reinstall the

MVME4100ET

assembly in its proper card slot.

Be sure the module is well seated in the backplane connectors. Do not damage or
bend connector pins.

8. If the PMC module was installed in a non-hot swap chassis, replace the chassis or

system cover(s), reconnect the system to the AC or DC power source and turn the
equipment power on.

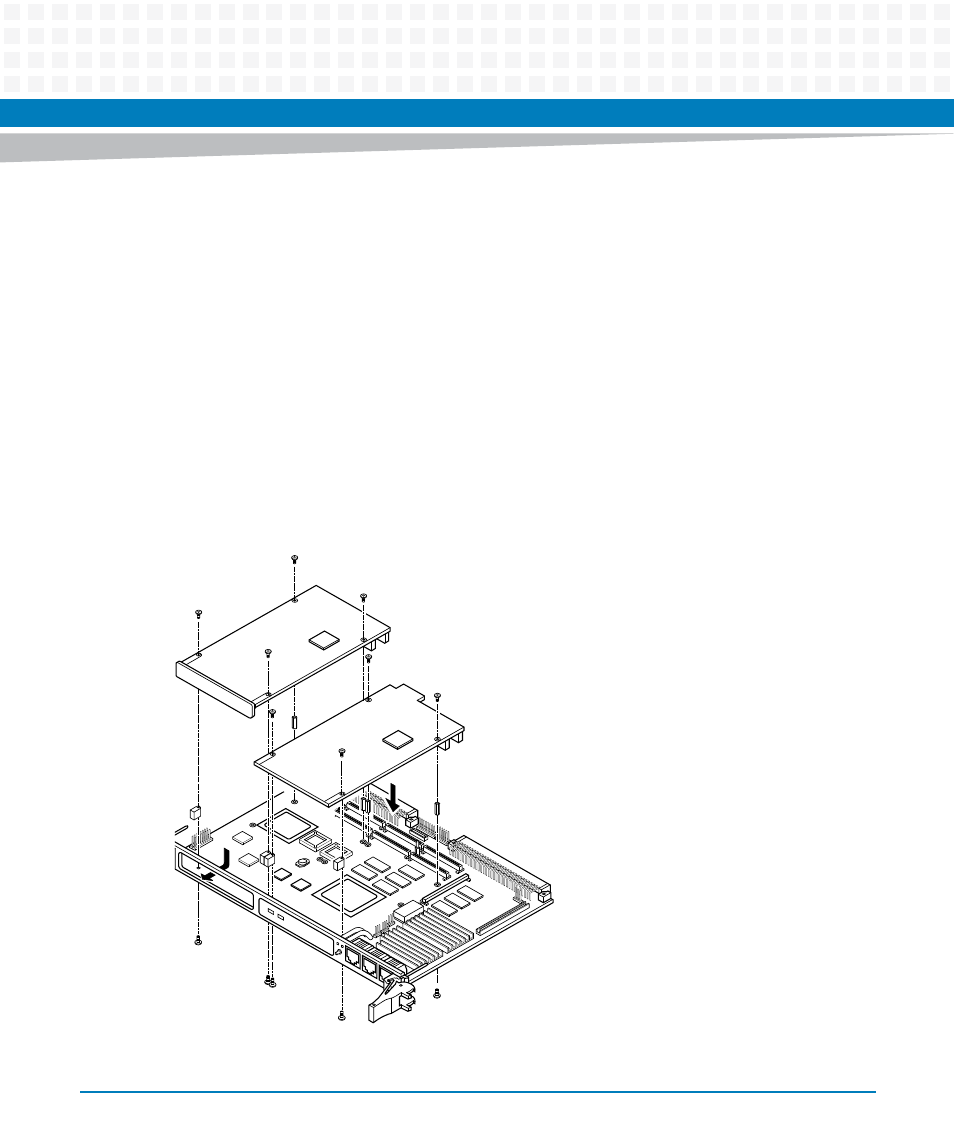

Figure 2-6

Typical Placement of a PMC Module on a VME Module
