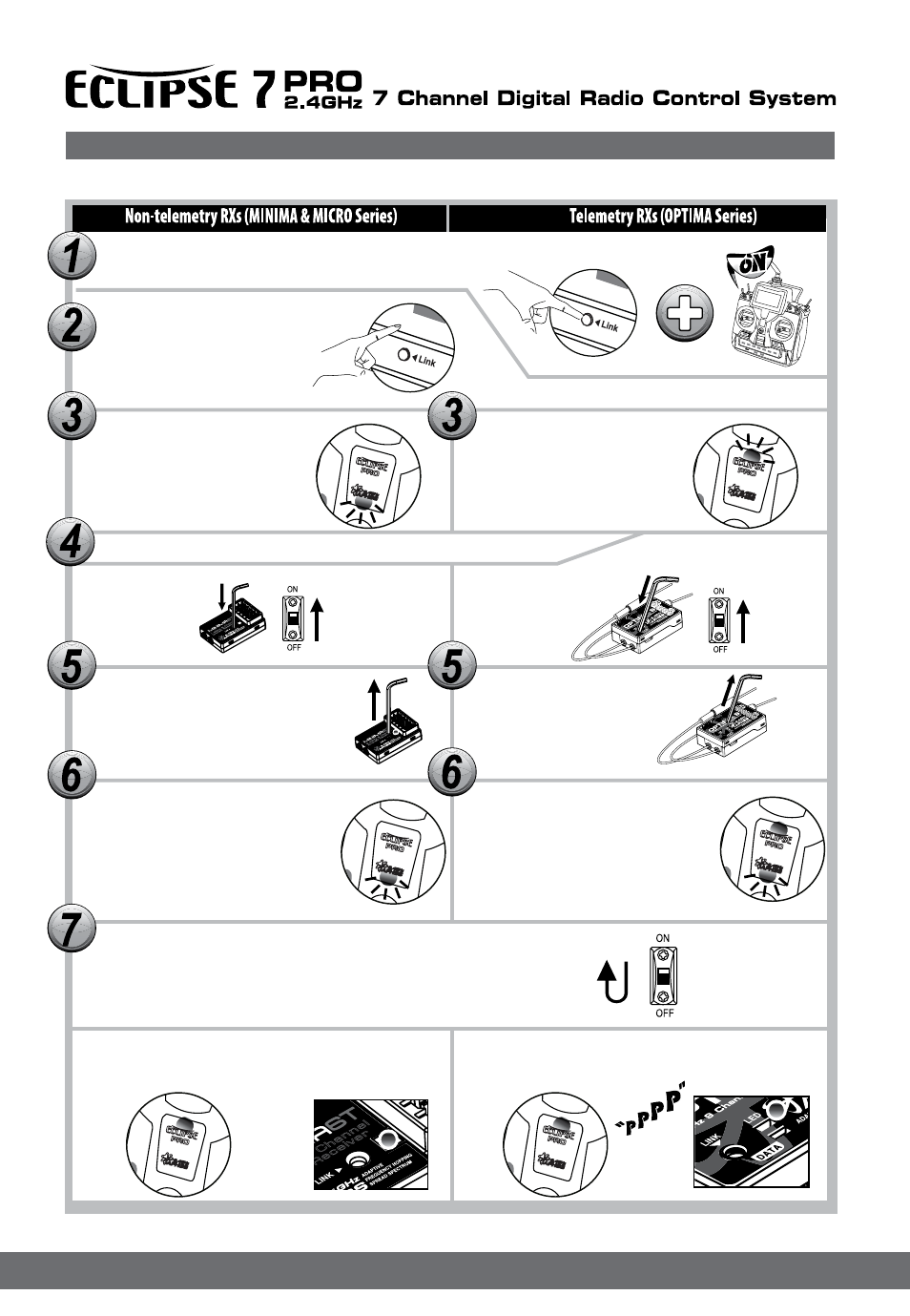

Set-up Use of the Hitec 2.4GHz System
Press and hold the Link button, and turn on the transmitter.
To save the setting, please reboot (Turn Off & On) both transmitter and
receiver.
When they are turned on again, RED LED Transmitter
and BLUE LED on the receiver will glow steady.
When they are turned on again, you can hear continuous
beep sound. Both RED LEDs transmitterand receiver will
glow steady in normal status.
Check if BLUE LED is blinking.
If RED LED is blinking, press
the link button for 2 sec., so
that LED changes to the BLUE.
Both RED, BLUE LEDs will blink rapidly
to find the transmitter signal.
Release the link button when
RED LED on receiver glows steady.
Check if RED LED is blinking.
If BLUE LED is blinking,
press the link button for 2 sec.,
so that LED changes to the RED.
Release the link button.
Release the link button.
When the link is completed, BLUE LED
Transmitter will blink.
When the link is completed, BLUE LED
Transmitter will blink while RED LED
Transmitter glows steady.
Press and hold the link button on Receiver and turn on the power.
2. 4G Hz 6 C ha nn el
Ai rc ra ft R ec eiv er
ID-Setup A.K.A, Link or Bind
2. 4G Hz 6 C ha nn el
Ai rc ra ft R ec eiv er
